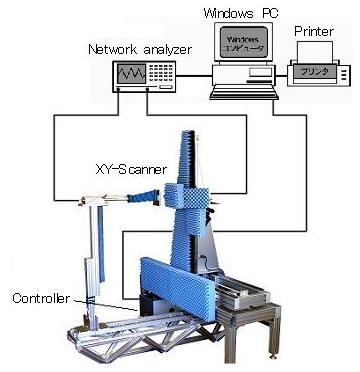

Near-Field Antenna Measurement System

Model No. ANM01

It measures in near-field, and converts the result into far-field and aperture distribution.

Features:
‧Substantial contents in analysis and user interface.
‧Fast measurement
ex.) 256x256 points : 30 minutes
(Results depend on the performance of your vector network analyzer.)

Model No.

Name Specification Model No.
XY-Scanner / Controller Scanning : Plane scanning
Scanning zone : 1.2m×1.2m
Positional precision : 0.1mm rms
Position setting resolving power : 0.01mm
External form dimensions : 2m(W)×2m(H)×2m(D)
Power supply : 80~120VAC, 500W
XY-20
Analytical software Windows PC
CPU : Pentium 4 above
Memory : min. 512MB
Analytical item : Far field, Open distribution
Display form : 3D display, XY display, Contour line display
DMP-142081111-05
Metallic waveguide probe antenna *Please refer to our website.
Windows PC
Vector network analyzer
Option
Option

The metallic waveguide probe antenna

Frequency(GHz) Waveguide standard Flange type ( square ) → Model No. Flange type ( circle ) → Model No. Standard length (mm)
1.7 - 2.6 WR - 430 UG437A / U PA430S     300
2.6 - 3.95 WR - 284 UG53 / U PA284S     300
3.95 - 5.85 WR - 187 UG149A / U PA187S     250
5.85 - 8.2 WR - 137 UG344 / U PA137S     200
8.2 - 12.4 WR - 90 UG39 / U PA90S     120
12.4 - 18 WR - 62 UG419 / U PA62S     120
18 - 26.5 WR - 42 UG595 / U PA42S UG425 / U PA42R 120
26.5 - 40 WR - 28 UG599 / U PA28S 381 / U PA28R 120
33 - 50 WR - 22     383 / U PA22R 120
40 - 60 WR - 19     383 / U PA19R 120
50 - 75 WR - 15     385 / U PA15R 120
60 - 90 WR - 12     387 / U PA12R 120
75 - 110 WR - 10     387 / U PA10R 120
90 - 140 WR - 8     387 / U PA8R 120

Data example

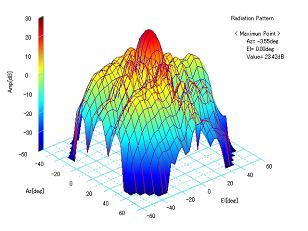

3D display (Example of far field)

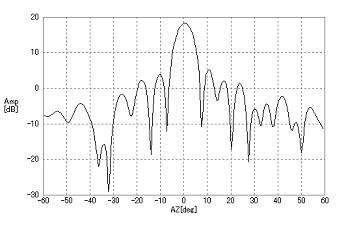

XY-display (Example of far field)

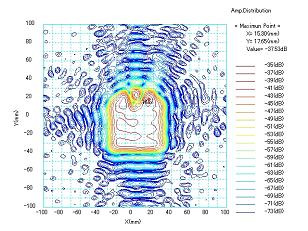

Contour line display (Example of opening distribution)
