Metal waveguide probe antenna
Model No. ant61
This is a rectangular metal waveguide with a probe antenna attached to the tip.
Our products are available in a variety of frequencies.
Note: In ordering, we provide the product in standard length unless otherwise specified.
【Related Contents】
👉
Products Line up of KEYCOM's Antenna Series

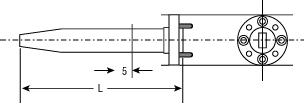

Product Image
Ordering Information (Please inform us of your requirement)
Flange Type(Square)
| Part No. |
Frequency(GHz) |
Waveguide Standard |
L(mm)(Standard Length) |
| PA430S |
CPR430F |
1.7-2.6 |
WR-430 |
300 |
| PA284S |
UG53/U |
2.6-3.99 |
WR-284 |
| PA187S |
UG149A/U |
3.95-5.85 |
WR-187 |
200 |
| PA159S |
CMR159 |
4.9-7.05 |
WR-159 |
| PA137S |
UG344/U |
5.85-8.2 |
WR-137 |
| PA90S |
UG39/U |
8.2-12.4 |
WR-90 |
120 |
| PA62S |
UG419/U |
12.4-18 |
WR-62 |
| PA42S |
UG595/U |
18-26.5 |
WR-42 |
| PA34S |
UG599/U |
22-33 |
WR-34 |
| PA28S |
UG599/U |
26.5-40 |
WR-28 |
Flange Type(Circular)
| Part No. |
Frequency(GHz) |
Waveguide Standard |
L(mm)(Standard Length) |
| PA42R |
UG425/U |
18-26.5 |
WR-42 |
120 |
| PA28R |
UG381/U |
26.5-40 |
WR-28 |
| PA22R |
UG383/U |
33-50 |
WR-22 |
| PA19R |
40-60 |
WR-19 |
| PA15R |
UG385/U |
50-75 |
WR-15 |
| PA12R |
UG387/U |
60-90 |
WR-12 |
| PA10R |
75-110 |
WR-10 |
| PA8R |
90-140 |
WR-8 |
| PA6R |
110-170 |
WR-6 |
50.8 |
| PA5R |
140-220 |
WR-5 |
| PA4R |
170-260 |
WR-4 |
| PA3R |
220-325 |
WR-3 |
| PF2R |
325- |
WR-2 |
Flange Type(FXR)
| Part No. |
Frequency(GHz) |
Waveguide Standard |
L(mm)(Standard Length) |
| PA8F |
UG387/U |
110-170 |
WR-6 |
50.8 |
| PA6F |
140-220 |
WR-5 |
| PA5F |
170-260 |
WR-4 |
| PA4F |
220-325 |
WR-3 |
| PA3F |
325- |
WR-2 |
