EMC shield tube (for electromagnetic protection of wire harness)

Model No. ema05139060415-02
Feature

After setting many electric wires in a device, enwrap a harness which is banded together to increase electromagnetic shield effect.
According to a condition of using environment, you can choose combination from : 5 kinds of base materials of tube x 3 kinds of connect type x 5 kinds of additional shield.

Order information : Part numbers

Part number example)
G F M2 - 040
Base material of tube Connect type Additional shield   Size

Parts number list

Part number Shield effect Flexibility
CPNO-*** What is shown in higher place, its effectiveness is higher What is shown in lower place, its flexibility is higher
EMNO-***
EPNO-***
GBM2-***
GBNO-***
GFM2-***
GFMO-***
GMMF-***
GMM2-***
GMNO-***
GPF2-***
GPM2-***
GPNO-***
JFF2-***
JBNO-***
VFM2-***
VMM2-***
VMF2-***
VPM4-***
VPM2-***

Mark List

Base material of EMC tube Connect type Additional shield Size
Mark Material Mark Material Mark Material Mark
C PVC+AL70μ P Plastic NO Nothing 030 φ30mm
E PVC+AL20μ M Velcro M2 Metal mesh double 040 φ40mm
G PVC+PET+AL10μ B Button MF Metal mesh double+Conductive fiber double+PET+Ni+Cu+Ni 050 φ50mm
J PVC+Conductive fiber F Fastener F2 Conductive fiber double+PET+Ni+Cu+Ni 100 φ100mm
V PVC

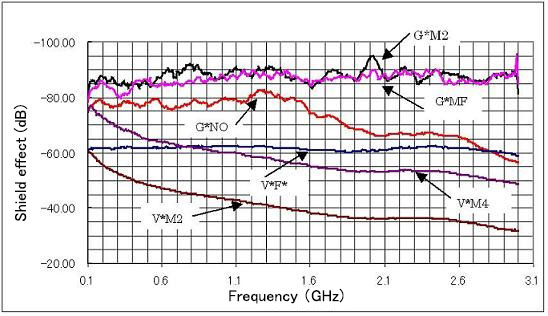

Shield effect measurement data (measured according to ASTM D 4935)
