Active-type radar evaluation (measurement) system

Model No. RAT03

【Related Contents】

👉 Radar Systems / Millimeter Wave Radar / Micro Wave Radar Development and Manufacture

Outline

It is possible to measure the distance accuracy, the power at the target point, and the horizontal and vertical angular accuracy of small-scale radars; for example, radars used for the prevention of accidents in cars.

Characteristics

The supersonic wave DeLay line is used for the DeLay line.
1) Even the target of 110m can be measured.
2) The change of the distance between 0°~40° is ±3% or less of the range.

Configurations




Model No.

Radar fixation stand

Model No. The horizontal The under
RAF-01 ±5°, 0.01°pitch ±5°, 0.01°pitch With a controller,
It is ready to consult about the size of the radar fixation part.

Horn antenna

Model No.
RH-12R 60~90GHz 23dBi

Attention ) The antenna with low reflectivity such as the lens horn antennas can be prepared by the option.

Radar standard target

Corner reflector
KRTC - 76.5 - 28.8m2
    Center frequency (GHz)   Radar cross section

Electric wave dark box

Model No.

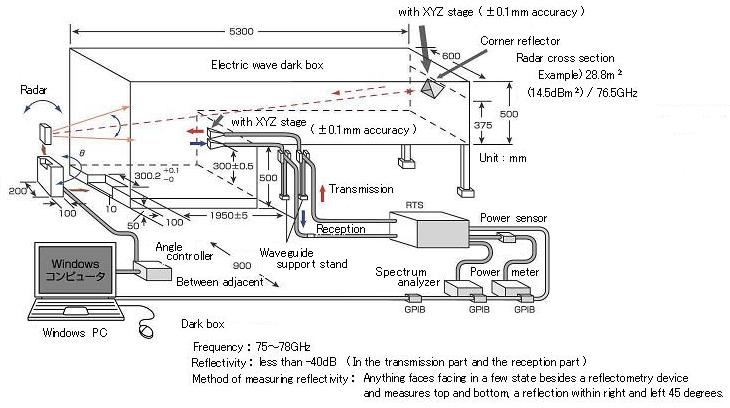

EWAC-5m-01 The one of block diagram

Software

Model No.
DMP-45 A distance, power, and the top and bottom and a right and left angle are recorded with Windows-csv.

GPIB cable

It is ready to consult about the power sensor and the power meter.

You will have to prepare the Windows personal computer and the printer.
