Moving Antenna System for a test of detection radar of front running cars changing lanes
ME7220J-04

Model No. RAT19
Feature

This is a moving antenna system to test radars to detect changing lanes of front running cars indoor. You need moving target beside this system.

Specifications

1. A user can move the facility by himself
2. Target : 3pcs

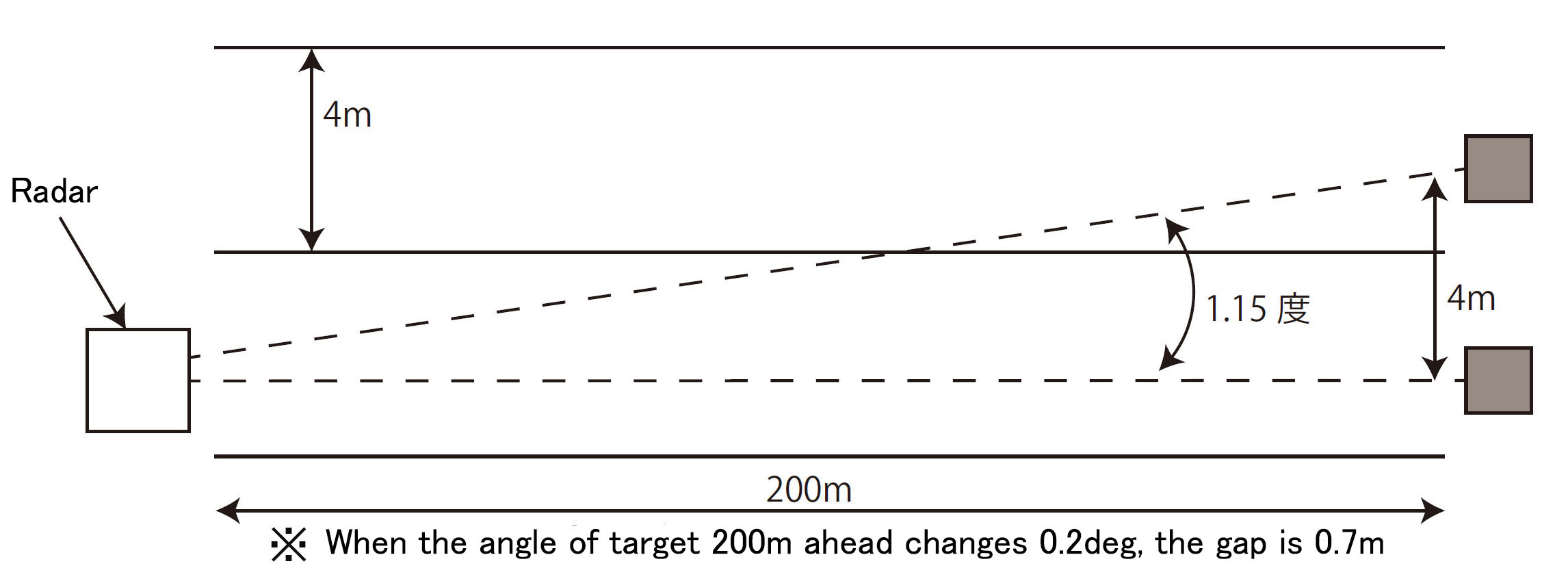

3. Angular resolution : 0.2deg



4. Opening angle : Rigth 52° / left52° from the center (moving speed : 52° / less than 2sec)
5. Capable of 2 lanes simulation
6. Minimum distance : L1 + L2 = 1.7m + 2m = 3.7m
 L2 : minimum disntance within the moving target
7. Interface : CAN
8. Option : We build requested systems by showing positions of front running cars by this method and distance gap to actual radars on screen etc..

Configuration

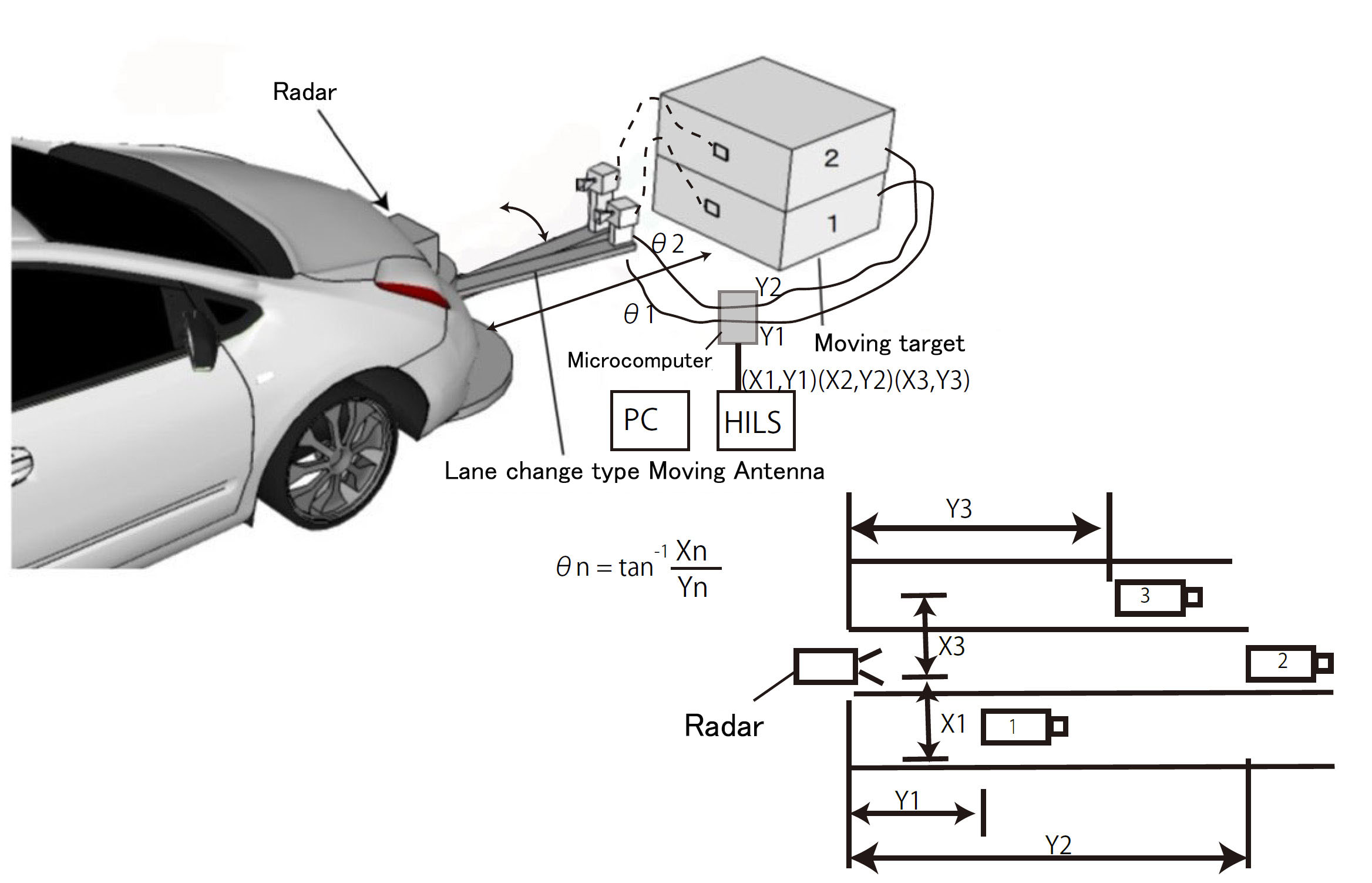

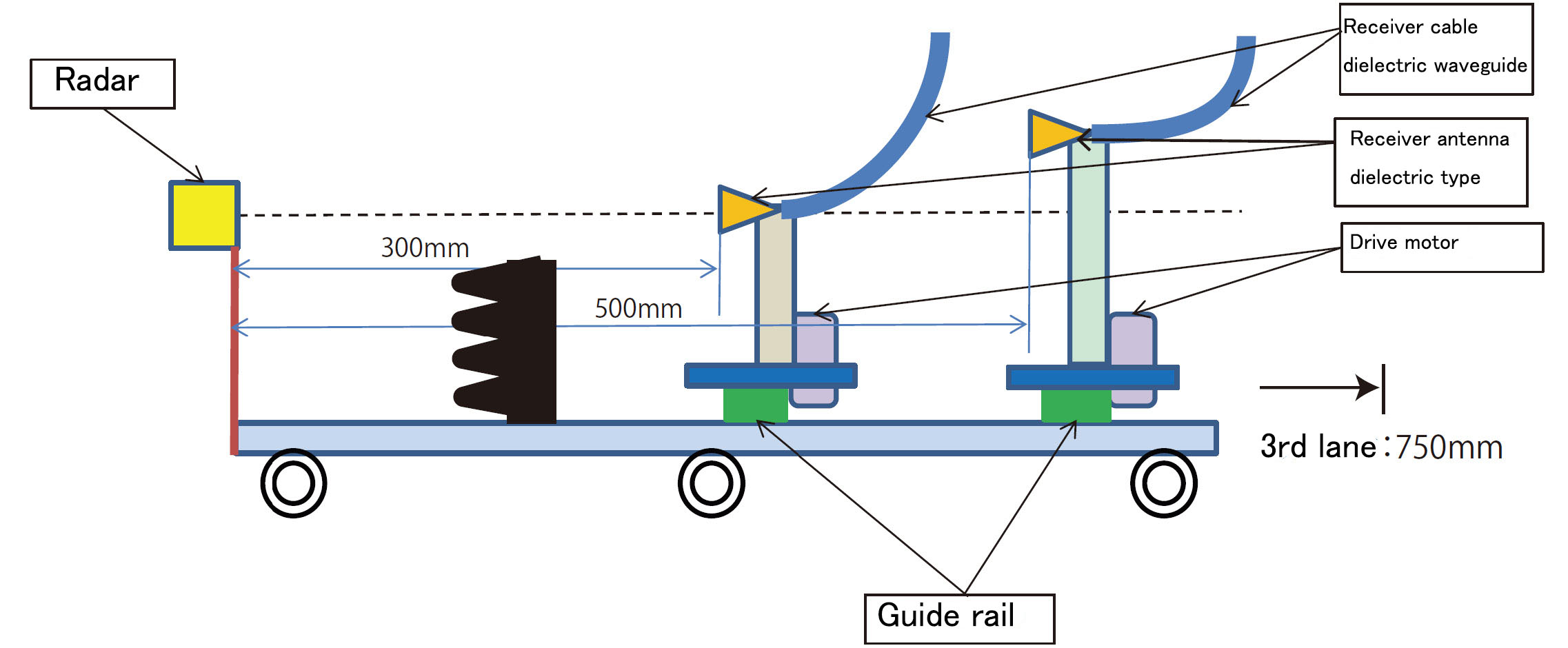

上面図 側面図
  Note : The attenuation data of the reflection of a car running in front ofthe car can be processed.

Features

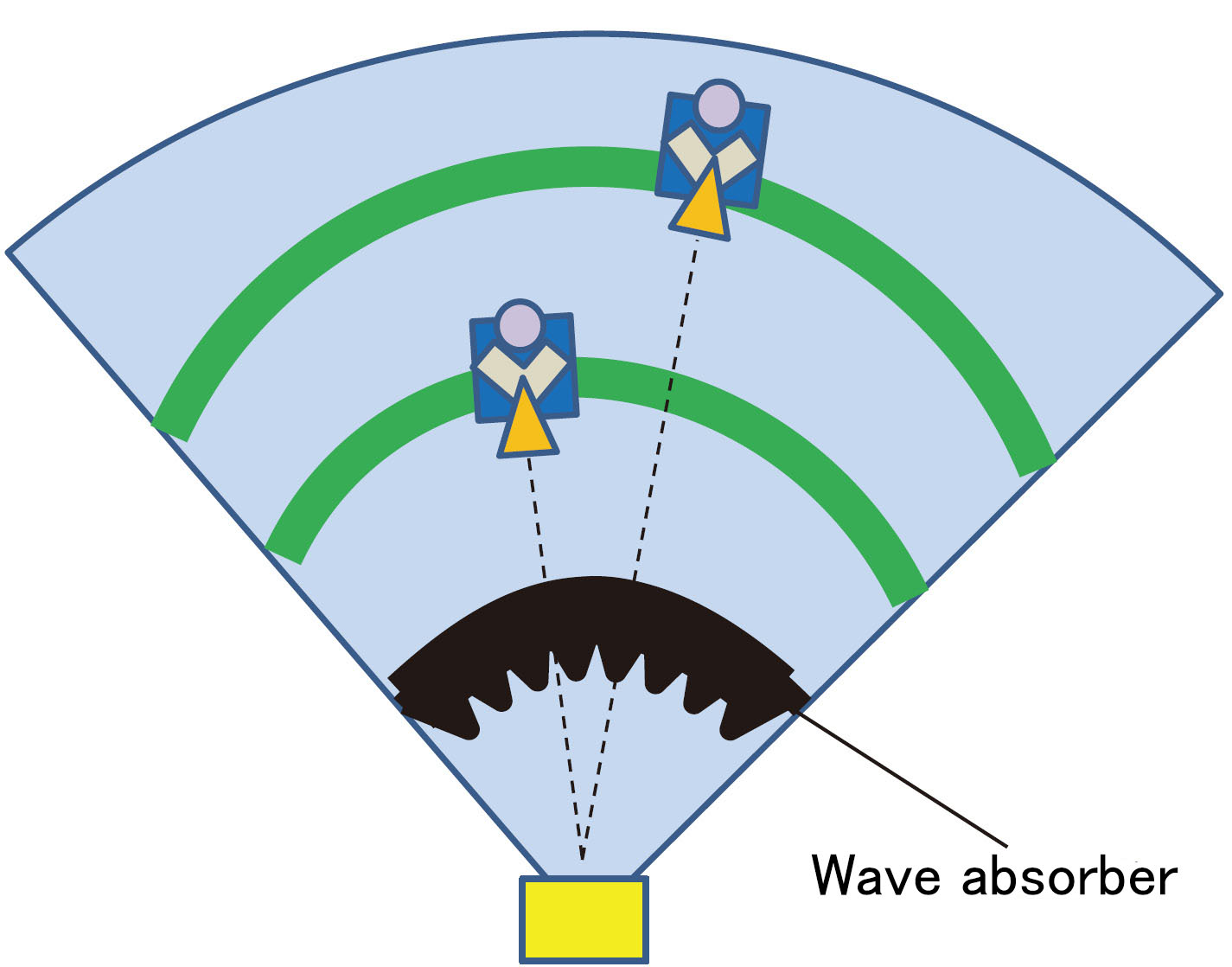

・ Both antenna and waveguide are dielectric, and there is no reflection from them.
・ Minimum distance : 3.7m
・ Sweeping to left and right full angle 104°
・ Do not synchronize with HILS at start-up.
・ Optional operation is available such as lowering the gain at the same time of crossing.
・ Realizing the slip through of the next lane.
