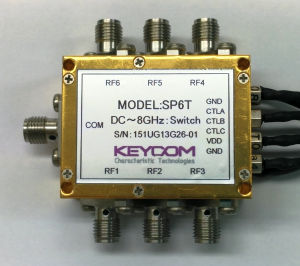

DC-7GHz SP6T Switch

Model No. SWI02

DC-7GHz SP6T switch module,operating with +5V single power supply.
The control voltage operates in the range of +2V-+5V / 0V.
Insertion loss is -2.8dB @ 10GHz and -4.5dB MAX @ 7GHz.

Parts No : SP6T-DC-7GHz

【Related Contents】
👉 Products Line-up of Milliler wave & Microwave Components / Devices
👉 Products Line-up of Switch

Specifications

No. Item Specification Remark
1 Frequency range DC~7GHz
2 Switch type Single Pole 6 Throw
3 Insertion loss -4.5dB MAX   @ 7GHz -2.8dB @ 4GHz
4 Isolation -43dB MIN  @ 7GHz -50dB @ 4GHz
5 RF power input P1dB=+23dBm   MAX +26dBm
6 Control voltage Vcont.

Low : 0~+0.8Vdc 5μA Typical
High : +2~+5Vdc 25μA Typical


7 Switching operation Control input Signal path state
A B C RFCOM to :
High Low Low RF1
Low High Low RF2
High High Low RF3
Low Low High RF4
High Low High RF5
Low High High RF6
8 Power supply +5V,   below 5mA
9 Switching speed Tr50ns tRISE, tFALL(10/90% RF)
Tf150ns, tON, tOFF (50% CTL to 10/90% RF)

10 RF connectors COM,RF1,RF2,RF3,RF4,RF5,RF6 all APC2.9(f)
11 Terminal insulator color Green:+5V White:Vcont. None:GND
12 Dimensions

L30 × W40 × D16 mm
L49.3 × W53 × D16 mm
Mounting holeΦ2.2mm、L25.8×W37mm

Excl. connectors
Incl. connectors
-

13 Weight 122 g
