Millimeterwave / Microwave Systems

Model No. XMS

Systems Overview

  Millimeter wave transmitter/receiver system [SYS12]   2-D Sensor Controller [SYS16]
  Transmitter and receiver for high-speed digital transmission with following features.
  • Antenna beam width of the receiver is large enough for transmitter to move a lot.
  • Easy to handle, no special operation is required.
  • Small and light.

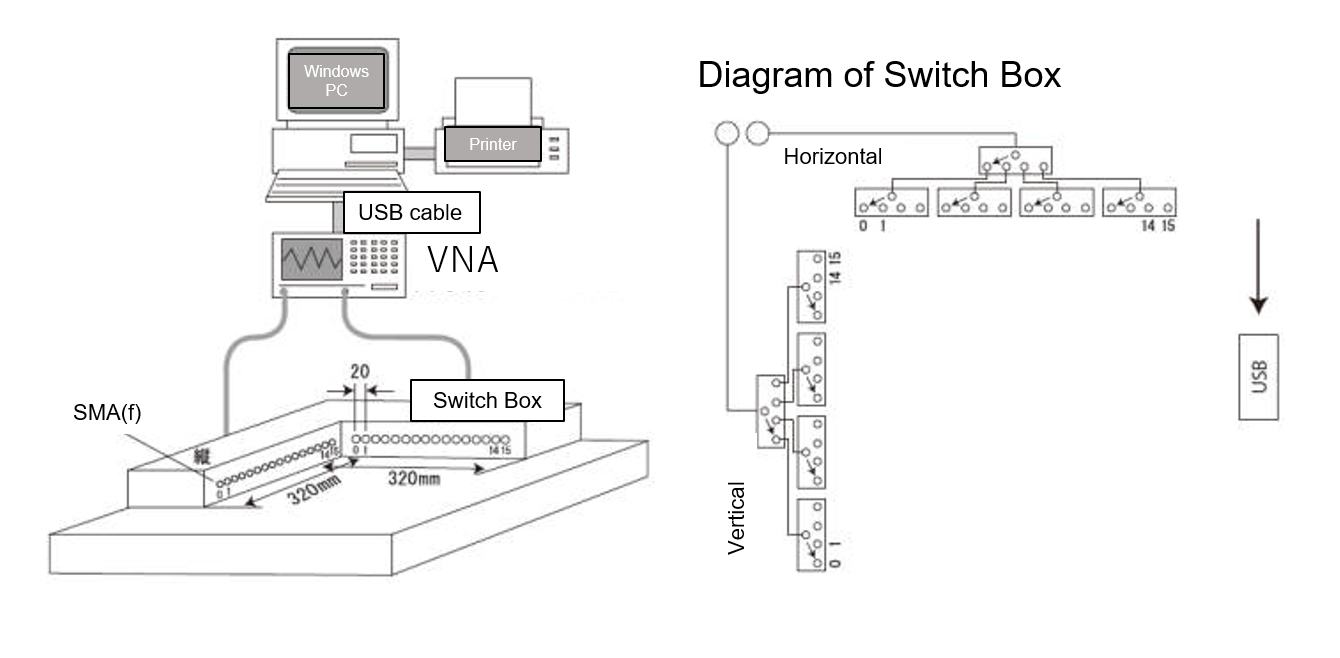

  Two-dimensional sensor/controller for measuring transmission characteristics of multiple samples.
It is connected to a vector network analyzer for measurement.

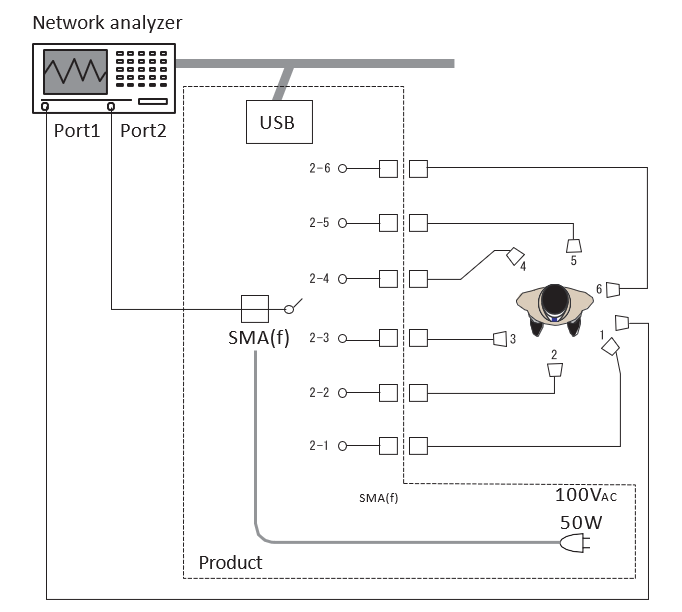

  Multi-port Test Set [SYS14]   Millimeter Wave Scalar Network Analyzer [SYS11]
  Multi-port switching can be done via GPIB.   Since a synthesized sweeper is used as the signal source, frequency accuracy is very high.
It is also computer-controlled, so it can be processed at high speed with easy operation.

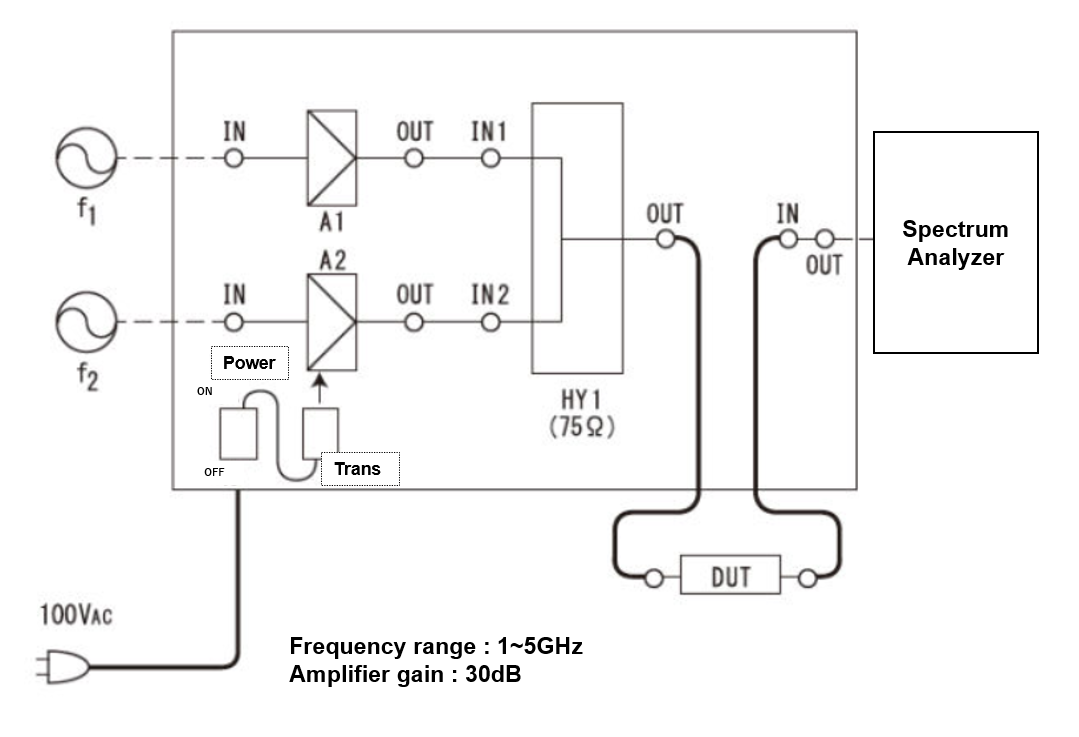

  Inter Modulation(IM) Test Equipment [SYS15]
  It can accurately measure nonlinear intermodulation (IM), which causes problem in wideband mobile radio systems. intermodulation), which is a problem in broadband mobile radio systems
