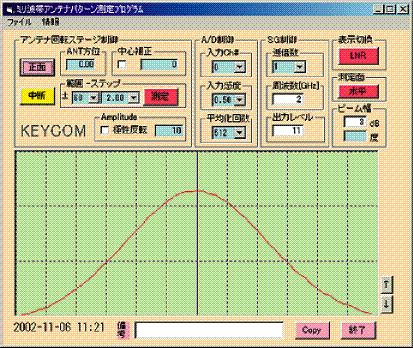

Antenna pattern profile measurement program

Model No. ant08002020622-09

Antenna pattern software is for antenna patterns by rotating antennas in azimuth and vertical directions.


Rotation step 0.04 ~ 10.0°
Manual adjustment of direction Available for side to side direction
Center adjustment of direction A center of patterns is adjusted to 0° by data processing.
Frequency double input The final frequency is indicated for double input.
1 ~ 6 times.
Input data equation 1 ~ 128
Display Linear or Log. display
A mode: Pattern profile at fo
B mode: Frequency characteristics at 0°
Computer used DOS/V type
OS: Windows 98 or equivalent
RF equipment used Spectrum analyzer
Network analyzer
Synthesized sweeper + transmission part + reception part
