Automotive Bumper Evaluation System

Model No. BES-01

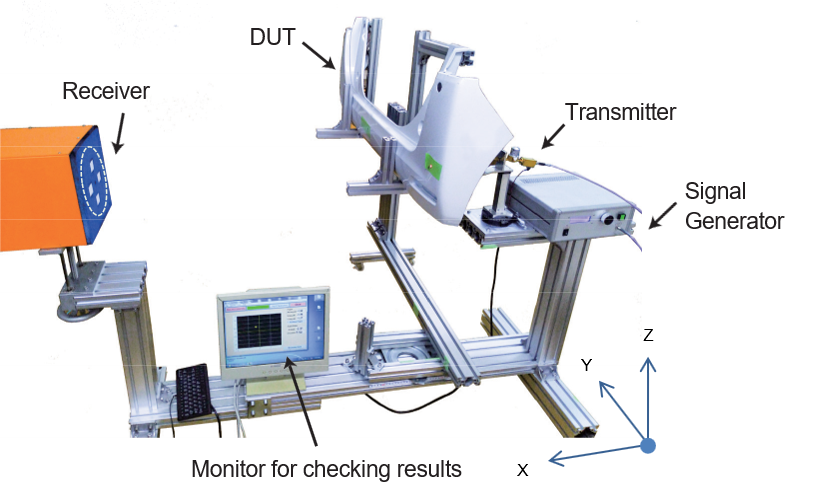

This system can measure transmission attenuation and beam tilt angle of large DUT, such as bumpers.
By using four receivers, transmission attenuation and beam tilt angle of the object under test can be measured.
DUT can be moved in X-direction, Y-direction Z-direction, and rotation around Z-direction also is possible, which allows measurement of transmission attenuation and beam tilt angle at any position.
Moreover, robot arm can also be used for measuring any precise position on entire bumper.

👉 If you are interested in evaluating Automotive Emblem(Millimeterwave compatible Emblem),Please check here

Configuration

Specificications

Items		Details
Measurement Frequency	Frequency Range	76.5GHz~79Ghz
DUT Movable Range	Longitudinal Direction_Stroke [X]	300mm
	Transverse Direction_Stroke [Y]	900mm
	Height Direction_Stroke [Z]	180mm
	Rotation Range of Height Direction Axis [Z]	0°～60°

Image of measurement with Robot Arm

Ordering Information

Please send us any questions, or detailed information e.g.,your requirement for testing via email, phone or online meeting.
Our sales representative will answer to your questions and propose an appropriate system to you.
