Bias-TEE For 18GHz

Model No. BYT01 : KDC-H20M18G-01

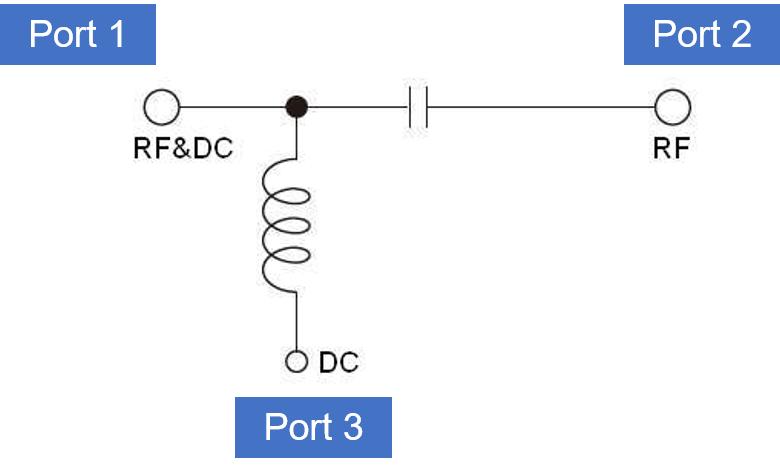

The S21 characteristic from RF port to RF&DC port is stable over a wide bandwidth.
Moreover, this is the first wideband Bias Tee which has realized DC port input of 1000mA(1A).
The lead time also is shorter than before.

【Related Products】
👉 Products Line-up of Bias-TEEs
👉 Products Line-up of Bias-TEE For Large Current

Remarkable performance of the product

＜note＞
If you use pulse signal, please ask us about the way to use and required specification.

Passage of the Pulse Signal
Pulse width, Frequency, Amphere, Voltage
RF Frequency

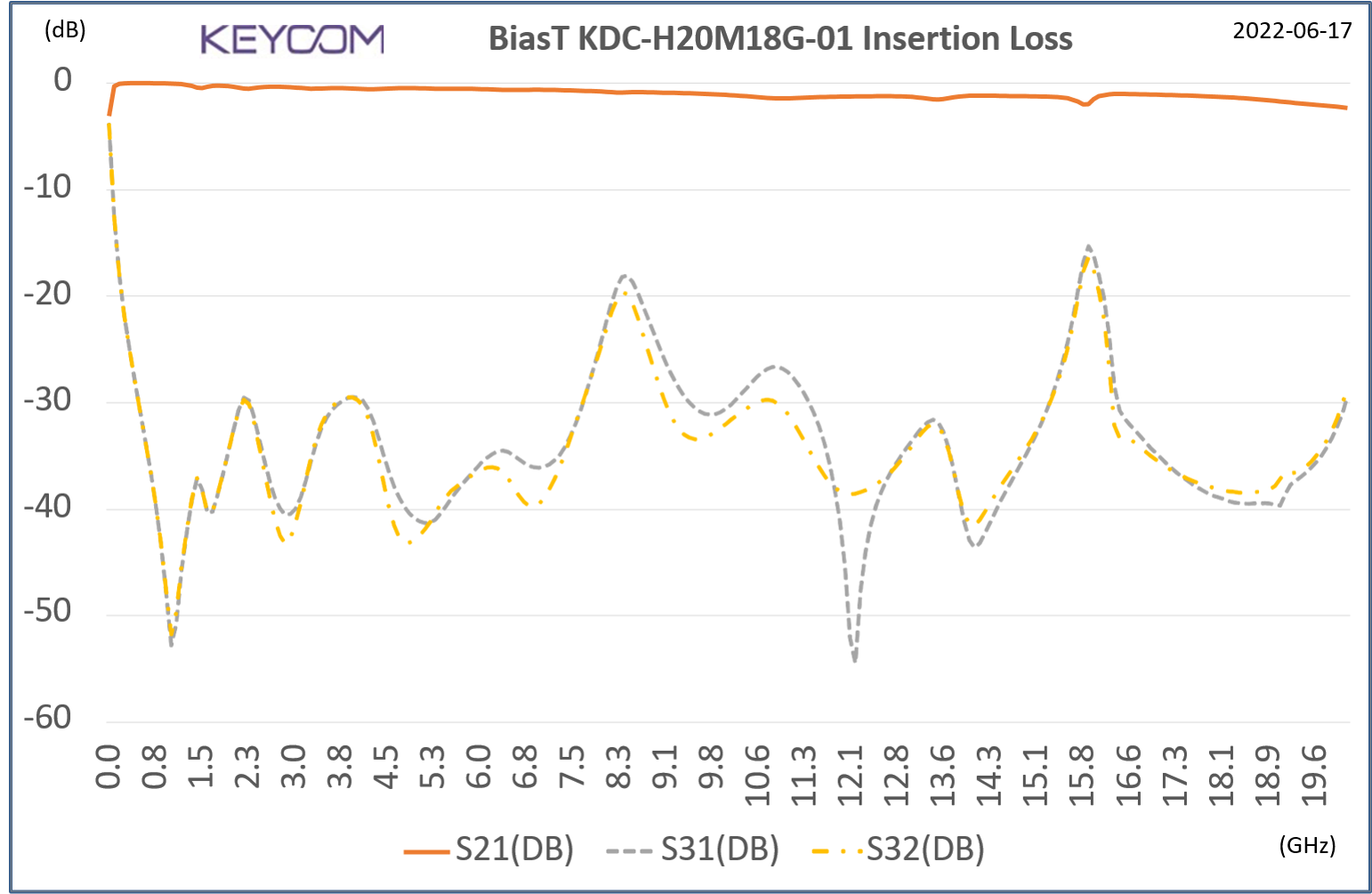

Instertion Loss①

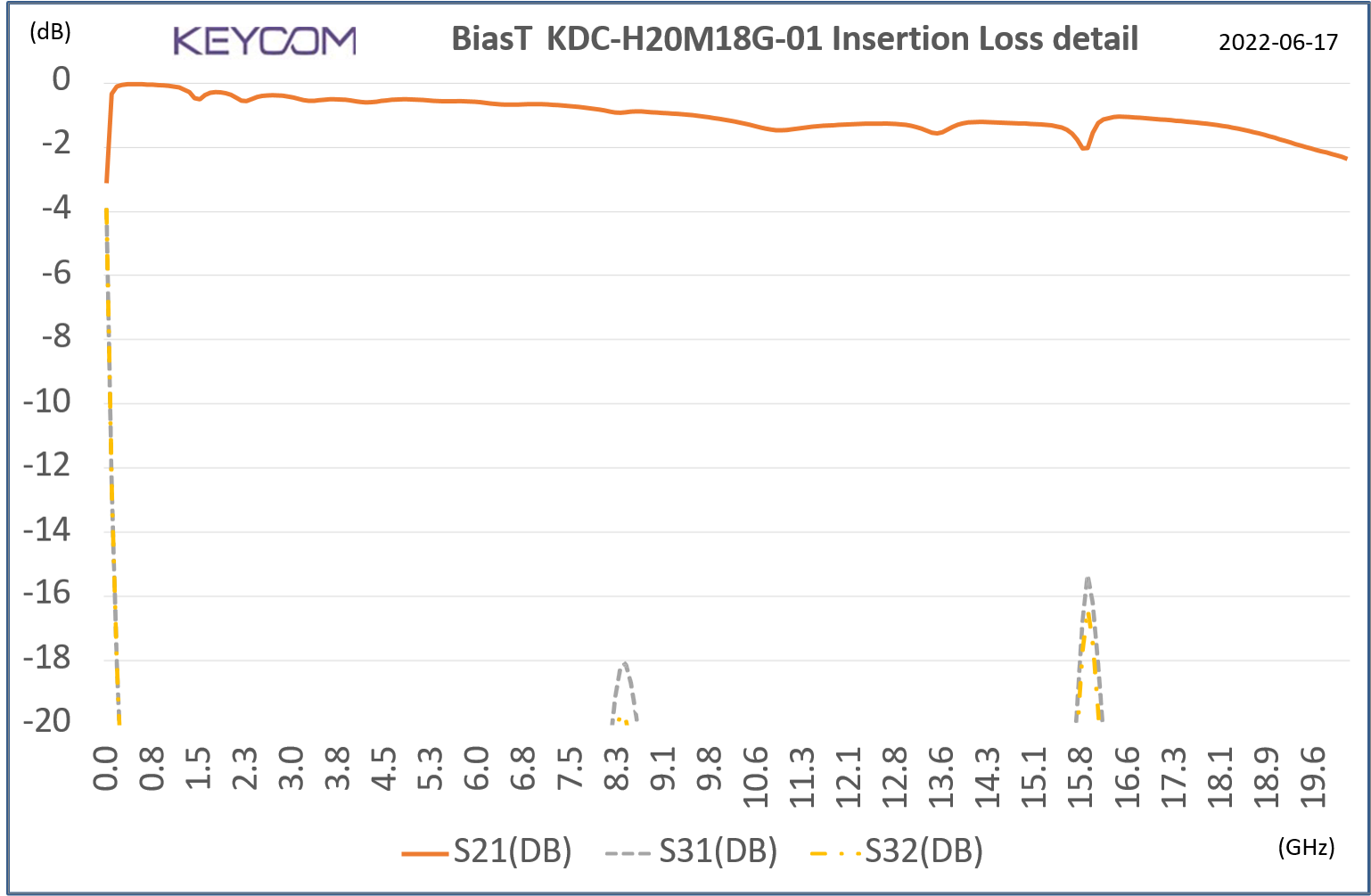

Instertion Loss② Detail

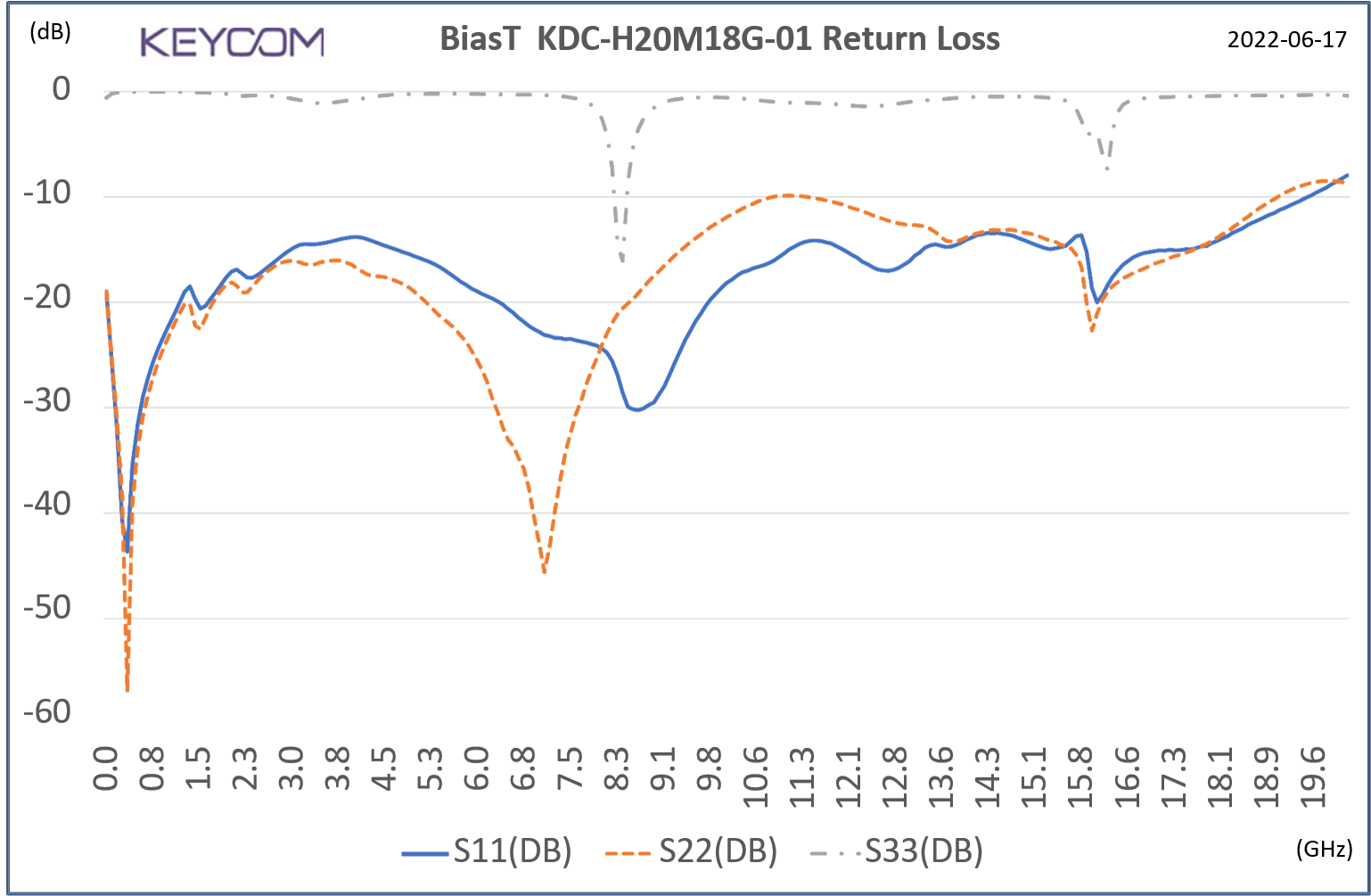

Return Loss①

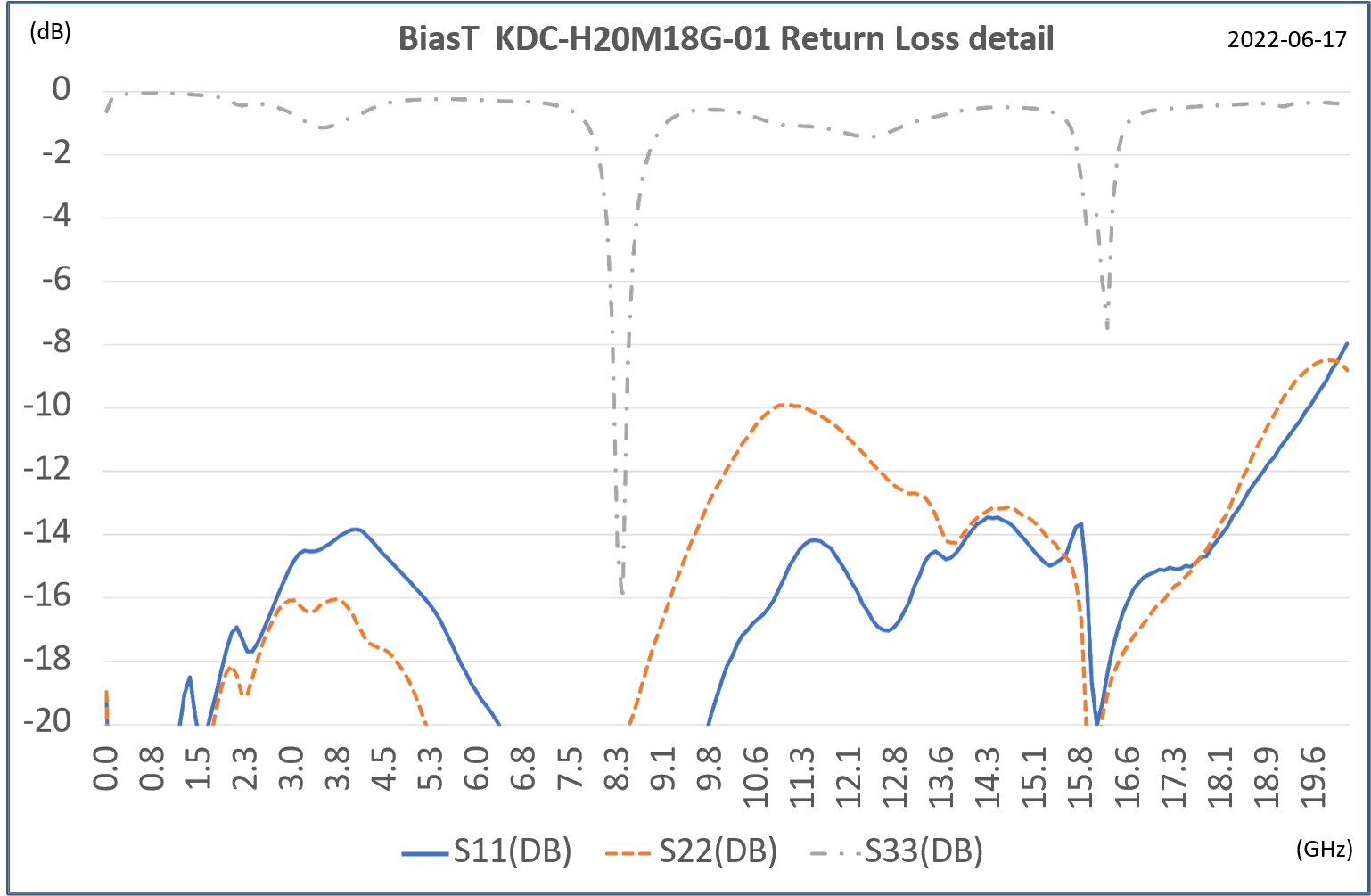

Return Loss② Detail

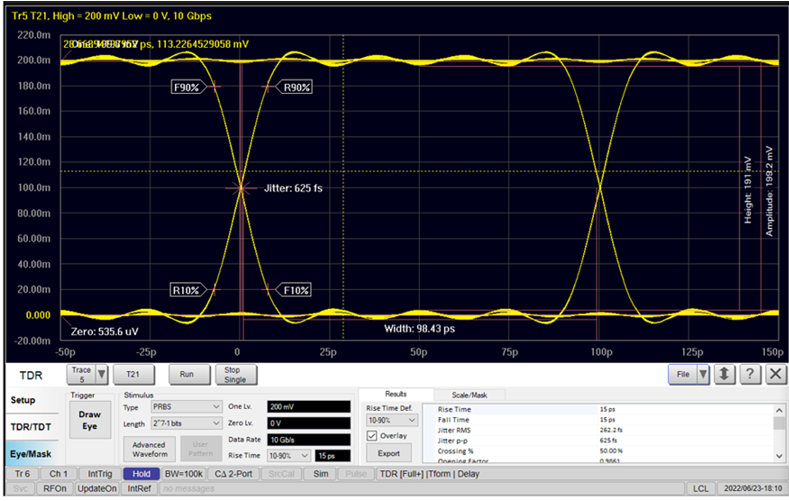

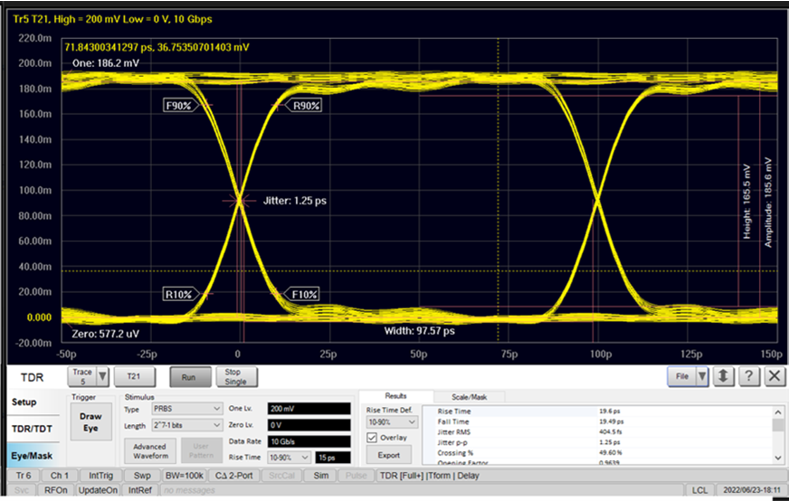

Eye Pattern 10Gbps

H: 0.2V | L: 0V
Data Rate: 10Gbps | Rise Time 10-90%: 15ps

Wave form at Port 1 - Input

Wave form at Port 2 - Output

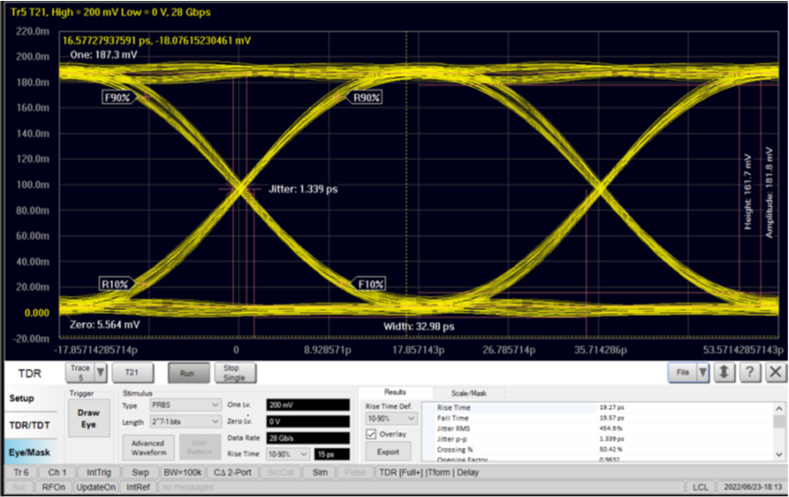

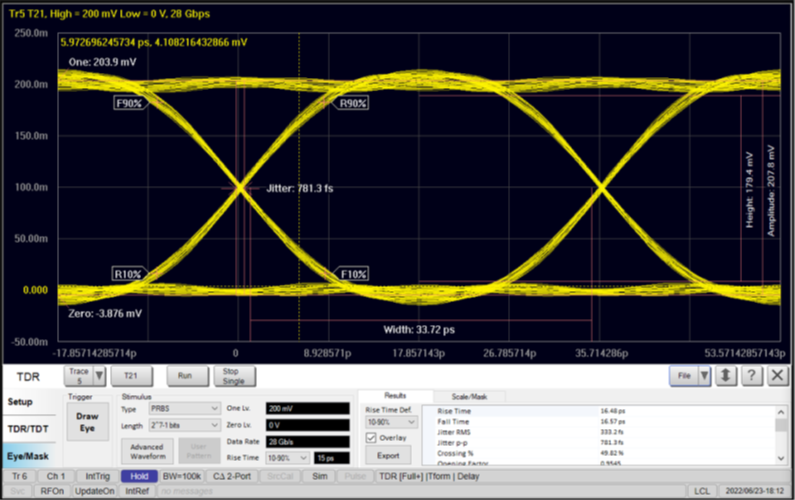

Eye Pattern 28Gbps

H: 0.2V | L: 0V
Data Rate: 28Gbps | Rise Time 10-90%: 15ps
