Bias-TEE For Cryogenic
18GHz Type

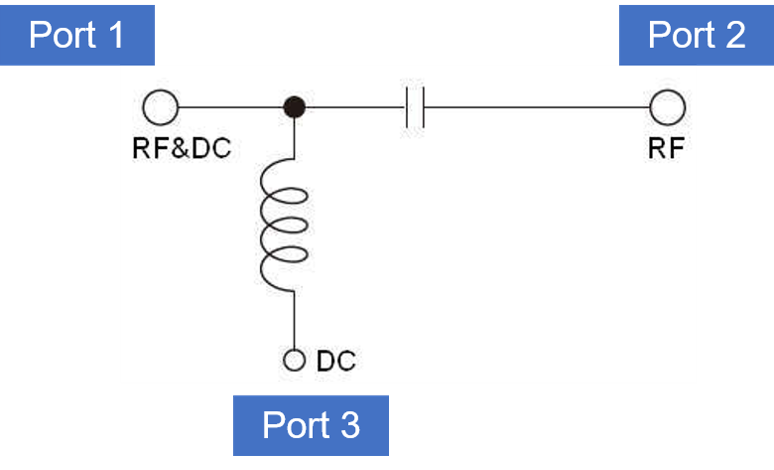

Model No. BYT01 : KDC-H20M18G-01CRYO

S21 characteristic from RF port to RF&DC port is flat over a wide bandwidth
The first product of wideband Bias-Tee to achieve 1000mA input current at the DC port
Lead time can be shorter than before.

Specifications

Items	Detail
Part No.	KDC-H20M18G-01CRYO
Characteristic impedance [Ω]	50
Minimum frequency (-3dB)[Hz]	20M
Maximum frequency[Hz]	18G
DC electric strength (max) [V]	10
DC Maximum supply current [mA]	1000
Amount of reflection attenuation (max) [dB]	-10dB
Connector	SMA(f),(f)
Size [mm] (not included connector areas)	20(W) x 33.4(L) x 11.5(H)

A Terminator is installed on Port 3, and BiasTee is placed in a 77K environment, and S-parameter data is extracted when the data is stable.
There is a slight difference in the data around 20 GHz depending on the measurement date, due to the state of Calibration, and the accuracy of the measurement data around 20 GHz varies.

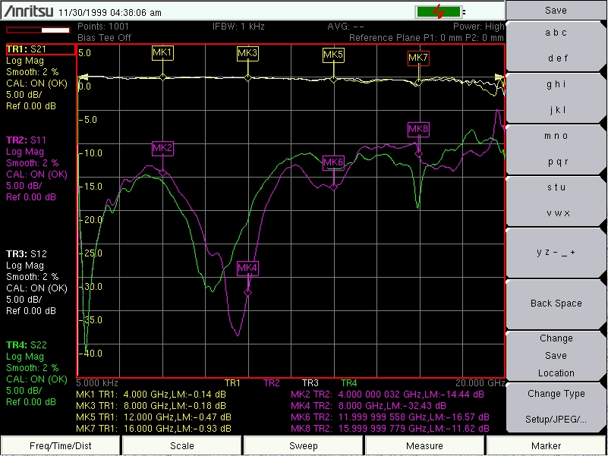

"Before" placing in 77K environment for 30 minutes

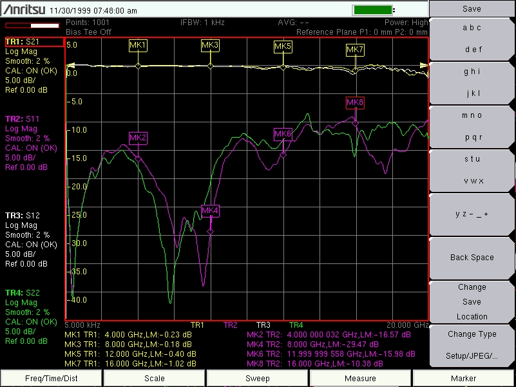

"After" placing in 77K environment for 30 minutes

Data under 77K environment for the 20th time, in the case of 20 cycles of placing BiasTee under 77K environment and then thawing at room temperature

Data after 20th time of thawing, in the case of 20 cycles of placing BiasTee under 77K environment and then thawing at room temperature
