Lens focus type reflection attenuation amount measurement system

Model No. EAS05

Focus millimeter wave by a lens and irradiate a measurement sample with it, you can measure reflection amount accurately.
There are 2 types of this system. S11 type : to measure reflected wave amount from transmitting point to the same point.
S21 type : to measure reflected wave amount from transmitting point obliquely to the other receiving point.

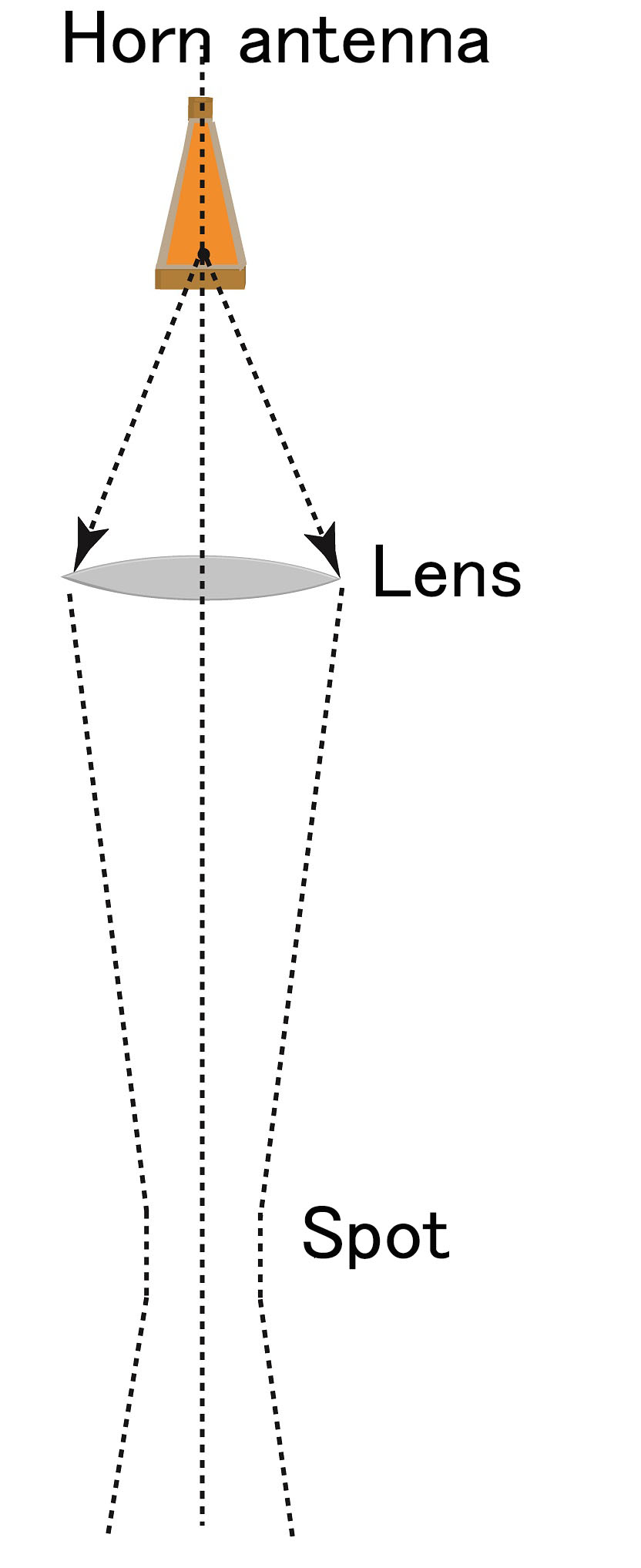

Minimum focused diameter(spot diameter) is about twice the wavelength.

  • 76.5GHz : 8mm


  • The reason for its high accuracy
  • Because of the free space between a horn antenna and a lens, unnecessary reflection won't occur and a disturbance of the phase also won't occur.
  • Spot diameter can be changed by changing positions of a horn antenna backward and forward.

  • ※ Anechoic chamber is not required.

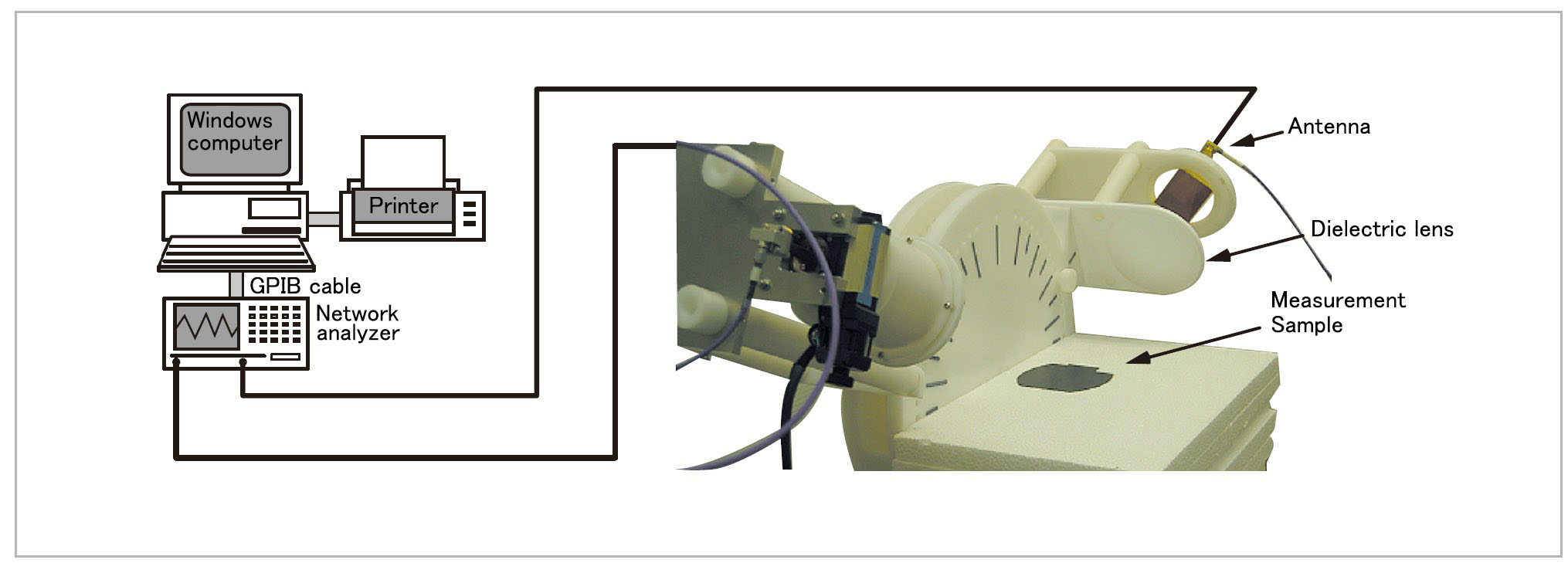

    Configuration


    Specifications

    Frequency 26.5 ~ 110GHz
    Angle of incidence min. 0°, max. 90°
    Main body size Height 800mm, Lens dia. 120mm, weight 50kg

    Ordering information - Please advise us of Model No. and Part No. (or any requests)

    Part Number Product Name Q-ty Frequency
    LAF-26.5B Main Body 1 26.5 ~ 110GHz
    RH28S10MA(f) Antenna (coaxial type) 2 26.5 ~ 40GHz
    RH19S10 Antenna (waveguide type) 2 40 ~ 60GHz
    RH12S10 Antenna (waveguide type) 2 60 ~ 90GHz
    RH8S10 Antenna (waveguide type) 2 90 ~ 140GHz
    DMP-20 Software for calculation and graph rendering 1 for all frequency ranges
    GP-01 GPIB connection cable 1
    ※Other required things :
    Cables for microwave, adapter, wave absorber, vector network analyzer, Windows PC
