RCS Imaging Evaluation System

Model No. RAT06

Feature

The visualization of the distribution of electromagnetic waves reflected from machines and other objects can contribute to the improvement of radiowave-absorbing materials and the shape of machines.

In addition, it is possible to compute the RCS for each part of the system or for the entire system by performing synthesis considering the phase of the reflected waves.

If you want to perform RCS imaging of more familiar objects with easier setup, Imaging Radar will be one of the options.

【Related Contents】
👉 Products Line-up of RCS measurement system
👉 For developing Radar(Microwave, MMwave) in general : Please check here
👉 For developing Automotive Radar : Please check here

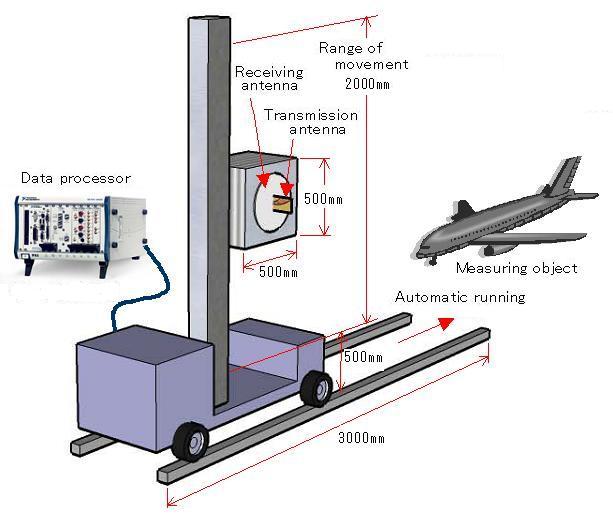

Configuration

Features

1．The narrow beam can be received by using the large caliber lens antenna. It can display a clear image.
2．It is possible to arrange it on the axis line of the lens for the transmission with a miniaturized antenna.
　 As for it, accuracy high, mono-static RCS (radar cross section) can be calculated.
3．A part of RCS such as airframes such as the air intake manifolds of the engine can be calculated.

Specifications

Items		Details
Frequency		9.6GHz±500MHz
Output		5mWmin ( peak )
Observation range		2m~10m
Antenna method	Transmission	Fermi antenna
	Reception	Lens antenna
Distance of antenna	Vertical direction	2m ( Resolution 30mm Pitch min )
	Horizontal direction	3m ( Resolution 30mm Pitch min )
Kind of display		1) 2D image 2) Whole RCS 3) Part RCS
Azimuth of measuring object		・Function to calculate azimuth with measuring instrument ・Function to automatic operation output result of a measurement in azimuth to file

Measurement example

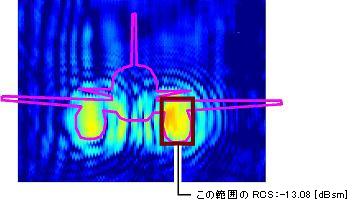

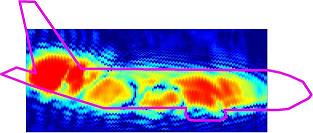

Airplane [Side View]	Airplane [Front View]

RCS Measurement Result

[ Measuring object : Passenger plane (model)　Length : 1.5m　Surface : Aluminum ]

Items	Details
Measuring object	RCS[dBsm]
Airplane (From the under)	6.27
Airplane (From side)	5.15
Airplane (Ahead)	-8.89
Radar target [ Metallic ball type ( Diameter : 254mm ) ]	-12.50

Model No.

Model No.	Name	Amount
IM-RCS-01	Main body	1
5947	Ｙ-stage （ Controller and with PC software ） Height 2.0m, Wagon, With automatic running device	1
5708	Transmission and reception antenna （ With cable ）	1
5948	9.6GHz Transmission and reception system	1
5805	Data processor	1

Extensibility

This system is designed for use in an anechoic chamber.
If you are going to implament test outdoors and measure an actual machine, it is necessary to reinforce micro-wave output, reduce frequency band, expansion of the quantity of antenna movement.
Please contact us for details.
