Radar Aiming System (RAIS)
EES-03(SM5899-03)

Model No. RAT18
Feature

This is an indoor mechanical radar alignment system.
This is a device to adjust directions of radars mechanically and misalignment between the front direction of a car and
the radar mounting direction, while observing up/down of radar beam.
When a radar is back of an emblem, this system can adjust not only the misalignment but a beam tilt of an emblem.

Features

Specifications

Frequency range 76 ~ 81GHz
Operating temperature 0° ~ 40°
Data update rate 4Hz(250ms / point)
Measurement angle precision ±0.1°
Simultaneous measurement of insertion loss and beam tilt Yes

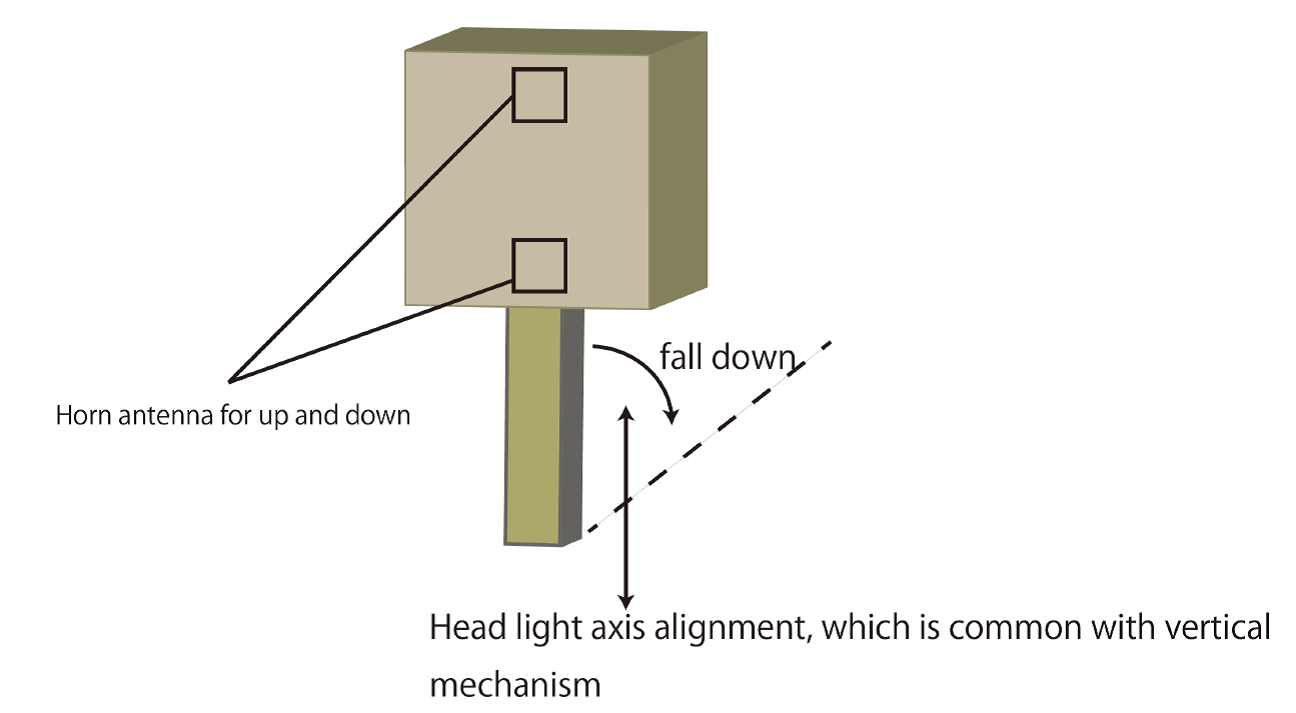

Measurement procedure

Calibration

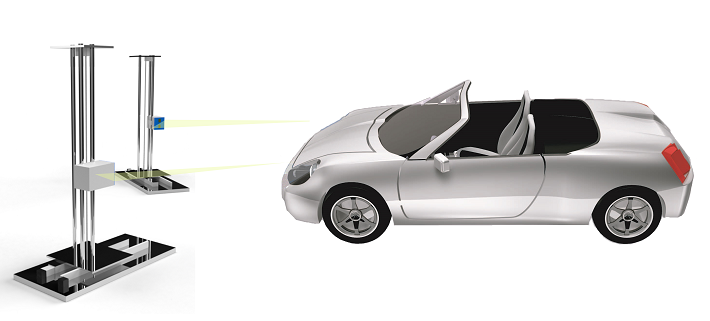

EES-03 System configuration example
