3ch heart rate and respiration sensor/data recording system

Model No. HM-DS-05

Feature

・This is a system for recording biometric information such as respiration and heartbeat using non-contact sensors.
・It consists of the main body of sensors (3 units) and a data recorder (1 unit).
・The sensor body incorporates a 24GHz Doppler sensor 24G-DS005 (certified) with the following features.

➀RF frequencies have already been set to L, M, and H and can be used simultaneously without mutual interference.
②A 0.2 to 20Hz bandpass filter and a 33dB amplifier are built-in for recording clear signals with low noise.

Product Images

Sensor body

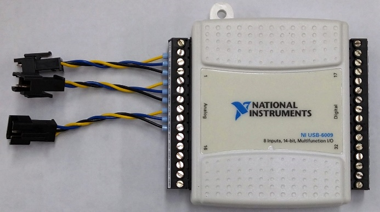

Data Recording Equipment

Configuration

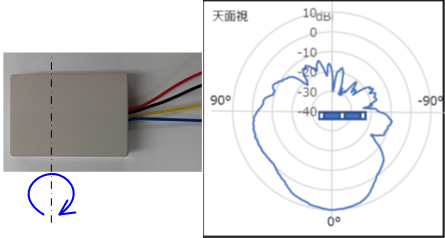

Antenna pattern (plane E: electric field direction)

〃　（H-face: Magnetic field direction）

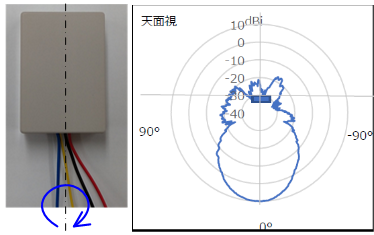

Antenna pattern (H plane: magnetic field direction)

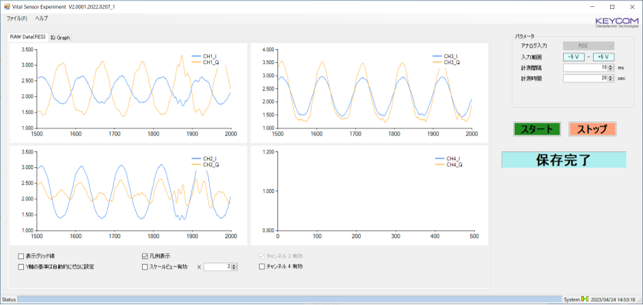

Result Display

※CH4: Contact heart rate sensor is not shown because it is not connected.

Specification

Item	Details
Frequency	24GHz Band(24.05)
Number of frequency channels	3-channel switchable（L:24.12,M:24.15,H:24.18GHz）
Detection method	Doppler system
Antenna	Patch array antenna（Antenna gain＝10.1dBi）
Transmission power	3mW typ.　(EIRP=+14.9dBm typ.)
Sensor main unit output signal	IF(I/Q)analog
Power supply (AC adapter)	AC100V 0.02A or less (total power)
Operating temperature	-20~+85℃
Sensor body dimensions	(L)55 X (W)40 X (H)20mm　(Excluding connectors)
Sensor body weight	Approx. 25g/piece
Recording device dimensions	(L)85.1 X (W)81.8 X (H)23.2mm
Recording device mass	84g
Interface	USB2.0
