Model No. ATN01
订购信息（请告知我方型号、配件号以及其他需求。）
固定衰减器
| 零件号 No. |
波导 |
法兰 |
频率(GHz) |
VSWR(最大) |
| AT42-○○ |
WR-42 |
UG-595/U |
18.0-26.5 |
1.15 |
| AT28-○○ |
WR-28 |
UG-599/U |
26.5-40.0 |
1.15 |
| AT22-○○ |
WR-22 |
UG-383/U |
33.0-50.0 |
1.15 |
| AT19-○○ |
WR-19 |
UG-383/U |
40.0-60.0 |
1.15 |
| AT15-○○ |
WR-15 |
UG-385/U |
50.0-75.0 |
1.15 |
| AT12-○○ |
WR-12 |
UG-387/U |
60.0-90.0 |
1.15 |
| AT10-○○ |
WR-10 |
UG-387/U |
75.0-110.0 |
1.15 |
| AT8-○○ |
WR-8 |
UG-387/U |
90.0-140.0 |
1.2 |
| AT6-○○ |
WR-6 |
UG-387/U |
110.0-170.0 |
1.2 |
○○:3dB, 6dB, 10dB, 20dB, 30dB

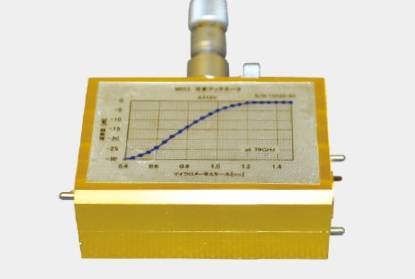

可变衰减器
| 零件号 |
波导 |
法兰 |
频率(GHz) |
衰减 |
VSWR(最大) |
| AT42V |
WR-42 |
UG-595/U |
18.0-26.5 |
~30dB |
1.15 |
| AT28V |
WR-28 |
UG-599/U |
26.5-40.0 |
~30dB |
1.15 |
| AT22V |
WR-22 |
UG-383/U |
33.0-50.0 |
~30dB |
1.15 |
| AT19V |
WR-19 |
UG-383/U |
40.0-60.0 |
~30dB |
1.15 |
| AT15V |
WR-15 |
UG-385/U |
50.0-75.0 |
~30dB |
1.15 |

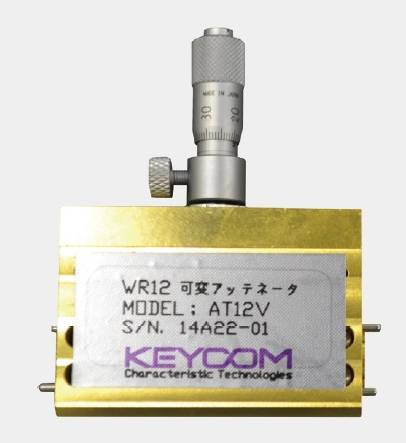

| AT12V |
WR-12 |
UG-387/U |
60.0-90.0 |
~30dB |
1.15 |
| AT10V |
WR-10 |
UG-387/U |
75.0-110.0 |
~30dB |
1.15 |
| AT8V |
WR-8 |
UG-387/U |
90.0-140.0 |
~30dB |
1.2 |
| AT6V |
WR-6 |
UG-387/U |
110.0-170.0 |
~30dB |
1.2 |

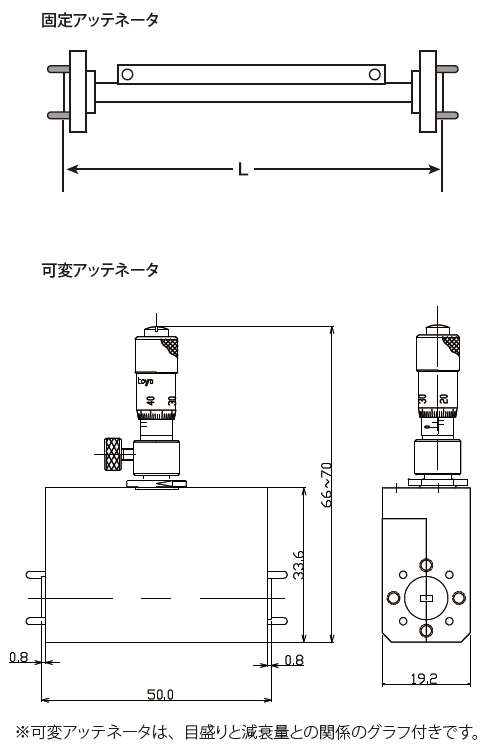

配置
