Model No. ANT01

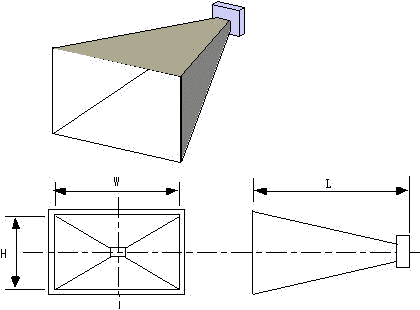

Outside drawing
Parts No.
| Frequency GHz |
Waveguide tube standard |
Flange type |
Model No. |
Gain dBi. (nom.) |
Lmm |
Hmm |
Wmm |
| 1.70 |
- |
2.60 |
WR- |
430 |
UG- |
437A/U |
RH |
430 |
S |
10 |
145 |
140 |
187 |
| 2.60 |
3.95 |
284 |
53/U |
284 |
13.5 |
145 |
140 |
187 |
| 3.95 |
5.85 |
187 |
149A/U |
187 |
16 |
155 |
122 |
163 |
| 4.90 |
7.05 |
159 |
BRJ6 |
59 |
17 |
170 |
118 |
155 |
| 5.85 |
8.2 |
137 |
UG- |
344/U |
137 |
18 |
175 |
113 |
150 |
| 8.2 |
12.4 |
90 |
39/U |
90 |
19 |
175 |
85 |
110 |
| 12.4 |
18 |
62 |
419/U |
62 |
22 |
175 |
79 |
104 |
* Standard gain and pattern profiles included
* An additional fee will be charged for an actual measurement data

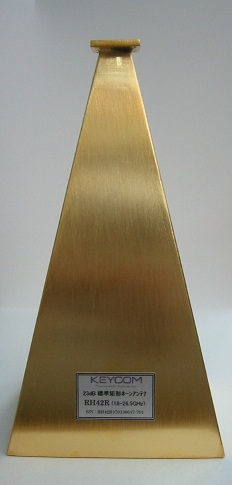

KEYCOM offers diverse selection of rectangle horn antennas with frequencies ranging from 1.7GHz~18GHz, and antenna gains from 10dBi ~ 22dBi.
