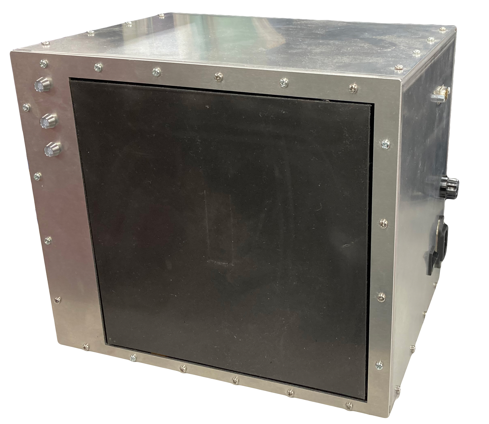

・The phantom reproduces the chest movements produced by human respiration and heartbeat.
・It is used to evaluate, adjust, and optimize non-contact radio frequency-based vital sensors.
・It reproduces the prescribed heartbeat and breathing motion by controlling vibrating plate.
|
| |

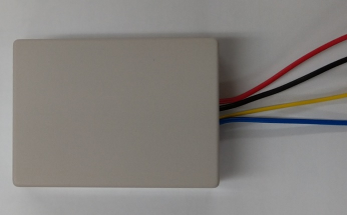

・This is a moving body detection sensor module that detects respiration, heartbeat, and body movement without contact.
・Construction design certification obtained (001-A19679). ⇒ No license in japan.
・RF can be set to switch between L, M, and H. ⇒ Up to 3 units can be used simultaneously without mutual interference.
・Compact, lightweight, low-profile design with a height of 7 mm. ⇒ Easy to integrate into systems.
|
| |
・This is a system for recording biometric information such as respiration and heartbeat using non-contact sensors.
・It consists of the main body of sensors (3 units) and a data recorder (1 unit).
・The sensor body incorporates a 24GHz Doppler sensor 24G-DS005 (certified) with the following features.
➀RF frequencies have already been set to L, M, and H and can be used simultaneously without mutual interference.
②A 0.2 to 20Hz bandpass filter and a 33dB amplifier are built-in for recording clear signals with low noise.
|
