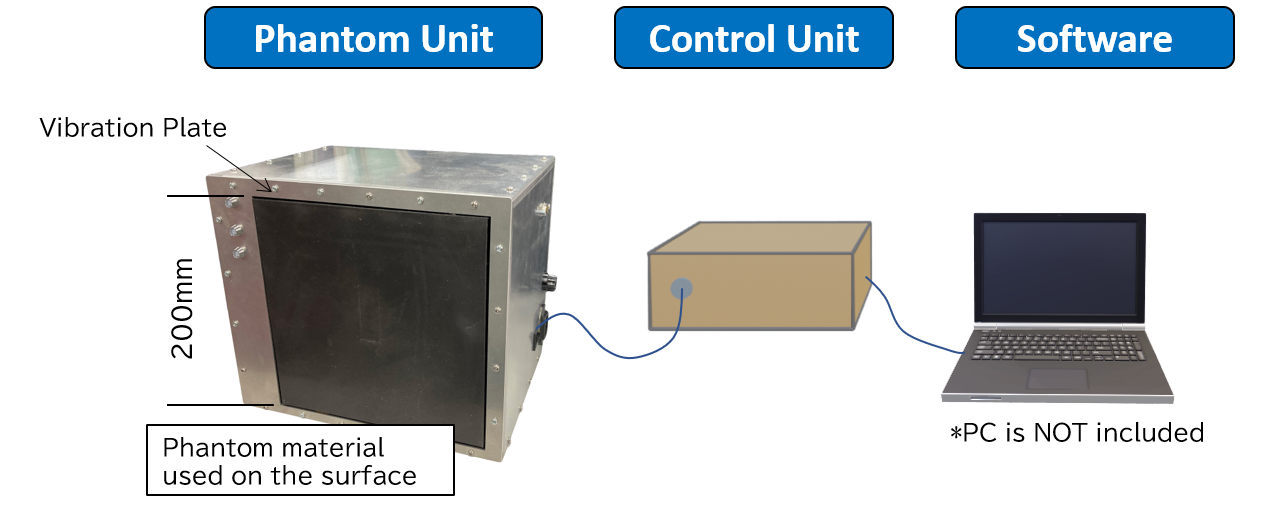

Configurations
Specifications
| Items | Details |
|---|---|
| Breathing | ・Settable 0.1Hz to 1Hz ＠0.01Hz step / ・Stroke settable 0.1mm to 27mm @0.1mm step |
| Heartbeat | Settable 0.5Hz to 5Hz @0.05Hz step / Stroke settable 0.1mm to 3mm @0.05mm step |
| Software（Windows) | ・You can set and controll biophantom unit via controlling unit from the software in the PC. ・Can reproduce your waveform data (csv format). ・Waveform data (csv format) can be created and provided upon request. |
| Size | Biophantom Unit：W264 X D202 X H228 mm Controlling Unit：W149 X D170 X H84mm |
Ordering Information
Please send us an email or call us with your request.
Please also let us know the frequency of the doppler sensor or radar to be used.
Our staff will respond to your questions and propose the best system upon your needs.
