KEYCOM provides solutions in the 300 GHz to 1 μHz frequency range (SHF/EHF/MW/UHF/VHF/ULF).
We undertake designing, manufacturing and measuring. Please feel free to contact us.

Cable & Cable Assembly

Model No. XCC

Overview of KEYCOM's Cable Products / Related Products

1. Robot Cables

Product name Part.No Model.No Conductor size Rated (heat-resistant)
temperature		 Jacket Material Cable outer diameter
3-core cable for torsional moving parts R3A0203V rbl04002020218-09 0.2SQ Twistable 80℃ Flame retardant PVC φ3.9mm
IEEE-1394　Type Robot Cable
and Cable Assembly		 R1D0302-1SV rbl05002041122-13 AWG#28/、#26 105℃ Flame retardant PVC φ6.1mm
3-pair Shielded Robot Cable R1B0303SV   0.3SQ Twistable 105℃ Flame retardant　PVC φ6.2mm
6-pair Shielded Clean Cable R1B0306SV rbl01002950422-08 0.3SQ Twistable 105℃ Flame retardant PVC φ7.0mm
5-core Robot Cable R1A0305SV rbl02002010718-07 0.3SQ Twistable 105℃ Flame retardant　PVC φ5.2mm
Power coaxial cables for Robots R1X0.75SQ2 rbl03002020218-09 075SQ 75℃ PVC φ7.0mm
Flat type Multi-core Robot Cable 3-R1B0306-
R1A0305-01		   0.3SQTwistable 105℃ Flame retardant　PVC 7mm×19mm

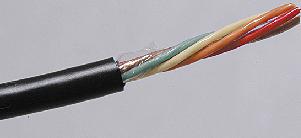

  1.1.  6 Pair Shielded Clean Cable  [RBL01]   1.2.  5 Core Robot Cables [RBL02]

6 pair shielded clean cable with a long bending tolerant life.
* Makes little dust from the outer jacket or the ends.
* Suitable for movable applications in a clean room.
* Crimped terminal applicable.
*After 5 million sets of a bending test, a set consisting of
bending the cable back and forth 180°each at a bending radius of 30mm,
- No increase in conductor resistance was acknowledged.
- No damage was found on the jacket.
- No damage was found on the conductor or insulator.
* Makes little dust from the outer jacket or the ends.
* Suitable for movable applications in a clean room.
* Crimped terminal applicable.
*After 5 million sets of a bending test, a set consisting of
bending the cable back and forth 180°each at a bending radius of 30mm,
- No increase in conductor resistance was acknowledged.
- No damage was found on the jacket.
- No damage was found on the conductor or insulator.
  Detail!   Detail!
  1.3.  Power coaxial cables for Robots [RBL03]   1.4.  Torsion Resistant Cable  [RBL04]
  *Extremely long flex life cable.
*No dust is generated from the ends and the cable sheath.
*Can be used in a clean room.
*Crimp terminals can be used.
*No increase in conductor resistance was observed after 5 million cycles of bending at a bending radius of 30 mm and 180 degrees back and forth.
- No increase in conductor resistance was observed.
- There was no break in the jacket.
- When the cable was disassembled, no abnormality such as conductor breakage or insulation breakage was observed.


* Highly durable to torsion.
* Makes little dust from the outer jacket or the ends.
* Suitable for applications that require rotary motion in a clean room.
* Crimped terminal applicable.
* After 1.2 million sets of a torsion test, a set consisting of twisting the 100mm cable left and right 180°,
- No increase in conductor resistance was acknowledged.
- No damage was found on the jacket.
- No damage was found on the conductor or insulator.
      Detail!

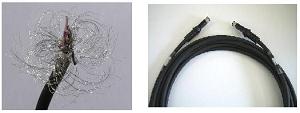

  1.5.  IEEE 1394 Robot Cable [RBL05]

IEEE 1394 robot cable with a long bending tolerant life.
* Makes little dust from the outer jacket or the ends.
* Suitable for movable applications in a clean room.
* Crimped terminal applicable.
* After 5 million sets of a bending test, a set consisting of
bending the cable back and forth 180°each at a bending radius of 30mm,
- No increase in conductor resistance was acknowledged.
- No damage was found on the jacket.
- No damage was found on the conductor or insulator.
  Detail!

Compensation lead wire for Robots

For Robots
Type Product Name Part.No Model.No Conductor Size Rated (heat-resistant)
temperature		 Jacket Material Cable Outer Diameter
KX KX 1-pair Compensation Lead Wire for Robots KX-R0B1 RBC02 AWG＃22 105℃ PVC φ5.5mm
KX KX 4-pair Compensation Lead Wire for Robots KX-R4B1 RBC02 AWG＃22 105℃ PVC φ7.5mm
KX KX 10-pair Compensation Lead Wire for Robots KX-R10B1 RBC02 AWG＃22 105℃ PVC φ10.5mm

Clean Type
Type Product Name Part.No Model.No Conductor Size Rated (heat-resistant)
temperature		 Jacket Material Cable Outer Diameter
KX KX Clean type,1-pair Compensation lead wire CKX-1-19/0.18   CA19/0.18 200℃   φ3.0

2. Clean Cables

  2.1.  Clean, Heat-Resistant Wires (Cables) for Robot [CCB01]   2.2.  Clean Robot Cable for High Voltage [CCB06]

Clean wires (cables) with long bending tolerant lives, applicable to moving parts.
Its continuous operating temperature is as high as 260°C, and it generates little dust or gas in a vacuum.		   A clean robot cable for high voltage with a long bending tolerant life and little gas generation in a vacuum.
Continuous operating temperature is as high as 200°C.
  Detail!   Detail!
  2.3.  Coaxial Clean Robot Cable for High Voltage [CCB05]   2.4.  1 pair shielded clean cable for robot [CCB04]




A coaxial clean robot cable for high voltage with a long bending tolerant life and little gas generation in a vaccume.

   It is one pair shielded clean cable for robot.
  • It generate a little gas.
  • No dust from the cable sheath or terminals.
  • It is a long flex life, available to the moving parts.
  • Press-in terminals can be used.
    		•
      Detail!   Detail!
      2.5.  6 Pair Shielded Clean Cable [CCB02]


    6 pair shielded clean cable with a long bending tolerant life.
    * Makes little dust from the outer jacket or the ends.
    * Suitable for movable applications in a clean room.
    * Crimped terminal applicable.
    *After 5 million sets of a bending test, a set consisting of
    bending the cable back and forth 180°each at a bending radius of 30mm,
    - No increase in conductor resistance was acknowledged.
    - No damage was found on the jacket.
    - No damage was found on the conductor or insulator.
      Detail!

    3. Millimeter wave, Microwave Transmission Line ( Coaxial Cable etc )

      3.1.  Millimeter wave / Microwave Flexible Coaxial Cable Assembly [MMT02]   3.2.  Millimeter wave / Microwave Easily Formable Coaxial Cable Assembly [MMT03]


    Flexible coaxial cables are used so that they can be bent freely by hand when installed in the equipment.
    It is also ideal for use as a measurement cable.
    Keycom's cable assemblies are simple and practical, based on years of experience.
    The use of foamed PTFE as the dielectric provides low loss and high phase stability.


    Easy-formable coaxial cables are used so that they can be bent freely by hand when installed in the equipment and still maintain their shape.
    The cable can be repeatedly bent dozens of times for redoing.
      Detail!   Detail!
      3.3.  Millimeter wave semi-rigid coaxial cable assembly [MMT04]   3.4.  Dielectric Waveguide Assembly for Millimeter Wave [MMT01]

    This semi-rigid coaxial cable is easy to install to or in your devices if it has been preliminarily bend-processed.
    It possesses very small insertion loss and outstanding return loss characteristics.
    With its transmission part being made only of dielectrics, this dielectric waveguide assembly possesses flexibility and extremely low insertion loss for millimeter waves.
    It is suitable for insulation of high voltage, or between cryogenic temperature and room temperature.
    (Awarded Plunkett Award by DuPont Co., US)
      Detail!   Detail!

    4. Cryogenic (Super-Low temperature)/Superconductive Cables, Components

      4.1.  Semi-Rigid Cables for Cryogenic (Super Low Temperature) Applications [UPJ02]   4.2.  Superconducting Coaxial Cable Assemblies (0. 085" type Nb-Nb Superconducting Coaxial Cable Assemblies) [UPJ06]


    KEYCOM offers wide variety of semi-rigid coaxial cables for cryogenic applications.
    They are low in heat conductivity, minimizing inflow of the heat from the high-temperature end.
    Operating frequency is DC-40GHz by default, available up to 65GHz upon request.The characteristic impedance is 50Ω.


    Cryogenic superconducting coaxial cable assembly with niobium conductor, recognized by research institutions all over the world.
      Detail!   Detail!

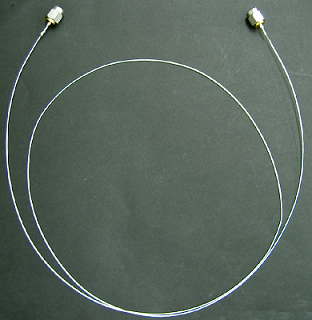

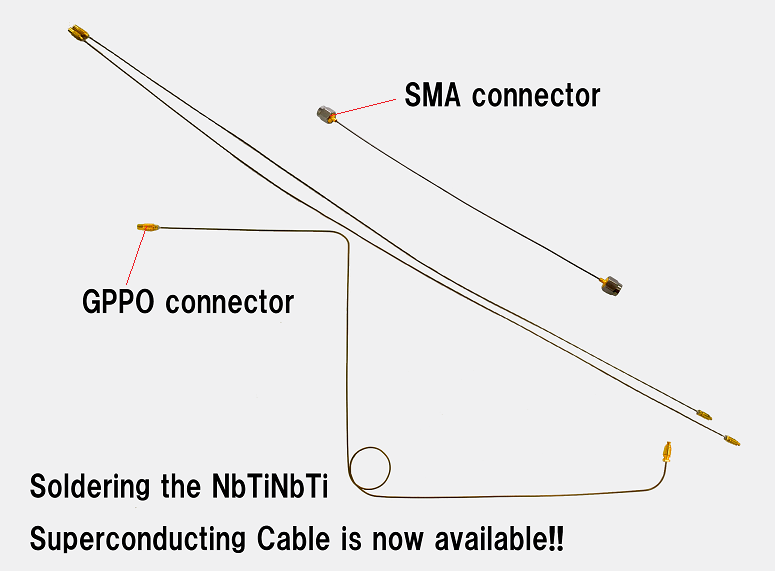

      4.3.  Superconducting Coaxial Cable Assemblies (0.085" / 0.047" / 0.034" type NbTi-NbTi Superconducting Coaxial Cables) [UPJ07]   4.4.  Filter Cable [UPJ22]

    Superconduction coxial cable for cryogenic and strong electromagnetic field,recognized by research institutions all over the world.
    Highly effective at thermal gradient below 4K.
    A thin and flexible coaxial cable that provides strong attenuation.
      Detail!   Detail!
      4.5.  Plug Connectors (MMCX / GPPO type) [UPJ13]   4.6.  Cryogenic Twisted-Pair Signal Cables [UPJ24]

    Plug connectors for coaxial cables.

    Plug connectors for coaxial cables.
      Detail!   Detail!
