Double Ridge Horn Antenna

Model No. ANT14

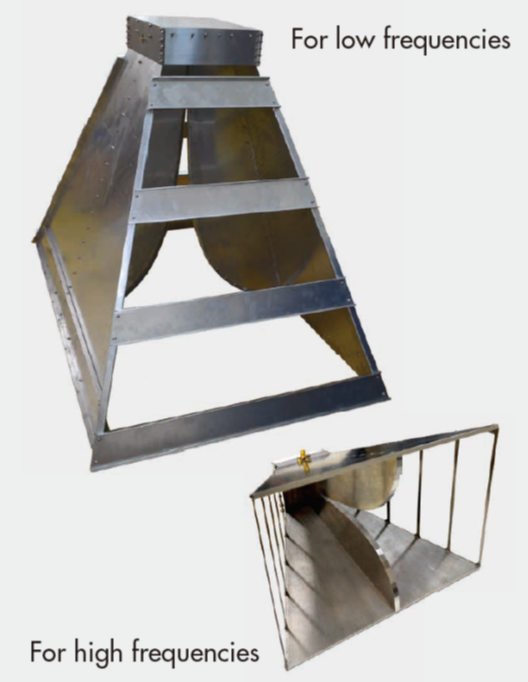

Double ridge horn antenna uses a double ridge waveguide for the feeding part, so that they can be used over a wide bandwidth and is suitable for measuring antenna patterns.

【Related Contents】
👉 Products Line up of KEYCOM's Antenna Series

Specifications

Model name Frequency [GHz] Connector Lmm Hmm Wmm
WHA-1A 0.16 - 1 SMA(f) 900.0 820.0 1250.0
WHA-18A 1 - 18 SMA(f) 280.0 160.0 250.0
* Operation temparature: 0 to 50 degree
* Standard Gains and pattern profiles are provided.
*If measured data are also requested, an additional charge is required.

Model name Frequency [GHz] Connector Gain**
WHA-43A 18 - 43 K(f) 12dBm @18GHz
15dBm @24GHz
15dBm @34GHz
10dBm @43GHz
* If Standard Gains and pattern profiles are requested, an additional charge is required.
** The above is not a guaranteed value.
