50GHz band, Omni-Antenna

Model No. ANT17

Omni-antennas are omni-directional and are used for communications over relatively short distances.

KEYCOM's product is waveguide-fed and omni-directional in the horizontal plane and is equipped with a radome, fit for outdoor use.

【Related Contents】
👉 Products Line up of KEYCOM's Antenna Series

Model No.

Item 　Specification
　Input-output interface 　WR19 Waveguide
　Range of frequency 　50.4GHz-51.1GHz
　VSWR 　less than 1.2
　Gain 　5dB inom.　
( Mean value in a horizontal plane )
　Width of electric power halfpower in vertical 　About 36 degree
　Omnidirectional deflection in a horizontal plane 　+-3dB



Reflection characteristic

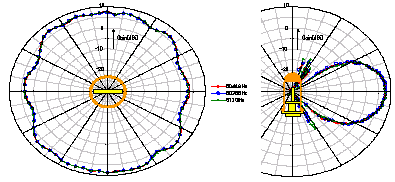

Directivity in a horizontal plane and gain characteristic / Directivity in vertical and gain characteristic
