W band, Lens antenna

Model No. ANT18

This is a high-gain antenna for the millimeter-wave W-band (75-110 GHz), enabling higher gain in simple configuration.

We can also design and manufacture a beam transmission system using two lenses.

Upon your request, we can propose either an aspheric lens or a single flat lens (on the primary radiator side or the opposite side).

【Related Contents】
👉 Products Line up of KEYCOM's Antenna Series

Model No.

Model No.  LASW-01
Frequency  75-110GHz
Lens diameter  55mm
Focal length  40mm
VSWR  1.3 or less
Gain  28-32 dB
Half-power width  3.5-5 degree

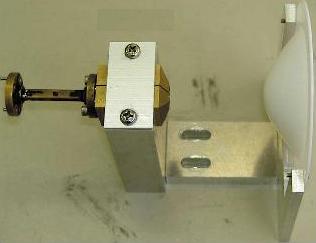

Configuration / Product Images
