Rectangular waveguide antennas are used at relatively high frequencies to transmit electromagnetic waves through the waveguide.

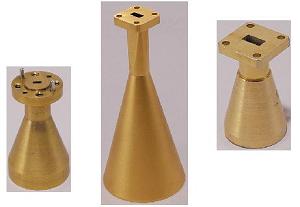

These conical horn antennas are gold plated on the inside to improve the characteristics. We have various types of antennas with frequencies ranging from 18 GHz to 325 GHz.
【Related Contents】| Frequency GHz |
Waveguide tube standard | Flange type | ||||||||||||||||||
| Square type | Model number | Round type | Model number | FXR type | Model number | |||||||||||||||
| 18 | - | 26.5 | WR- | 42 | UG | 595 | /U | CC | 42 | S | UG | 425 | /U | CC | 42 | R | ||||
| 26.5 | 40 | 28 | 599 | 28 | 381 | 28 | ||||||||||||||
| 33 | 50 | 22 | 383 | 22 | ||||||||||||||||
| 40 | 60 | 19 | 383 | 19 | ||||||||||||||||
| 50 | 75 | 15 | 385 | 15 | ||||||||||||||||
| 60 | 90 | 12 | 387 | 12 | ||||||||||||||||
| 75 | 110 | 10 | 10 | |||||||||||||||||
| 90 | 140 | 8 | 8 | FXR | CC | 8 | F | |||||||||||||
| 110 | 170 | 6 | 6 | 6 | ||||||||||||||||
| 140 | 220 | 5 | 5 | 5 | ||||||||||||||||
| 170 | 260 | 4 | 4 | 4 | ||||||||||||||||
| 220 | 325 | 3 | 3 | 3 | ||||||||||||||||
