Millimeterwave convergence antennas

Model No. ant05002011201-11

Millimeter wave convergence antennas are used for non-contact irradiation of millimeter waves over a narrow area, such as millimeter-wave detectors and other devices.

KEYCOM'S product has characteristics of high radiation efficiency, low reflection attenuation, and can irradiate millimeter waves over a small area at the wavelength level.

【Related Contents】
👉 Products Line up of KEYCOM's Antenna Series

Specifications

Items Details
Insertion loss Place two antennas on a straight line 1 mm apart, facing antenna parts each other, and polarized wave phases aligned.
4 dB or less based on an insertion loss of a metal waveguide tube with the same length.
Reflection attenuation 10 dB or less.

Model No.

MA01-WR10

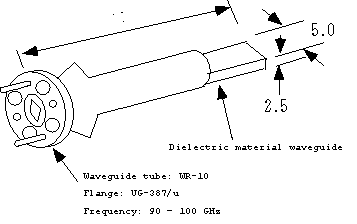

Configurations
