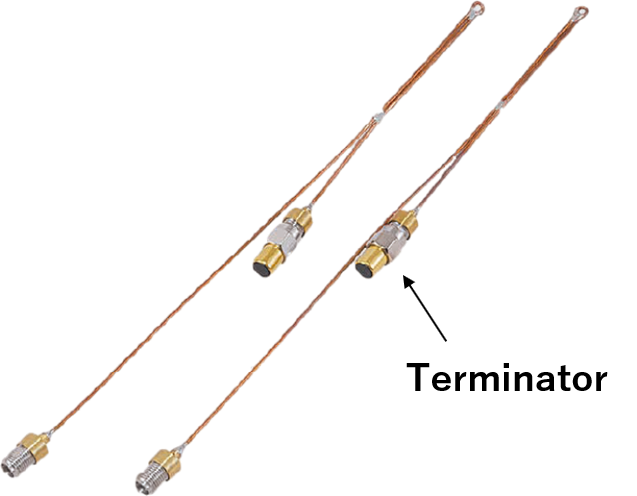

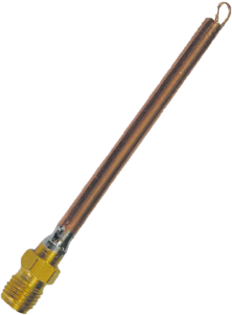

Minute loop antennas

Model No. ant06002020508-11

Minute loop antennas consists of loops whose perimeter length is very short compared to its wavelength in minute details.

In terms of applications, they are used for Non-Physical contact irradiation of microwaves or millimeter waves to a small area, or for fine measurement of electric field strength distribution.

【Related Contents】
👉 Products Line up of KEYCOM's Antenna Series

Specifications

Items Details
Insertion loss Place two antennas 1 mm apart, facing antenna parts each other. 10 dB or less based on an insertion loss of a coaxial cable with the same length.
Reflection attenuation 3 dB or more.

Configurations

Antenna Type

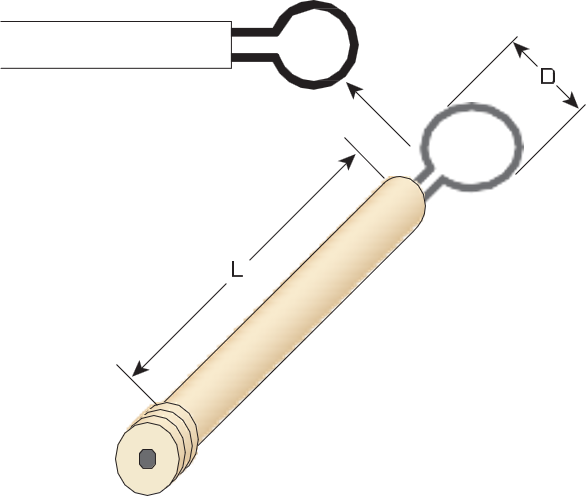

Antenna Type N



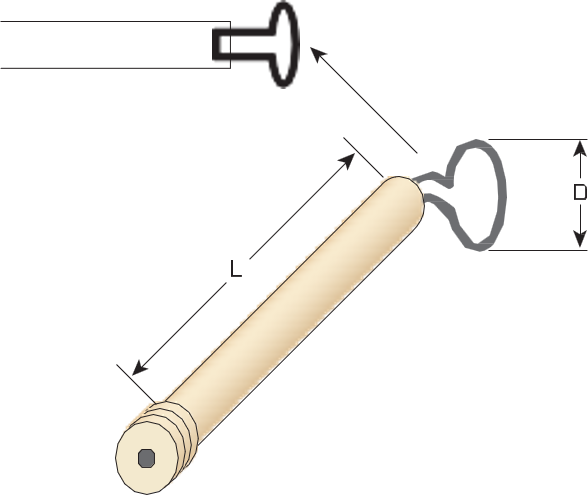

Antenna Type W

This is an improved type with a wider frequency range. Please consult with us when placing an order.


Transmission Part

Type A



Type B


Ordering Information

Antenna Type - Connector - L:100mm - D:3mm Transmission Part Type - Option
RA-085 N or W SMA(f) 100 D:3mm A or B Please conduct with us if you need tools such as fixture
