High Withstand Voltage Bias T(for normal temperature)
Model No. byt01
High withstand voltage (~1.5KV) bias T for room temperature.

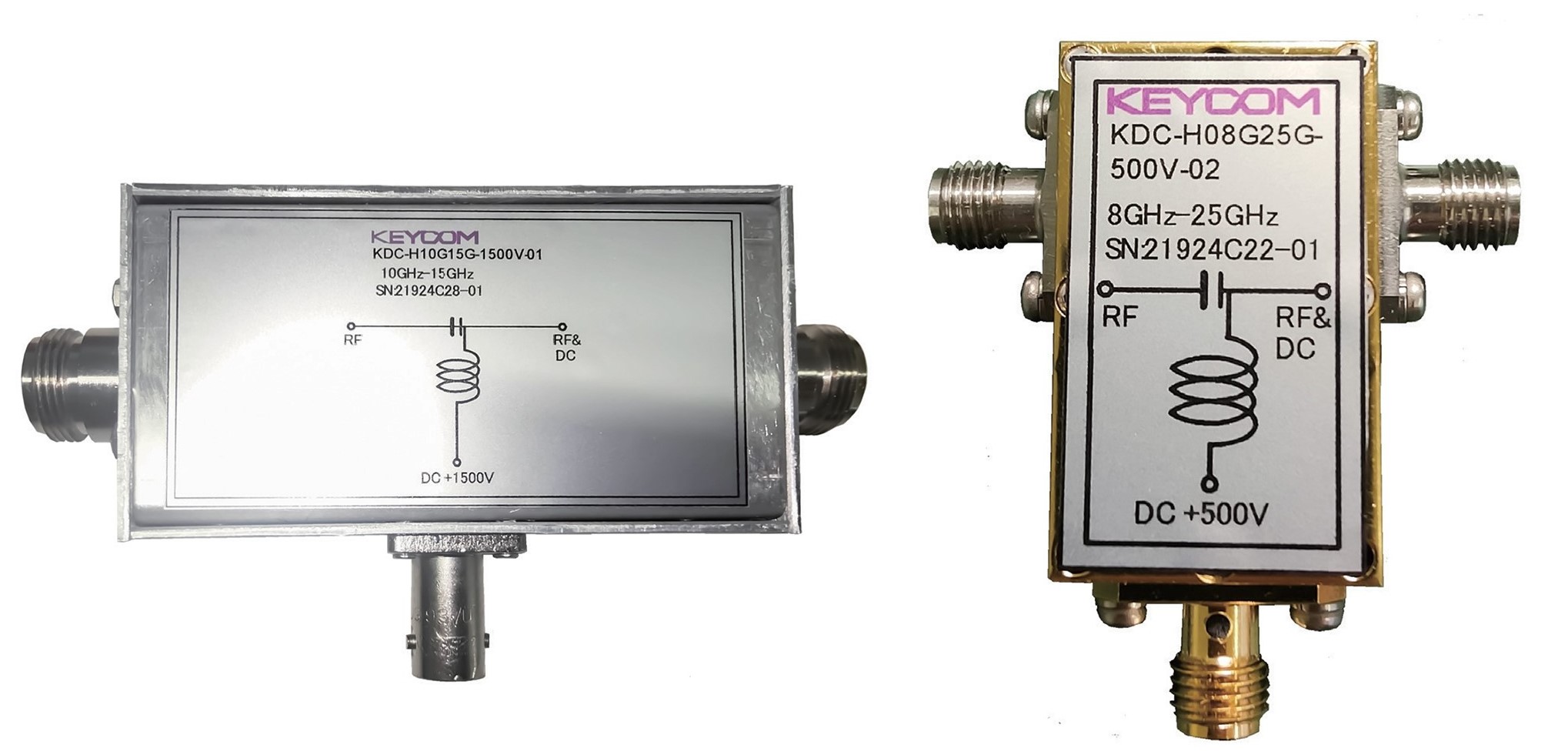

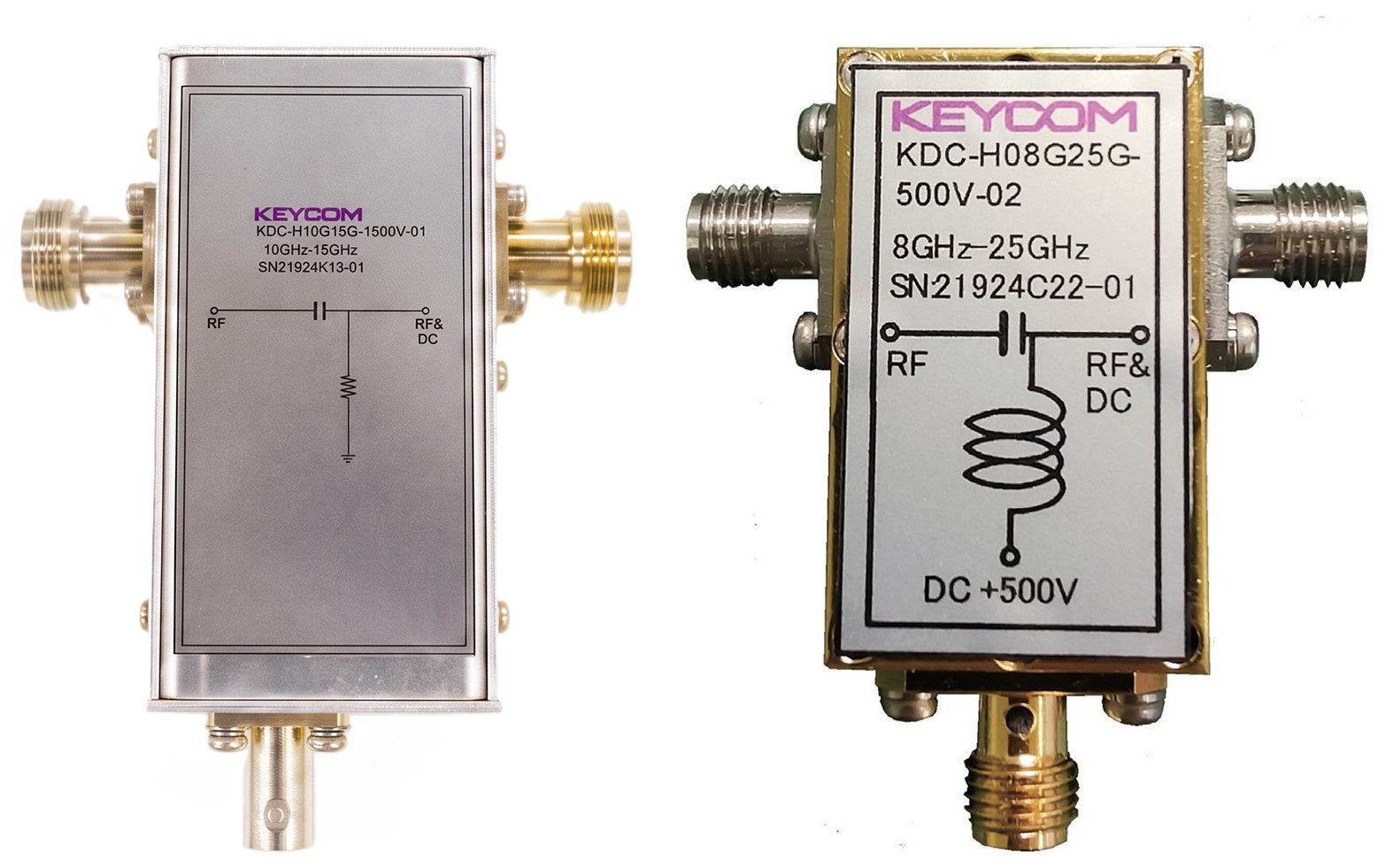

Product Image

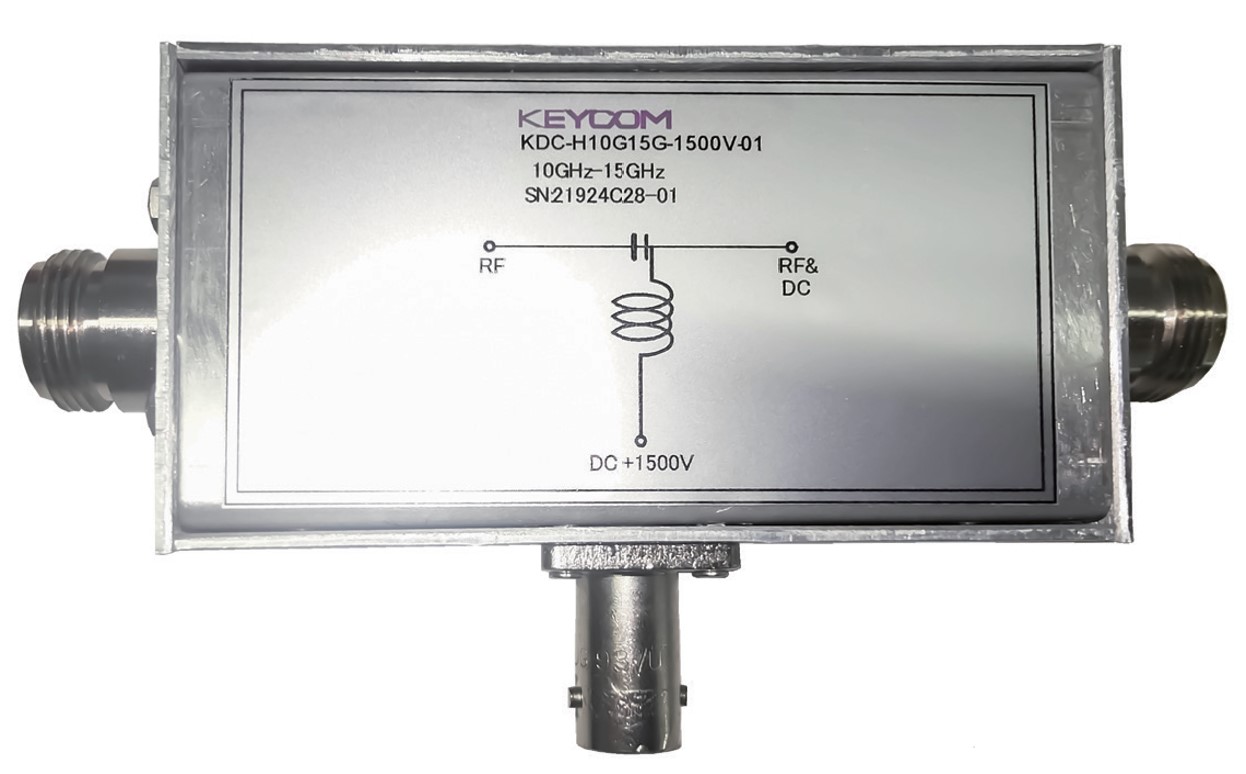

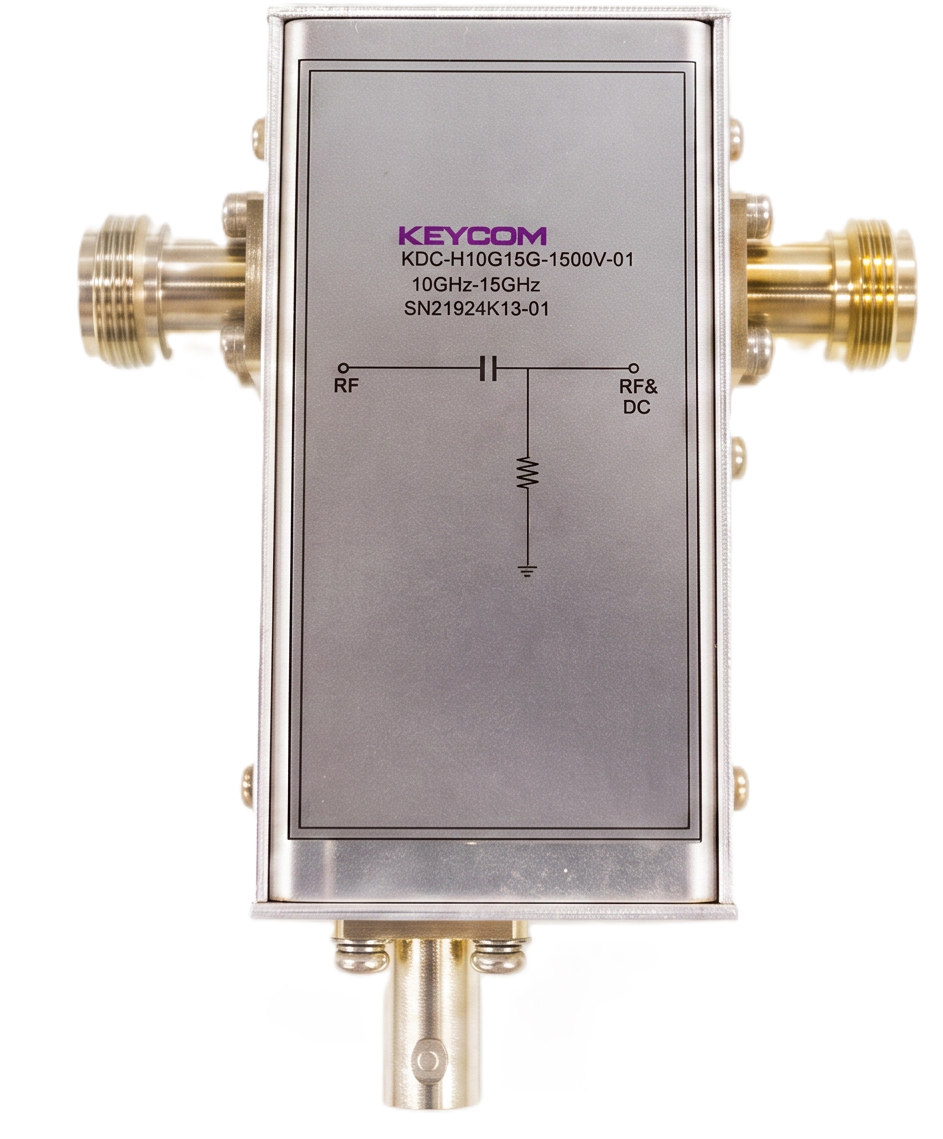

KDC-H10G15G-1500V-01 |

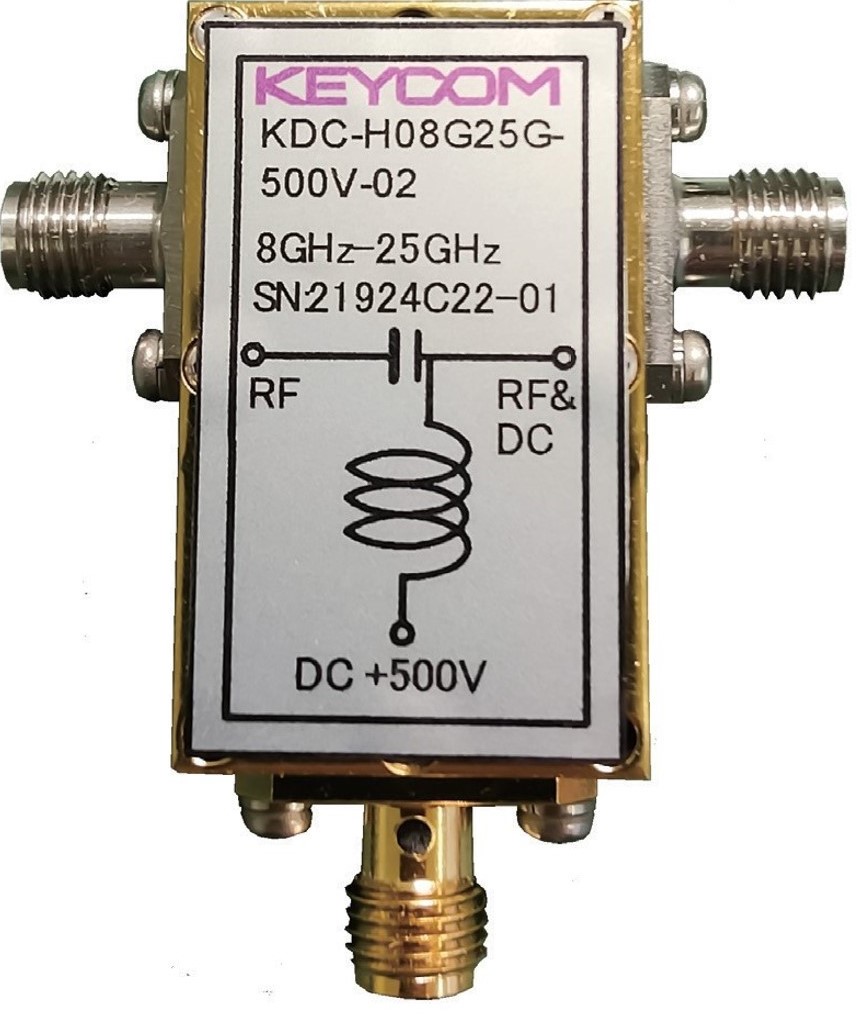

KDC-H08G25G-500V-02 |
 |
 |

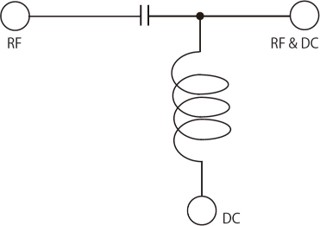

Schematic
Specifications
| Part No. |
KDC-H10G15G-1500V-01 |
KDC-H08G25G-500V-02 |
| Characteristic impedance [Ω] |
50 |
50 |
| Minimum frequency[Hz] |
10G |
8G |
| Maximum frequency[Hz] |
15G |
25G |
| DC Withstand Voltage [V] |
1.5k |
500 |
| DC Maximum supply current [mA] |
20 |
20 |
| Amount of reflection attenuation [dB] |
-3 |
-14 |
| Connector |
N(f),(f) |
K(f),(f) |
| Size [mm] |
40(W) × 84(L) × 31(H) |
20(W) × 33(L) × 12(H) |
