Millimeter-wave, DC Blocks

Model No. DCC01

The models that pass low frequency signals are suitable for super high speed pulse, as well as millimeter wave.

【Related Contents】
 👉 Products Line-up of Milliler wave & Microwave Components / Devices

Parts No. (Please consult with your KEYCOM representative for the specifications of your request.)

Parts No. DCC261 DCC262 DCC401 DCC402 DCC501 DCC502
Characteristic impedance [Ω] 50 50 50 50 50 50
Minimum frequency (-3dB) [Hz] 10k 3M 10k 3M 10k 3M
Maximum frequency [GHz] 26.5 26.5 40 40 50 50
Electric strength (max) [V] 15 50 15 50 15 50
Amount of reflection attenuation (max) [dB] -16 -16 -16 -16 -16 -16
Connector APC2.9(f)(f) APC2.9(f)(f) APC2.9(f)(f) APC2.9(f)(f) V(f)(f) V(f)(f)

* Size [mm] (without connectors) : 35(L)×15(W)×8(H)
* Please contact us when male connectors are required.

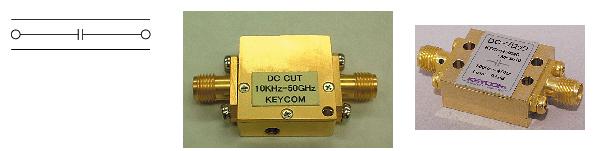

Configurations
