Also called a Split Cylinder Resonator, the system performs measurement by inserting a sheet sample between the resonators. Conforming Standards
JIS R1641,IPC-TM650 2.5.5.13
Electric Field Direction
Circularity parallel to the ground, circularity in the specimen surface (plane) direction
⇒ No confirmation of anisotropy
※It is critically important issue in development process whether there is anisotropy of materials used in electrical applications is an important development issue.
Therefore, please take the above into consideration when measuring a resin that tends to show anisotropy in the stretching or extrusion direction, or a resin composition filled with an anisotropic filler.
Specifications
| Items | Details |
|---|---|
| Frequency | 10GHz, 20GHz, 28GHz, 40GHz ※One frequency point per resonator（ex. 10GHz Resonator ⇒ Measurement at 10GHz) |
| Measurement range | Relative permittivity (Dk): 1～20 Dielectric loss tangent (Df): 0.0001～0.05 ※It depends on thickness of measurement sample |
| Measurement accuracy | Relative permittivity (Dk): ± 1% ※It depends on accuracy of VNA Dielectric loss tangent(Df): ± 5% ※It depends on accuracy of VNA |
| Sample size | Sheet with dielectric constant x thickness of 5mm or less. 10GHz～25GHz: about 50mm x 50mm approx. 25GHz～40GHz: 40mm x 40mm (ideal) ※30mm～40mm x 30mm or more (minimum size) |
| Conforming standards | JIS R1641,IPC-TM650 2.5.5.13 |
Ordering information
| Part Number | Name | Specifications |
|---|---|---|
| COE-10 | Cavity vertical movement device | |
| TER-10 | Resonator Kit (cable included) | For use near 10GHz |
| TER-15 | Resonator Kit (cable included) | For near 15GHz |
| TER-20 | Resonator Kit (cable included) | For near 20GHz |
| TER-28 | Resonator Kit (cable included) | For near 28GHz |
| TER-40 | Resonator Kit (cable included) | For near 40GHz |
| TER-10-H | Resonator Kit (cable included) For temperature change | For use near 10GHz |
| TER-15-H | Resonator Kit (cable included) For temperature change | For near 15GHz |
| TER-20-H | Resonator Kit (cable included) For temperature change | For near 20GHz |
| TER-28-H | Resonator Kit (cable included) For temperature change | For near 28GHz |
| TER-40-H | Resonator Kit (cable included) For temperature change | For near 40GHz |
| DMP-35 | Measurement program for TE mode cavity resonator | |
| DMP-35-H | Measurement program for TE mode cavity resonator For temperature change | |
| CM06 | Coaxial Cable Assembly | Appropriate cables are included (2), according to measurement frequency |
| VNA | Network Analyzer | Can be purchased together |
| PC | Windows PC | Can be purchased together |
| GP-01 | GPIB Interface | Can be purchased together |
Example of Temperature change Test

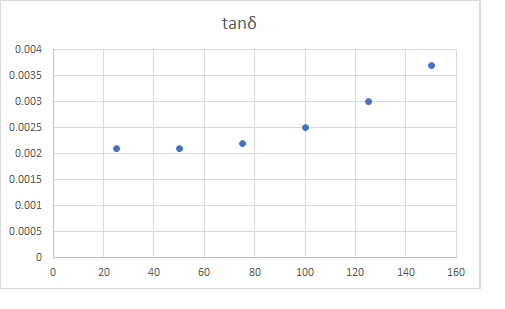

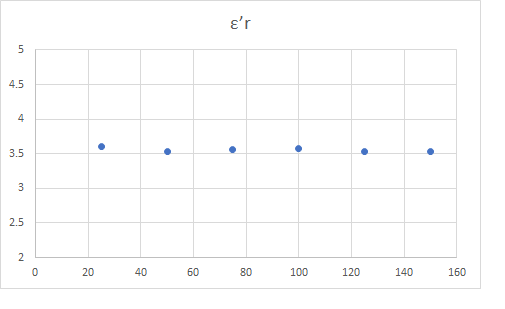

Temperature dependency of LCP
|
|
