Low frequency, Micro Strip Line Method
Electric Wave Absorber, Return Loss Measurement System

Model No. EAS08

EAS08 measures the return loss of a relatively small sample of electric wave absorber in the MHz range.

【Related Products】
👉 Products Line-up of Wave Absorption Rate Measurement System(Near-field / Far-field)

Specifications

Frequency range 1MHz - 1.7GHz
Specimen size 1000mm × 300mm
* The higher the measurement frequency is, the smaller the samples can be.

Ordering information

Product name Specifications Parts No.
Body (with short boad)   MSR-1MA
Measurement software, calibration and graphing for vector network analyzer DMP-26
for scalar network analyzer DMP-27
Microwave cable and adaptor
Electric wave absorption material(for small sample)
GPIB cable   GP-01
Vector network analyzer, Scalar network analyzer Available upon request . Please request the model of your choice.
Windows　PC (with printer) Available upon request . Please request the model of your choice.

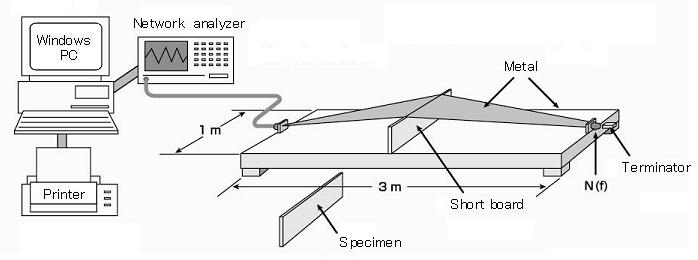

Configurations
