KEYCOM provides solutions in the 300 GHz to 1 μHz frequency range (SHF/EHF/MW/UHF/VHF/ULF).
We undertake designing, manufacturing and measuring. Please feel free to contact us.

Radio wave absorption panel

Model No. EMC83

Radio wave absorption panel which is easy to carry, set up.

We make it according to the frequency you require for testing.

Available in two types: with or without casters.

Moreover, by utilizing our superior knowledge of radio wave absorbing materials, we can manufacture Anechoic Box, Anechoic Chamber(in cooperation with partner companies).

【Related Contents】
👉  EMC Countermeasure Products Line-up
👉  Radio wave absorption sheet

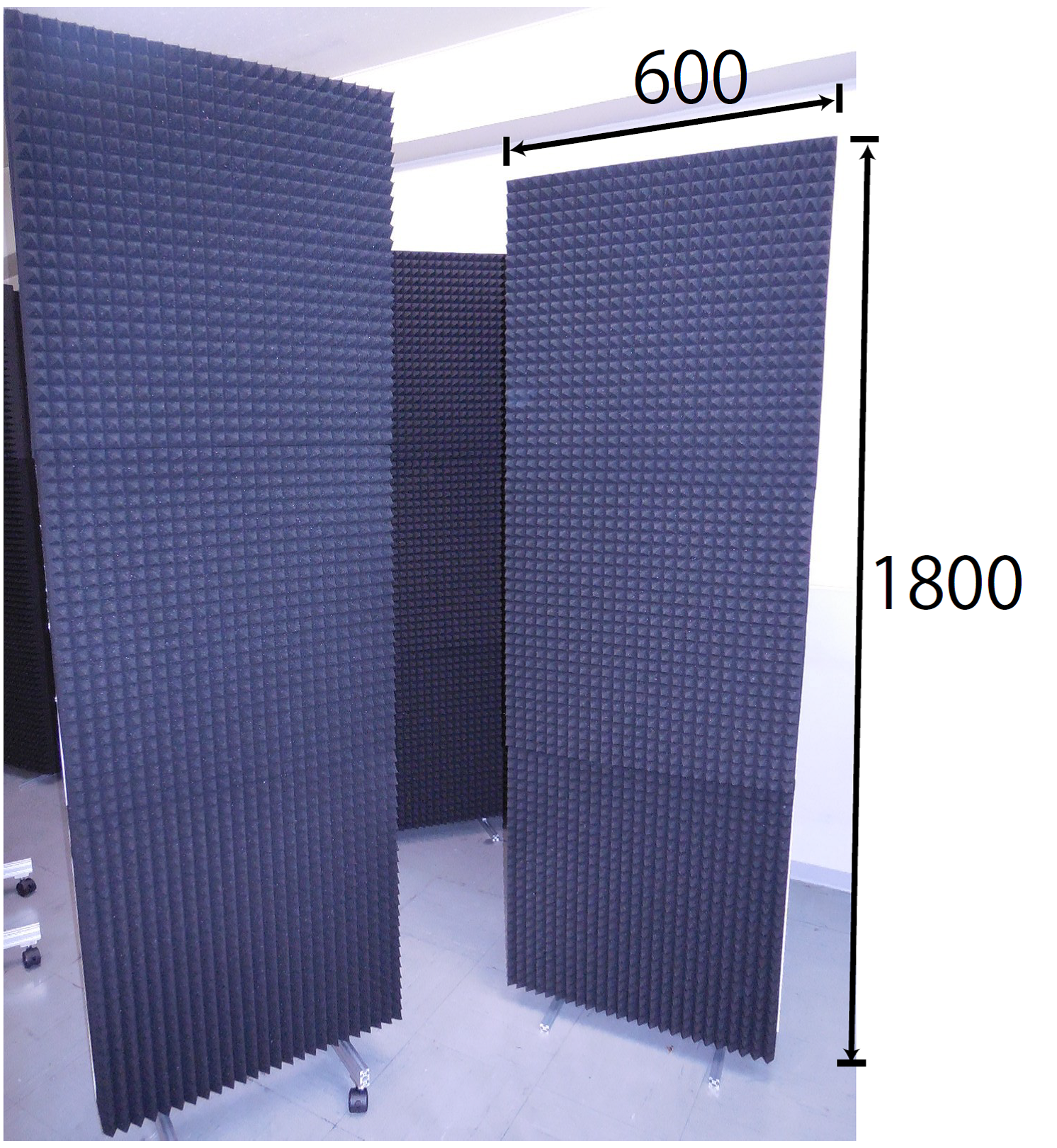

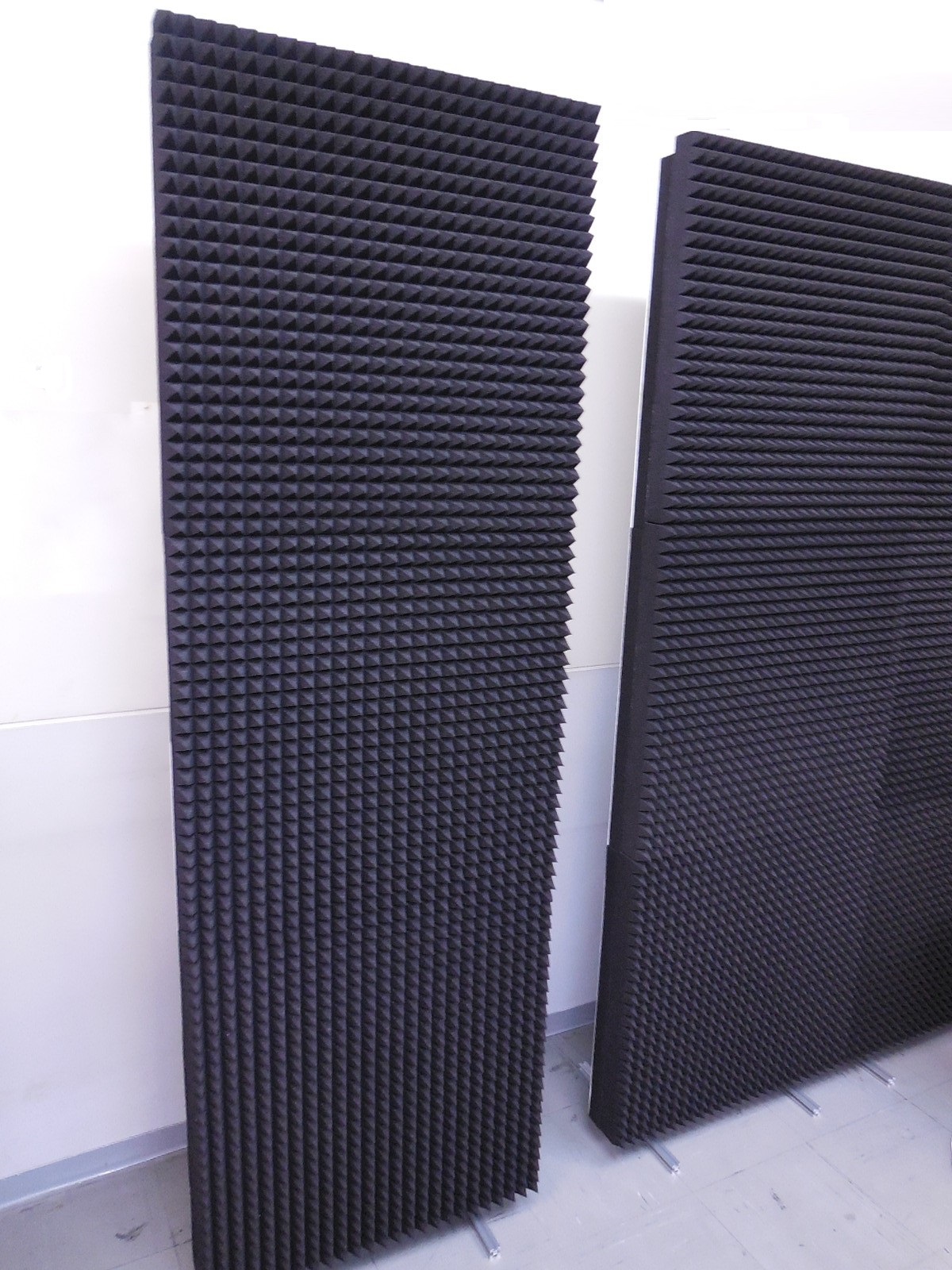

Without caster With caster


Ordering Information (Please inform us of Model No., or any other requests.)

Model No. (Please specify "with caster" or "without caster") Size(mm) Frequency range(GHz) Return loss(dB) Features
EMC83/50-80G-P-01 600W x 2000 x 300 1-10GHz 15 or more
EMC83/50-80G-P-02 600W x 2000 x 300 22-90 22 - 60GHz: 45 or more/60 - 90GHz: 50 or more 2-layered structure
EMC83/60-90G-P-03 600W x 2000 x 300 60-90 50 or more Rain and wind resistant type

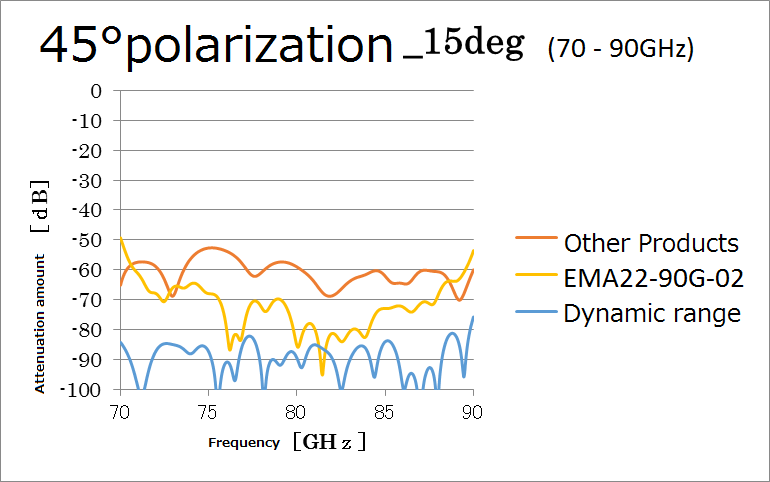

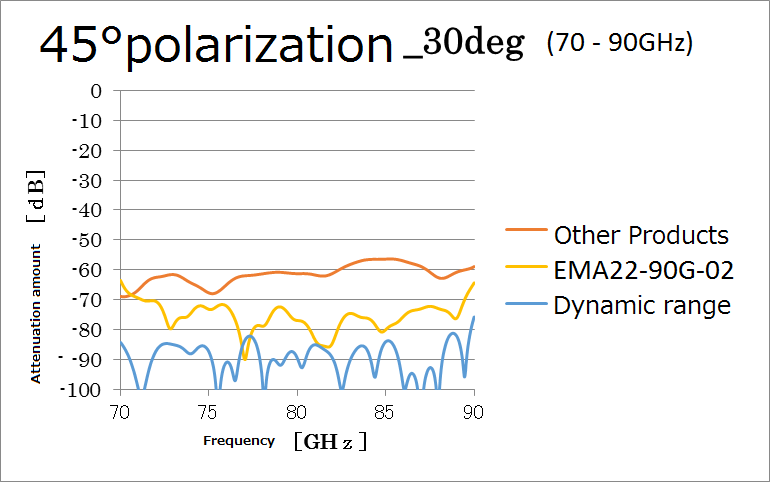

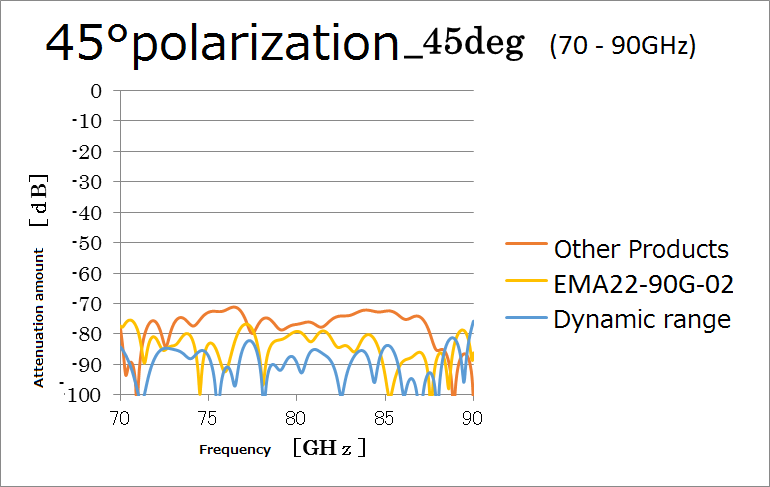

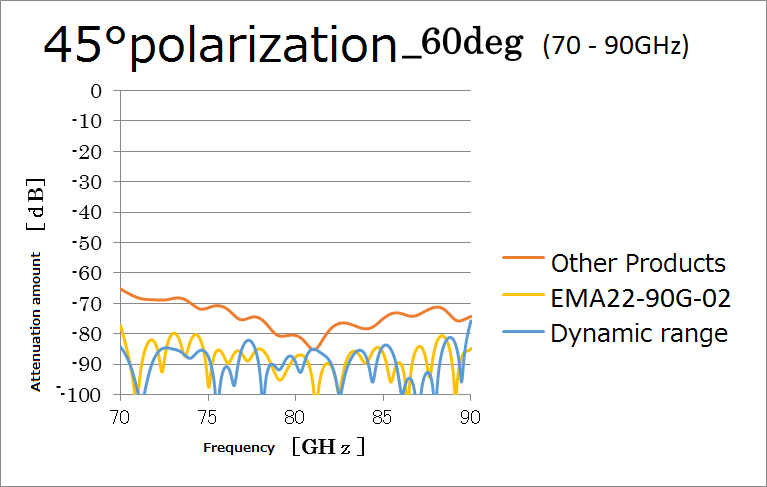

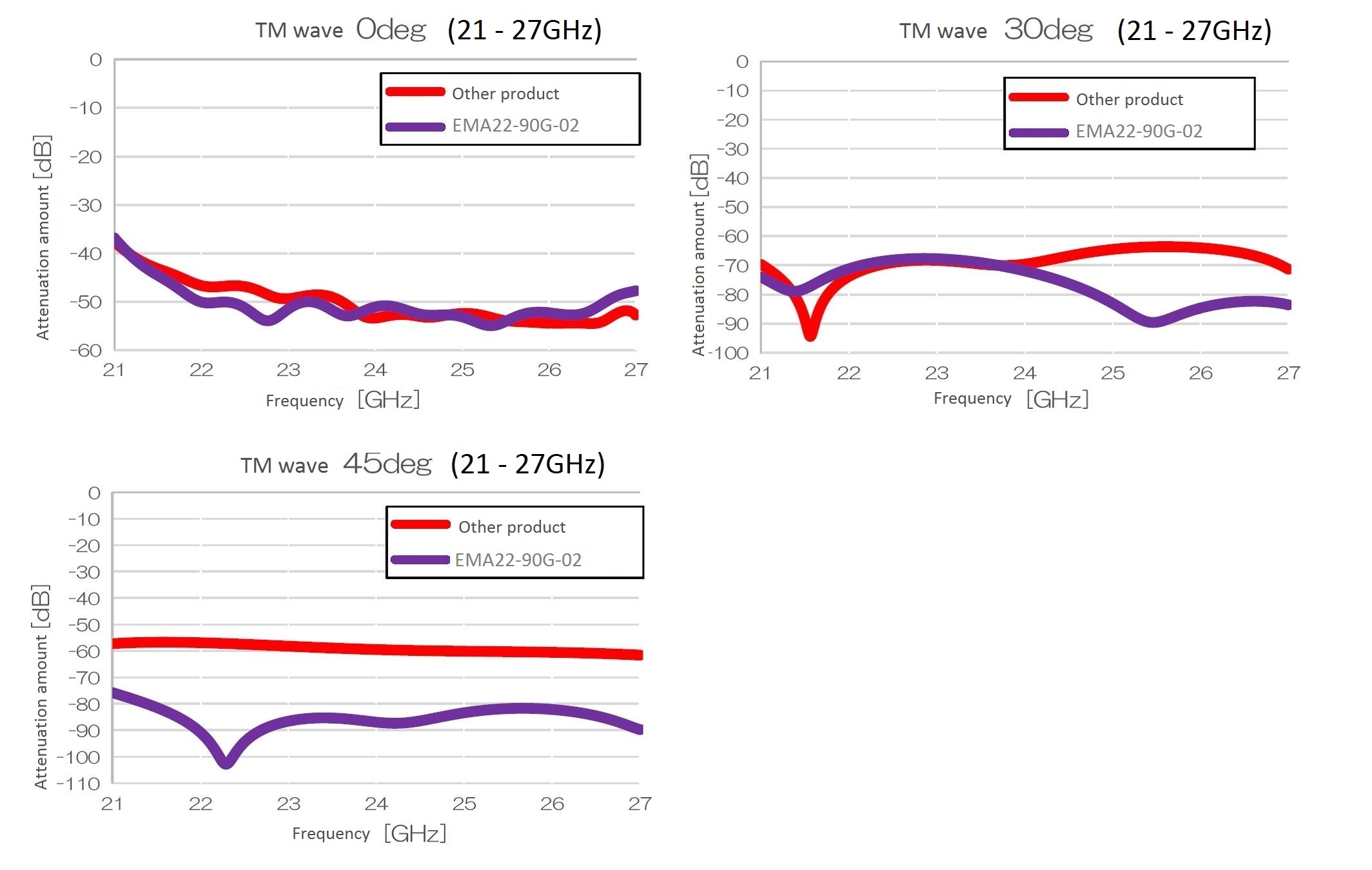

Performance comparison results
