Anechoic Box

Model No. ANB-02
Feature

This is an ideal anechoic box in which you can test functionality of radars such as measuring distance accuracy, power at a target point, angle accuracy of horizontal, vertical direction.

【Related Contents】
👉  EMC Countermeasure Products Line-up
👉  Radio wave absorption sheet

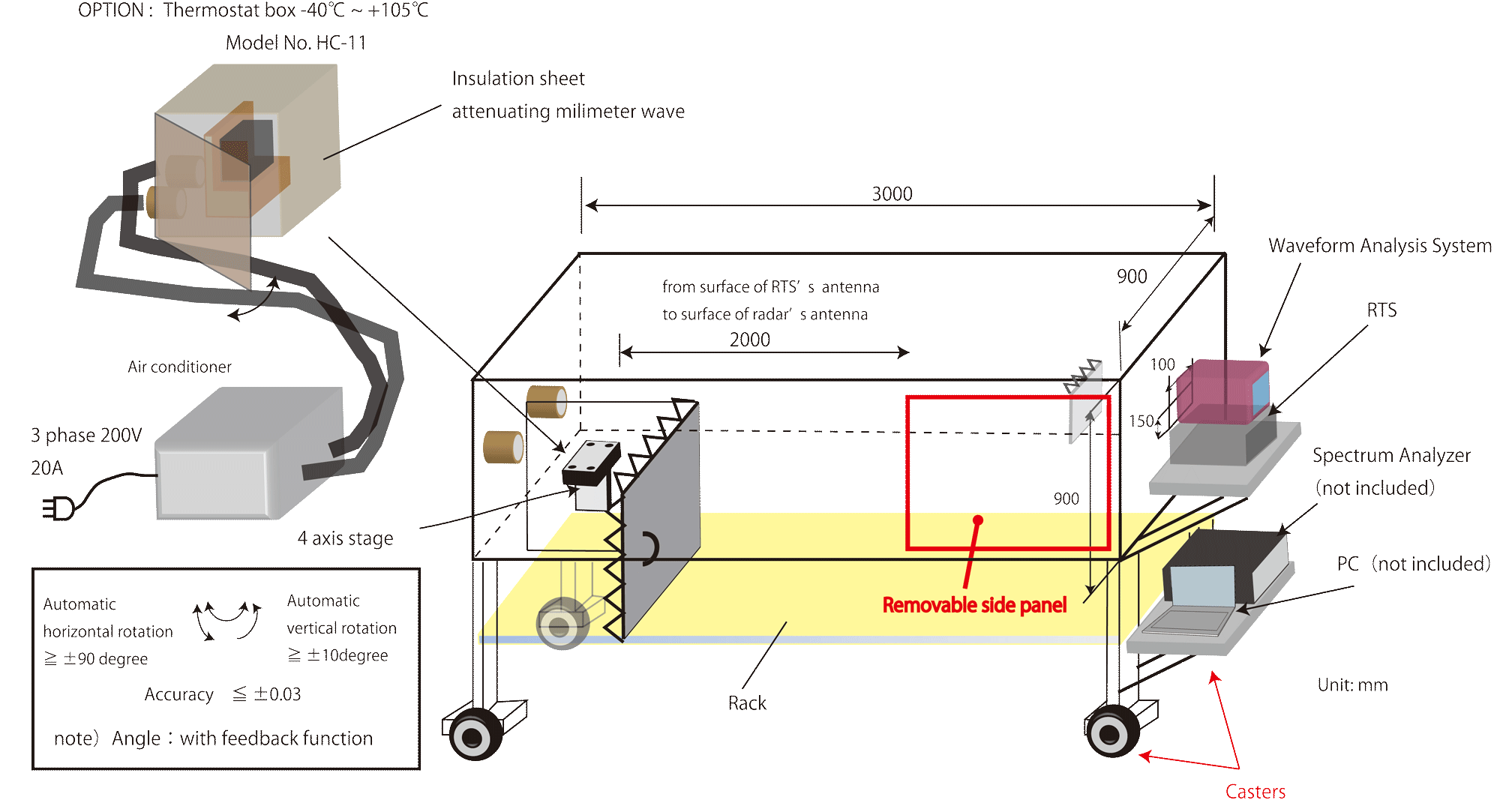

Configuration Example

*Thermostat box is a option.

Specification

Model No. ANB-02
Size(mm) 3000W x 900D x 900H
Rotator Vertical rotation : ±10degree
Horizontal rotation : ±10degree
Up, Down : 7.5mm eacn
Left, Right : 2.5mm each
Accuracy : ±0.3mm or less
Absorption 70GHz ~ 85GHz
70dB Min.



Ordering information - Please be advise us of Model No., and any other requests.

Please contact us by Email: info@keycom.co.jp.
