Electromagnetic Wave Transmissive Thermostat Chamber
(-60°C ~+200°C)

Model No. EMD01
This thermostat chamber enables temperature characteristics measurement on radome, cover, electromagnetic wave absorbent, or shielding material.
It is comprised of high or low temperature blowers, and a electromagnetic transmissive heat-retaining box in which your sample is measured.

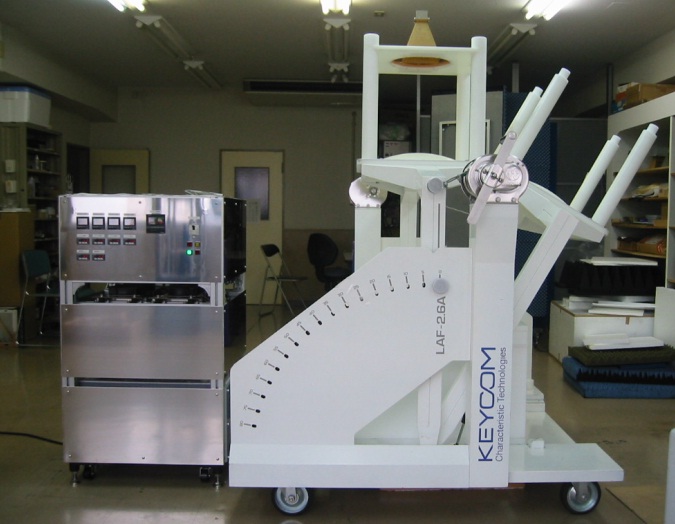

(Pictured above is the EMD01 with KEYCOM’s shield effect measurement system on the right. The shield effect measurement system is sold separately.)
EMD01 can be designed and manufactured to your specific requests.

Ordering information (Please order by model number or tell us your request)

Name Model number Description Dimension (cm)

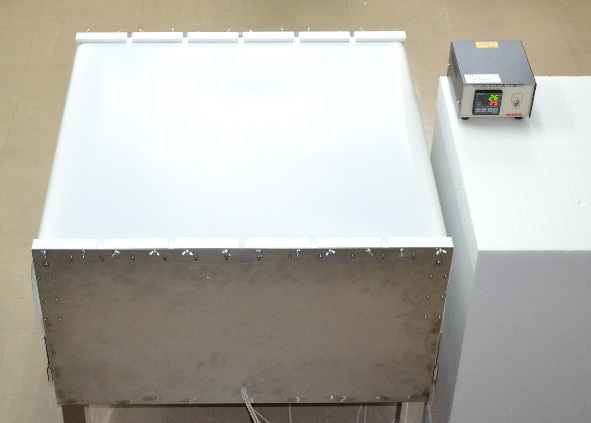

Electromagnetic transmissive heat-retaining box, high temperature

DPS-DOME-TR-1-H

 +30°C~+200°C inside dimension: approx. 50×50×10
High temperature blower DPS-DOME-TR-2-H +30°C~+200°C external dimension: approx. 65×65×50 (including legs)
Electromagnetic transmissive heat-retaining box, low temperature DPS-DOME-TR-1-L -60°C~+40°C inside dimension: approx. 50×50×10
Low temperature blower DPS-DOME-TR-2-L -100°C~+50°C
 external dimension: approx. 65×65×120 (including legs)

Features

Monitoring function

・Temperature monitoring function can be available with thermocouples installed inside the electromagnetic transmissive heat-retaining box.
・The lid of the electromagnetic transmissive heat-retaining box can be opened and closed so as to enable heat distribution monitoring from the outside. (high temperature)

Operation functions

・If you set the target temperature on control board, the blower gets automatically activated. Values of the target temperature and the temperature inside the electromagnetic transmissive heat-retaining box are shown on the indicator.

Performance

・Transmission rate of the electromagnetic transmissive heat-retaining box: below 1dB loss (1GHz~18GHz)
・Stability of heat retention: approx. ±5°C

Configuration

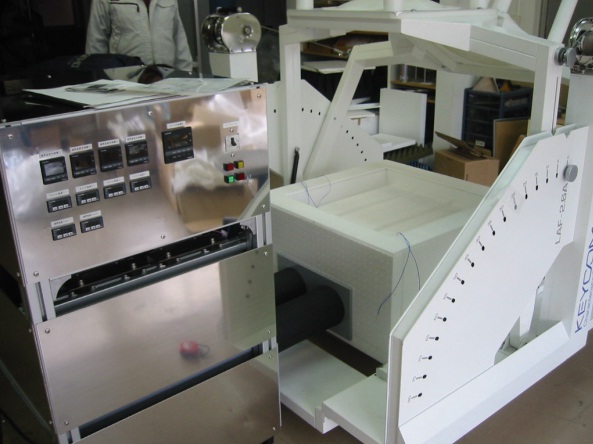

High temperature electromagnetic transmissive heat-retaining box and high temperature blower

Low temperature electromagnetic transmissive heat-retaining box and low temperature blower (jig on the right is not included)
