Transportable ESR(EPR) measurement system
Model No. ESR04
ESR04 is a very compact, easy-to-handle desktop ESR/EPR (Electron Spin Resonator) system with higher sensitivity than standard X band ESR/EPR (Electron Spin Resonator) system.
Adoption of a rare earth permanent magnet realized the miniaturization with a weight of about 27 kg.
An optional automatic liquid transmission unit will allow you to perform mixed measurement and analysis of a solution sample under PC control.
ESR04 will also expand the field of ESR applications by leaps and bounds, including process monitoring, desktop ESR sensing by PC on hand and remote control.
Single purpose use – Magnetic field and frequency can be custom designed according to your specific purpose.
【Related Contents】
👉
ESR measurement system
Specifications
| Items |
Details |
| Detection sensitivity (standard) |
at 4mW, 1μM TEMPOL water Solution : S/N≥10
Flat cell use (At 80mW, sensitivity becomes better.) |
| Microwave frequency (standard) |
9.6 GHz |
| Microwave strength (standard) |
1 - 80 mW |
| Magnetic field strength (standard) |
340 mT |
| Magnetic field sweep width (standard) |
15 mT |
| Control and measuring soft environment |
For Windows PC, It records the data in CSV form |
| Device (with power supply) size |
28(W)ｘ26(D)ｘ35(H)cm, weight - about 30kg |
| Power supply (standard) |
AC 100 V - 240 V, 100 W |
Ordering Info(Please inform us of Model No. or your requirement)
| Name |
Model No. |
Specifications |
| Main body |
ESR-X10S |
|
| Liquid transportation unit |
LP-01 |
|
| Software |
SOP-01 |
Operation software for liquid measurement |
| SOP-02 |
Operation software for irradiated food measurement |
| SSOP-01 |
Software for ESR analysis |
| Notebook-sized Windows PC (with printer) |
PC-01 |
|

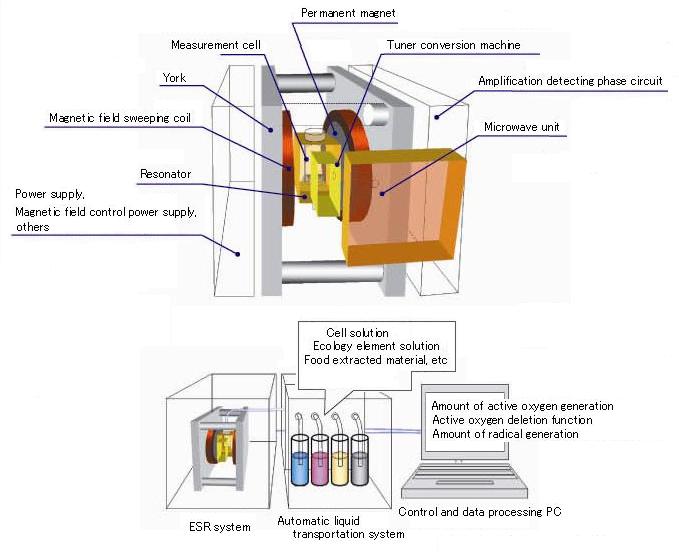

Configurations
