Microwave Coaxial Type Bandpass Filter

Model No. FLT02

KEYCOM's bandpass filters have high out-of-band attenuation and low second-order harmonics.
We can design filters to meet your specific needs, please feel free to contact us.

👉 Products Line-up of Filter
👉 Products Line-up of Milliler wave & Microwave Components / Devices

Ordering Information

Ordering Information

Part No.	Passband Center frequency fo MHz	3dB Passband MHz	Passband Insertion loss dB	Out-of-band attenuation		Input/Output VSWR	Input/Output	Size mm(max.) W×L×H
Part No.	Passband Center frequency fo MHz	3dB Passband MHz	Passband Insertion loss dB	Low Frequency Side	High Frequency Side	Input/Output VSWR	Input/Output	Size mm(max.) W×L×H
BPF3000-1	3.0	0.15min.	4.0max.	DC~2.7GHz 　 30dBmin.	30dBmin for 2fo.	1.9max	SMA(f)	140×40×30
BPF5000-1	5.0	0.2min.	4.0max.	DC~4GHz 　 30dBmin.	30dBmin for 2fo.	1.9max	SMA(f)	140×40×30
BPF10000-1	10.0	0.35min.	4.0max.	DC~8GHz 　 30dBmin.	2foにて30dBmin.	1.9max	SMA(f)	120×40×30
BPF15000-1	15.0	0.4min.	4.0max.	DC~13GHz 　 30dBmin.	30dBmin for 2fo.	1.9max	SMA(f)	120×40×30
BPF20000-1	20.0	0.4min.	4.0max.	DC~17GHz 　 30dBmin.	30dBmin for 2fo.	1.9max	SMA(f)	120×40×30

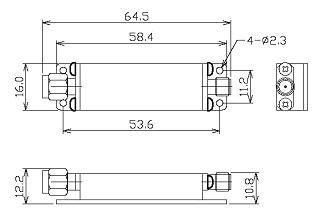

Configurations
