Free space, Standing wave measurement system

Model No. FSSWM02

Feature

This is a system to measure anechoic characteristics in an anechoic chamber.

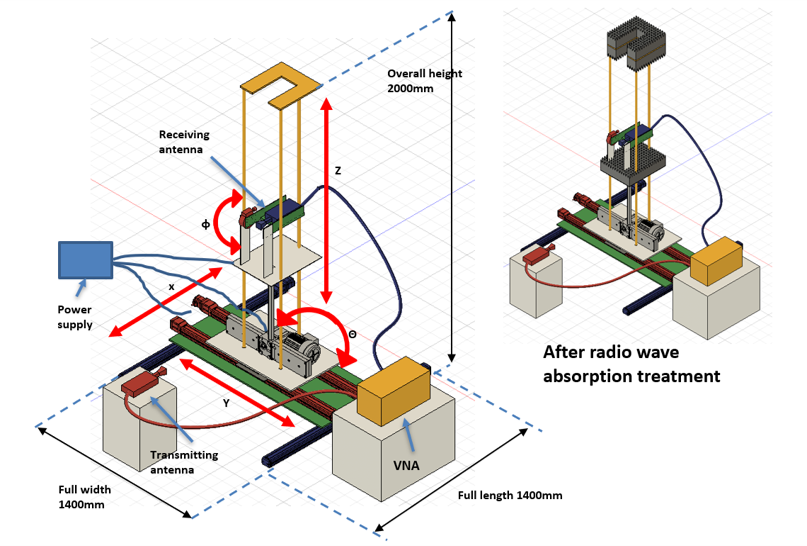

The receiving antenna can be moved up, down, left and right electrically, and its angle can also be adjusted flexibly for more accurate evaluation.

Configurations

Spcifications

Part	Details	Quantity
Stage unit ・X,Y,Z motor-driven stage ・θ ,φ manual stage	X,Y,Z movable ramge:1m, motor-driven pitch:1mm θ : 360°,10°pitch, manual elevation(φ) : -60~90°, 10°pitch	1 unit
Software for driving stage	Yes *See figure below	1 set
Horn antenna	WR12, gain 23dBi, 2 pieces in total	1 set
Metal waveguide	straight type and twisted type (90°) WR-12, 2 pieces each, total 4 pieces	1 set
Radio wave absorption treatment	Processed and attached to the top panel and millimeter wave receiving unit	1 set
VNA (including millimeter wave section)	Prepared seperately	1 set

Software general specifications for FSSWM-02

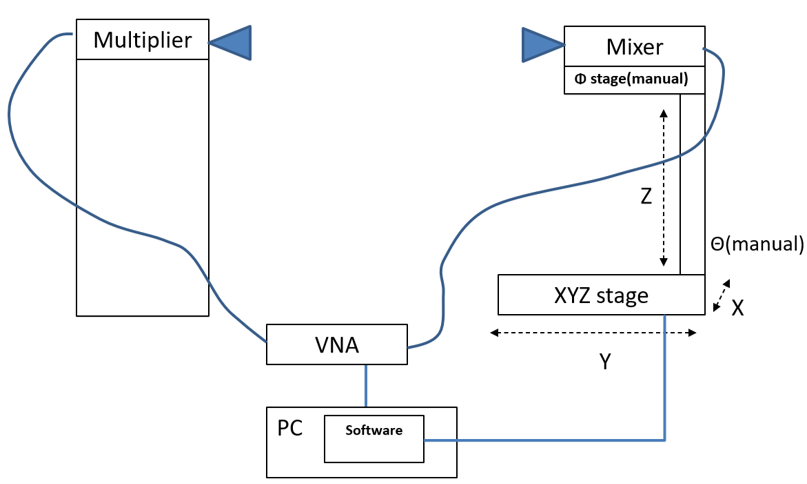

You can control the XYZ stage and set the XYZ position of the antenna from your PC.

We implement customized measurement functions in your measurement equipment.
This makes it possible to control the VNA and acquire measurement data via your own PC.

Implement the schedule creation function by specifying the measurement location and measurement timing.
Multiple measurements can be performed automatically using the created schedule.

We provide an SDK for controlling the XYZ stage, so you can develop your own XYZ control programs.
