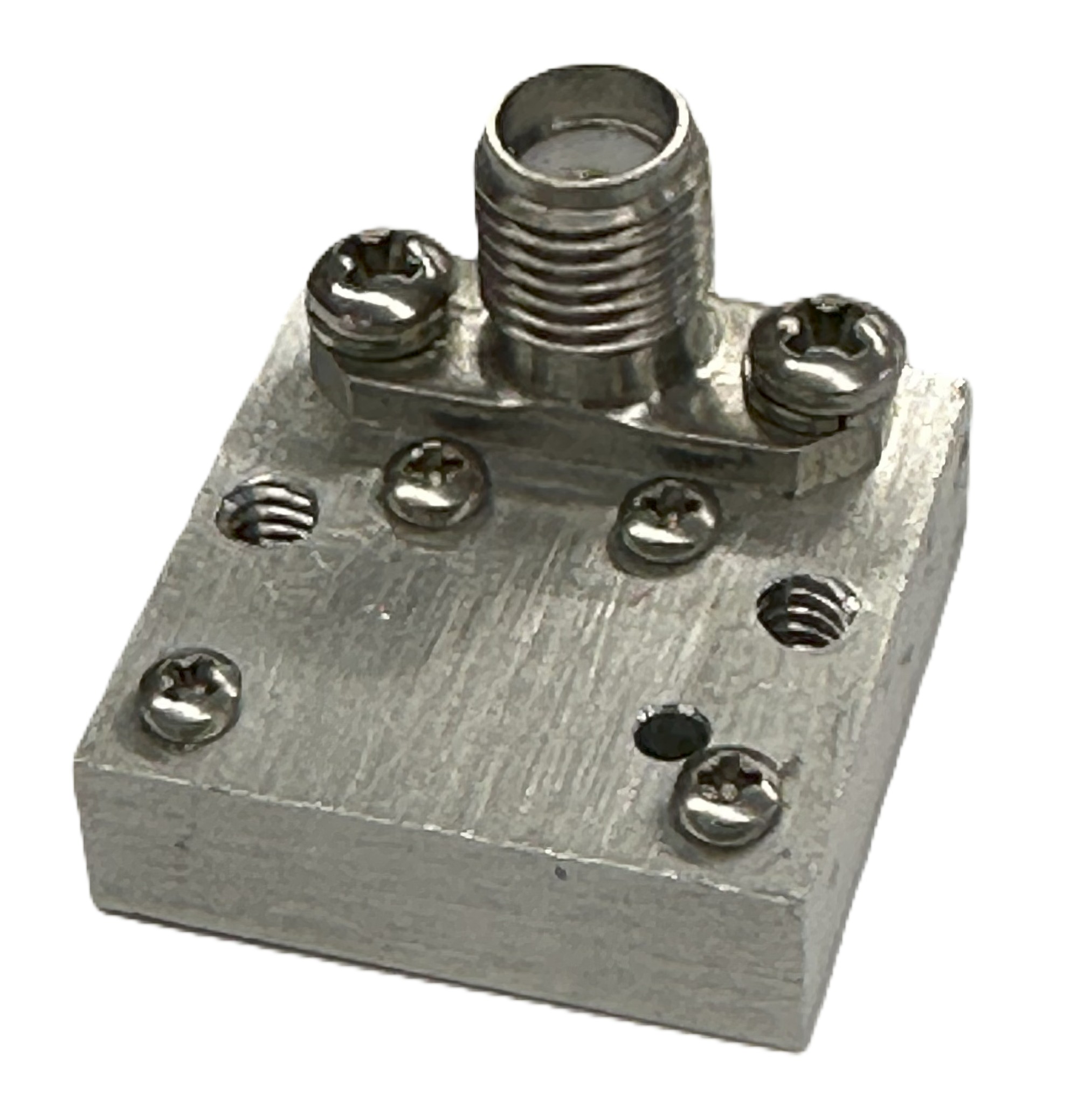

Harmonic mixer
Model No. HMX02
High-sensitivity, wide-band harmonic mixer with a hybrid configuration of silicon beam lead diodes.
This circuit mixes the received signal with the oscillating signal to obtain an output signal, which is output from the output terminal.
Ordering Information
| Parts No. |
Frequenct(GHz) |
Sensitivity(min.dBm) |
Waveguide standard |
Flange standard |
| HMX26 |
18-26.5 |
-95 |
WR-42 |
UG595 |
| HMX40 |
26.5-40 |
-85 |
WR-28 |
UG599 |
| HMX50 |
33-50 |
-80 |
WR-22 |
UG383 |
| HMX60 |
40-60 |
-78 |
WR-19 |
UG383 |
| HMX75 |
50-75 |
-75 |
WR-15 |
UG385 |
| HMX90 |
60-90 |
-72 |
WR-12 |
UG387 |
| HMX110 |
75-110 |
-70 |
WR-10 |
UG387 |
| HMX140 |
90-140 |
-68 |
WR-8 |
UG387 |
| HMX170 |
110-170 |
-64 |
WR-6 |
UG387 |
| HMX220 |
140-220 |
-50 |
WR-5 |
UG387 |
| HMX260 |
170-260 |
-40 |
WR-4 |
UG387 |
| HMX325 |
220-325 |
-30 |
WR-3 |
UG387 |
※All connectors on the LO/IF pins are SMA(f).

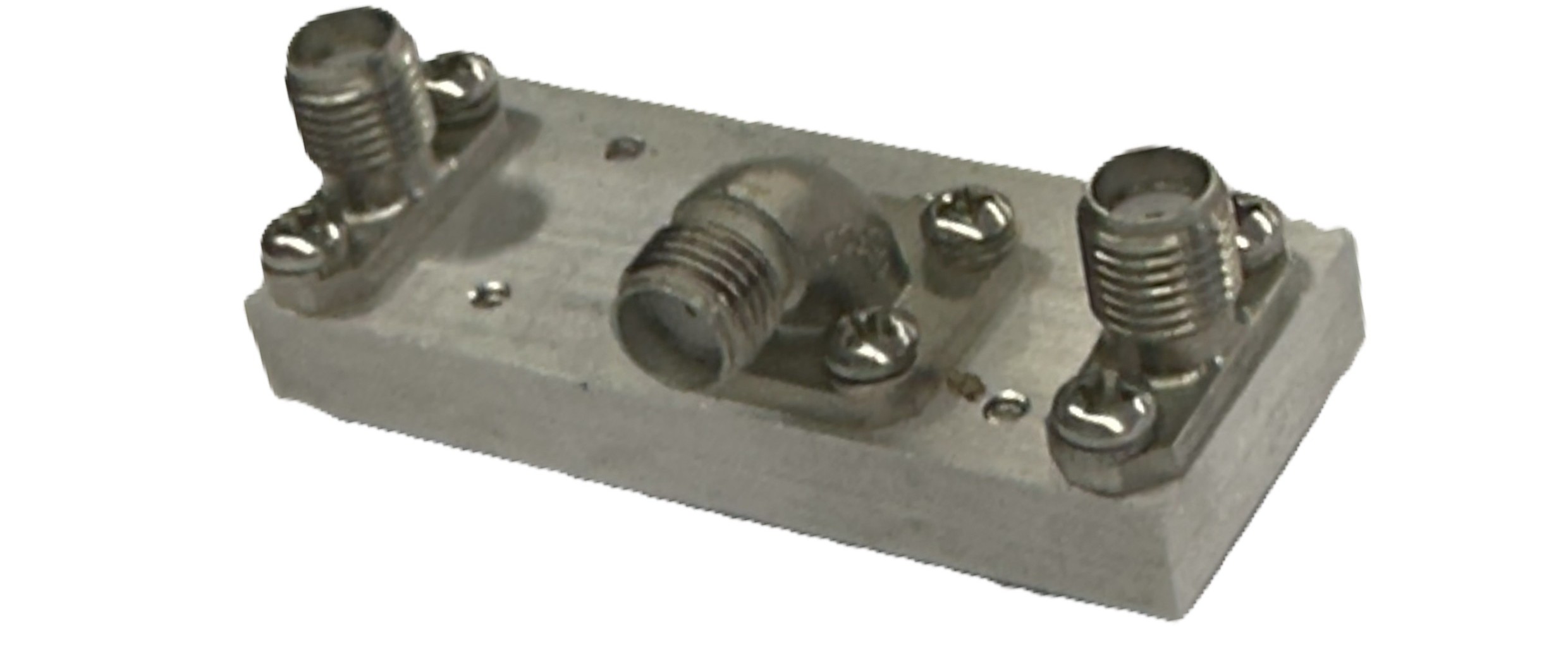

Diplexer is available as an accessory
| Parts No. |
IF Frequency range(GHz) |
LO Frequency range(GHz) |
| DUP1 |
DC-1 |
1.8-7.5 |
| DUP2 |
DC-1 |
5-20 |
| DUP3 |
DC-2.5 |
5-20 |
※DUP3 is recommended above 100 GHz.
|
 |

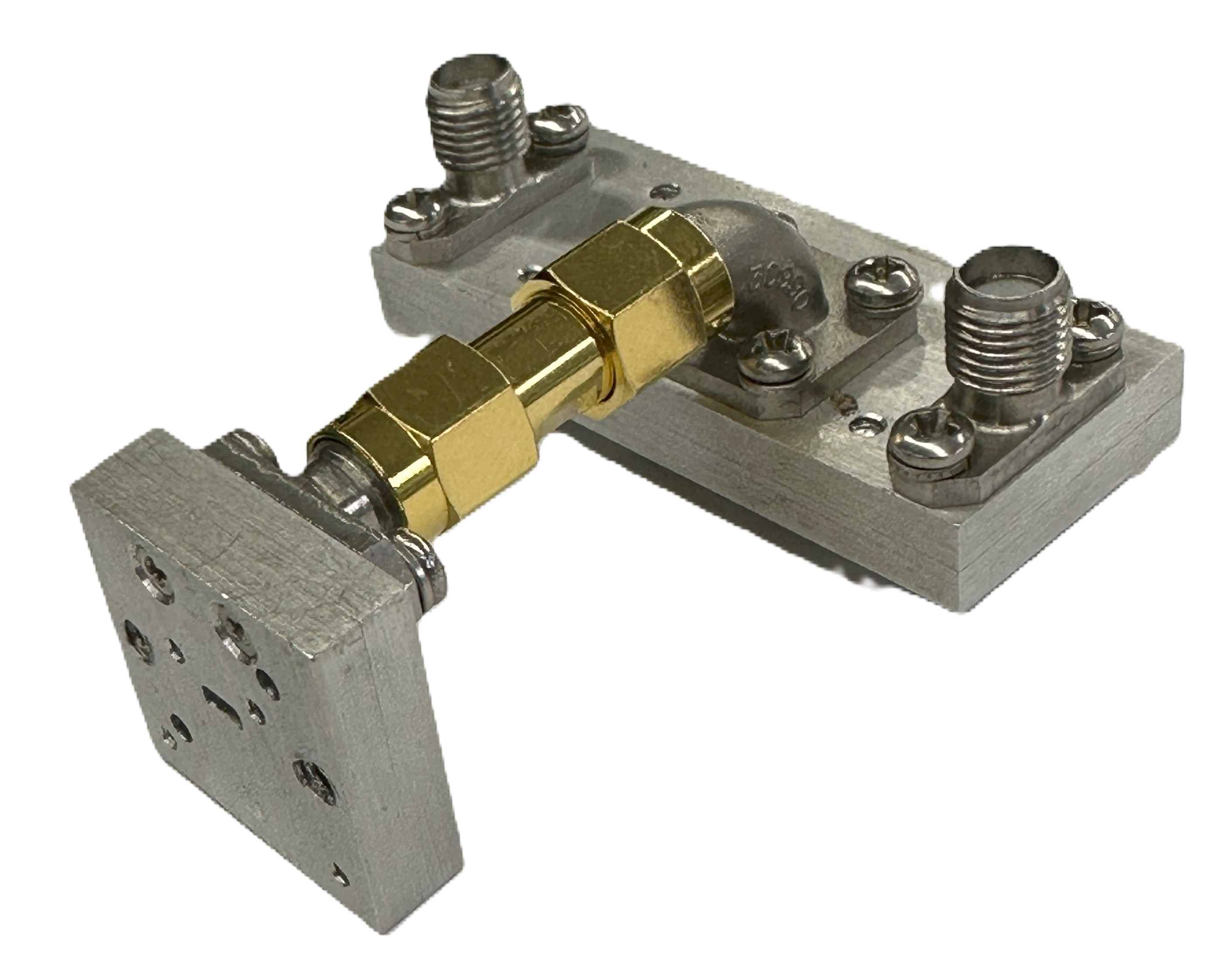

Harmonic mixer and Diplexer Connection image
