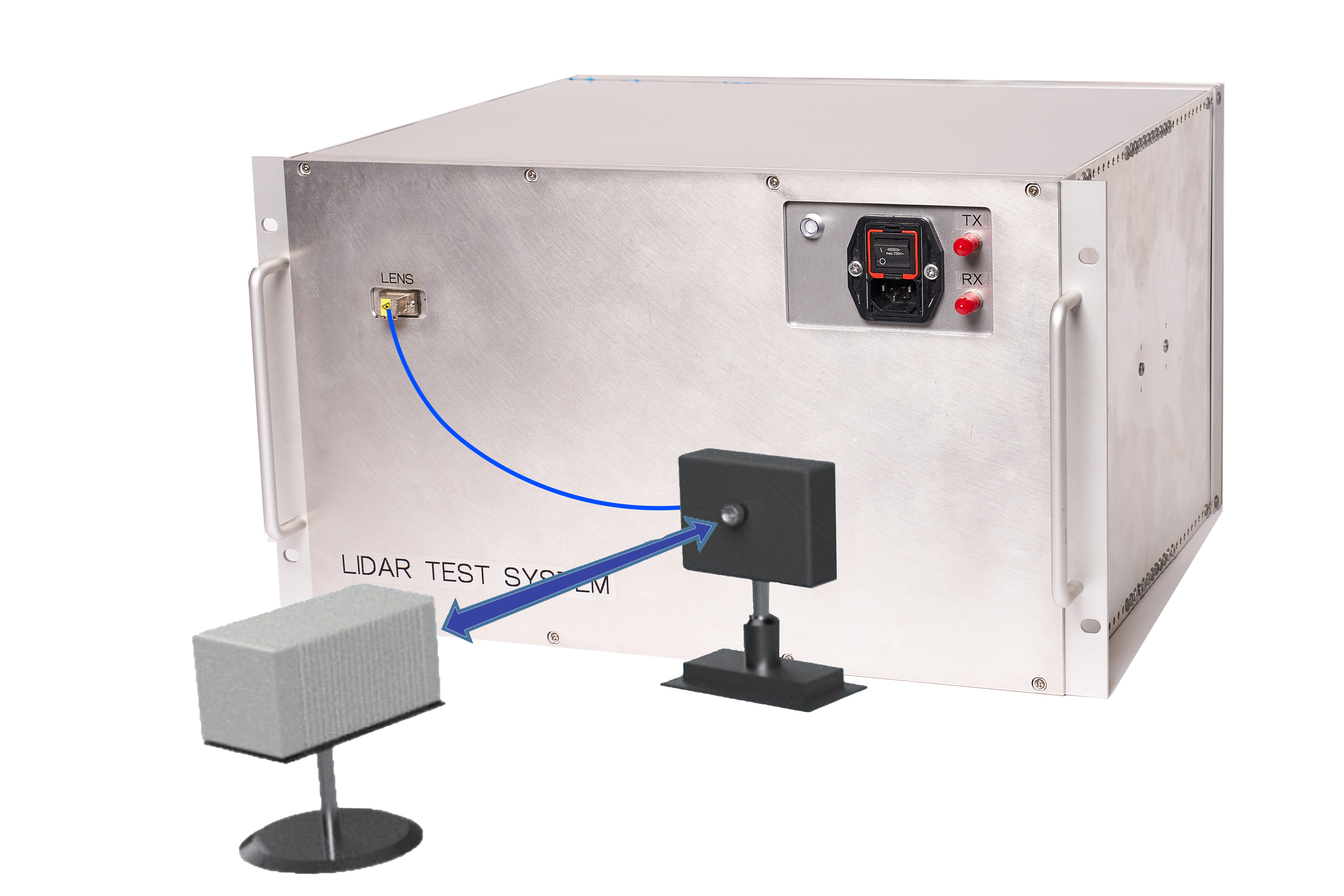

LiDAR TEST SYSTEM(LTS) with EMC countermeasure Moving target type

Model No. LTS-EMC

  • Keycom’s LiDAR Test System series now includes a moving target type.
  • This type enables more realistic testing by varying the relative distance (1.5m to 300m*).
  • The system is very compact, so that it can be used on a desk in a room for smooth verification of LiDAR functions.
    • * The minimum distance depends on the cable length L0 and the clearance distance L1.

    Specifications

    Items Details
    LiDAR method ToF(Time of Flight), FMCW
    Wavelength 905nm, 1550nm（Collimator lens replacement required）
    Distance 1.5m～300m
    * The shortest distance depends on the cable length L0 and the space distance L1.
    Distance step 0.25m
    Distance attenuation Calculation condition is 1/R2, simulate the attenuation of reflected light due to diffusion caused by the distance of an object.
    * When the distance attenuation function is turned on and the distance becomes 30m or more.
    Reflectance Variable（0 ～ -10dB）,simulate the ratio of reflected light intensity with respect to the 1/R diffusion of the object.
    * When the distance attenuation function is turned on and the distance becomes 30m or more.
    Reflectance step 1dB
    Moving Target function equipped
    Control I/F CAN
    Size L:450mm, W:430mm, H177mm
    Power 85 ~ 240 V AC , 50 ~ 60Hz
