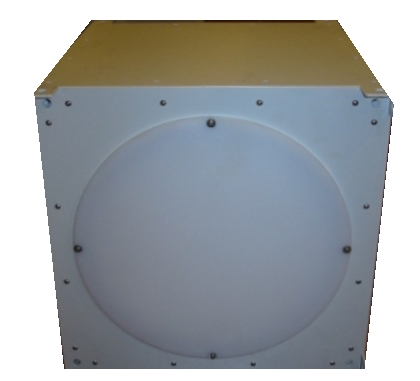

Millimeter Wave Lens

Model No. MMS06

Millimeter wave lenses can convert spherical waves into plane waves, which brings sharp directivity.

KEYCOM offers a complete line of millimeter wave lenses for microwave, millimeter wave and submillimeter wave applications upon your requests.

Our unique anti-reflection coating solves the problem of increased insertion loss due to reflection of radio waves on the lens surface and resonance due to multiple reflections.

Configuration

Millimeter-wave lens

ML F ARL
Lens effective diameter [mm]
030,050,100,200,300
  Focal length [mm]
030,050,100,200,300
Frequency to be used GHz
Enter when anti-reflection film is used (for both sides).
*The standard diameter including the lens support is 10% larger than the lens effective diameter.

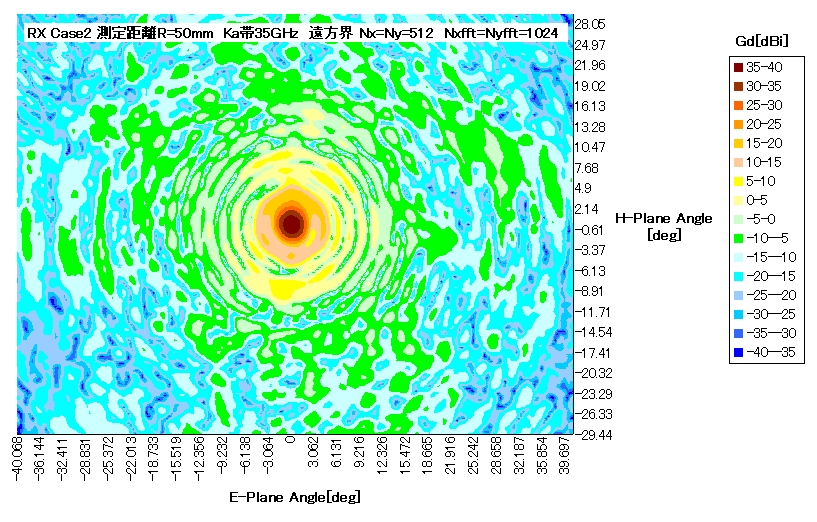

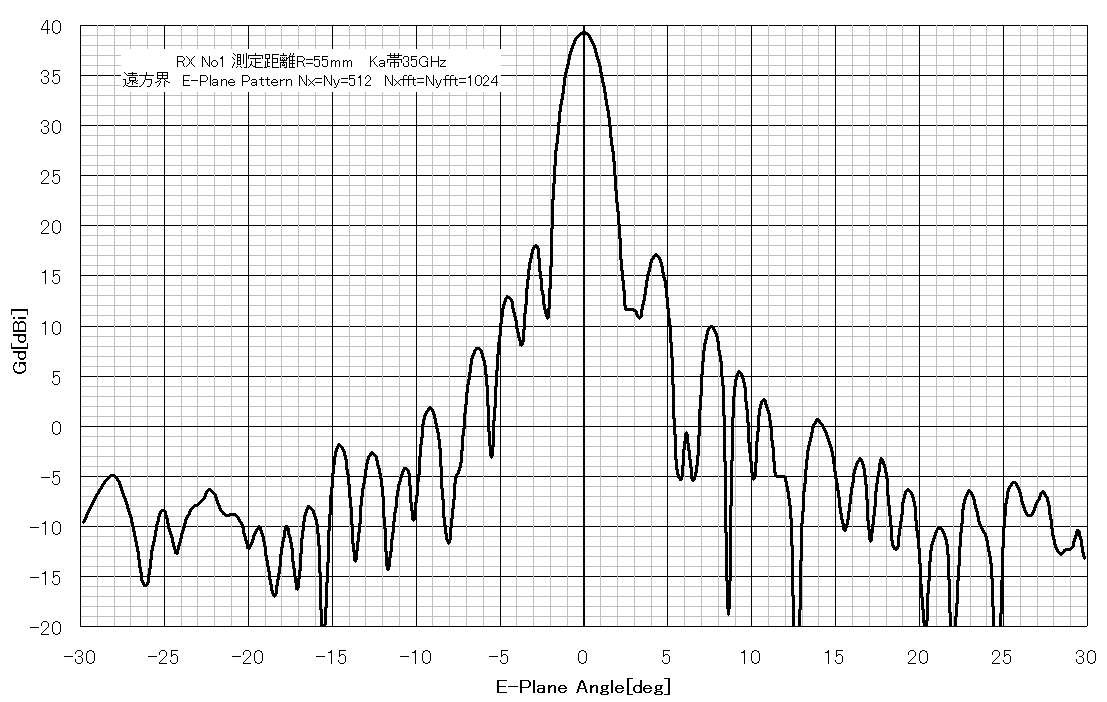

Typical antenna pattern

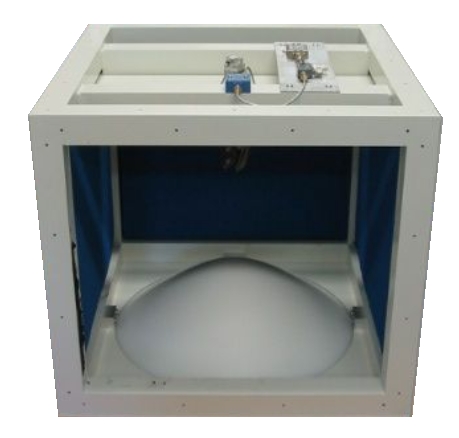

Lens support

MLA B OP
size of A part [mm] size of B part [mm] Comments (figure number, etc.)

Dielectric lens with metal waveguide

ML   F   WR   UG
  Lens effective diameter [mm]   Focal length [mm]   EIA metal waveguide   Frange type

EIA metal waveguide standard Frange type Frequency range
WR- 28 UG- 381 /U 26.5 ~ 40.0
22 383 33.0 50.0
19 383 /U-M 40.0 60.0
15 385 /U 50.0 75.0
12 387 60.0 90.0
10 387/U-M 75.0 110.0
8 90.0 140.0
6 110.0 170.0
5 140.0 220.0
* The case of connection to a dielectric waveguide is shown separately.
