Detector

Configuration

Model No.

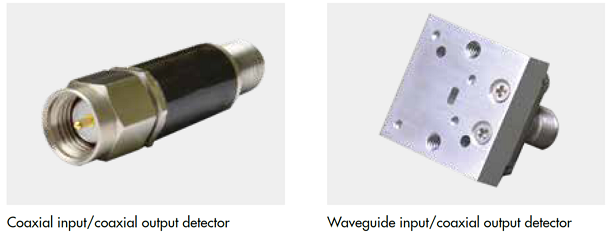

Coaxial input and coaxial output

Model No.	Frequency GHz	Sensitivity min. mV/mW*	Flatness Max. dB	Maximum output CWmW	Output	Input
MD-18A	DC~18	500 Rise 1nsec	±0.5	250	SMA(m)	SMA(f)
MD-40A	DC~40	500 Rise 1nsec	±1

Ex )
1．*: 1MΩ load time, the polarity is negative
2．zeroBias type

Waveguide input and coaxial output

Model No.		Frequency GHz			Sensitivity min. mV/mW*	Flatness Max. dB	Maximum output CWmW	Waveguide standard		Flange standard
DA	28	26.5	~	40	1000	±2	250	WR-	28	UG-	599	/U
	22	33		50	750				22		383
	19	40		60	750				19		383
	15	50		75	450				15		385
	12	60		90	250				12		387
	10	75		110	250				10		387

Ex )
1．*: 1MΩ load time, the polarity is negative
2．Output connector : SMA(f)
