Millimeterwave super-low-loss delay lines
Model No. MRS02
The use of dielectric waveguides allows for ultra-low-loss experiments without radiating radio waves into space during research, development, and shipping tests of millimeter-wave radars and altimeters.
As a result, data is accurate and measurements can be performed in a short time.
The standard connection is a waveguide flange type, but a lens antenna type is also available, which enables measurement while the radar or other antenna is still attached.
【Related Contents】
👉
Products Line-up of Milliler wave & Microwave Components / Devices
Model No.
Example
|
Frequency center GHz,
Width: ±10%
Within waveguide tube range |
|
|
Delay time: 88 maximum |
|
|
One end: Waveguide tube, For flange type |
|
The other end: For antenna |
Choose from * |
|
Choose from # |
DWD |
76 |
B |
- |
88 |
ns |
- |
10 |
- |
387 |
- |
Antenna |
Frequency range GHz |
Flange part |
Standard insertion loss dB/m |
Waveguide tube |
Flange (MIL, Standard) |
|
* |
|
# |
|
90.0-140.0 |
WR- |
8 |
UG- |
387 |
/U(円) |
1.3 |
75.0-110.0 |
WR- |
10 |
UG- |
387 |
/U(円) |
1.0 |
50.0-75.0 |
WR- |
15 |
UG- |
385 |
/U(円) |
0.8 |
33.0-50.0 |
WR- |
20 |
UG- |
383 |
/U(円) |
0.7 |

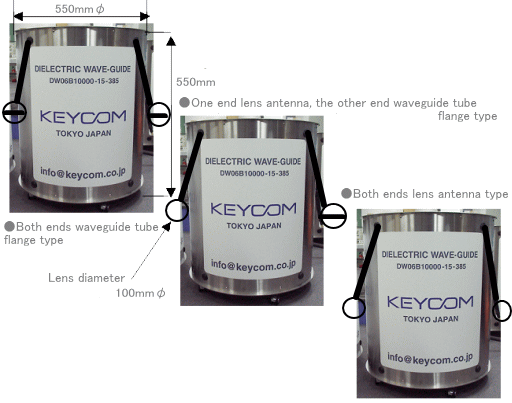

Configurations
