- Millimeter wave/Microwave Test Fixtures Microstrip Line/ Coplanar Line Type TRL Calibration Kit
Millimeter wave/Microwave Test Fixtures
Microstrip Line/ Coplanar Line Type
TRL Calibration Kit
Model No. MTF01
KEYCOM provides test fixtures up to 110GHz for the pattern performance testing between
edges of printed circuit board (edge type), the circuit testing in printed-circuit board (probe type).
The calibration kit is also ready for calibration of your vector network analyzer by "through" "open" and "line" mode.
Model No.
Test fixtures
| Model No. |
Type |
Frequency range |
Input / Output |
| MTFE-DC65CA |
Edge |
DC |
- |
65 |
GHz |
Coaxial |
| MTFE-DC110CA |
110 |
| MTFE-8595WA |
85 |
95 |
Waveguide |
| MTFP-DC40CA |
Probe |
DC |
40 |
Coaxial |
| MTFP-DC65CA |
65 |
| MTFP-DC110CA |
110 |
ex) The wave guide input of every band is prepared for.
Calibration kit
| TRL |
- |
________________________ |
MS or CO |
| |
|
fo (Center frequency) GHz
|
|
| Model No. |
Type |
Frequency range |
| OSL-40 |
GHz CO or MS |
Open,Short,Load |
DC- |
40 |
GHz |
| OSL-50 |
50 |
| TRL-50 |
GHz CO or MS |
TRL |
50 |
GHz range |
| TRL-60 |
60 |
| TRL-76 |
76 |
| TRL-94 |
94 |
| TRL-110 |
110 |
Configurations
Test fixtures
 |
|
|
Edge type
75-110GHz
Model No. : MTFE-75110WA |
|
Probe type
DC-40GHz
Model No. : MTFP-DC40CA |
Calibration kit
 |

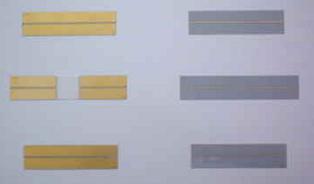

| Coplanar type (CO) Micro-strip line type (MS) |

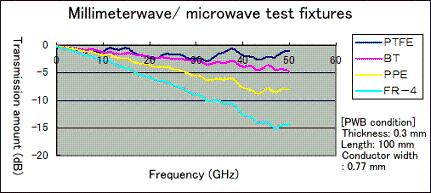

Sample data
Calibration and graphing software
| Model No. |
Details |
| DMP-3000 |
For Vector network analyzer |
| DMP-3100 |
For Scalar network analyzer |
| DMP-3200 |
For Synthesized sweeper |
