Calibration Kit for Cryogenic
[Coaxial type, Open/Short/Load]

Model No. MTF02-C

"Open" and "Short" have been adjusted the same distance from the edge of the connector.

【Related Contents】
👉 Products Line-up of Test fixture

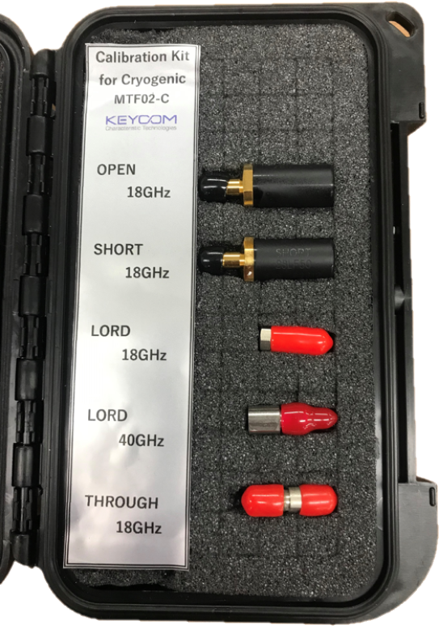

Product Appearance

Model No.

	Frequency (GHz)		Return loss (dB)	Connector	Model No.
Open	DC -	8	less than 1.15	SMA(f)	OPN08-SMA(f)1
		18			OPN18-SMA(f)1
		40		APC2.9(f)	OPN40-APC2.9(f)1
Short	DC -	8	less than 1.15	SMA(f)	SHT08-SMA(f)1
		18			SHT18-SMA(f)1
		40		APC2.9(f)	SHT40-APC2.9(f)1
Load 50Ω	DC -	8	less than 1.15	SMA(f)	LOD08-SMA(f)1
		18			LOD18-SMA(f)1
		40		APC2.9(f)	LOD40-APC2.9(f)1
Through 50Ω	DC -	8	less than 1.15	SMA(f)-SMA(m)	THR08-SMA(f)(m)1
		18			THR18-SMA(f)(m)1
		40		APC2.9(f)-APC2.9(m)	THR40-APC2.9(f)(m)1
