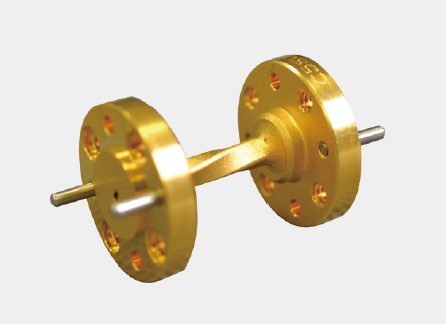

Metal Waveguide, Twisted Type

Model No. MWG01

Twist rectangular waveguide, the twist angle can be selected as ∠30, ∠45, ∠60 and ∠90.

【Related Contents】
👉Click here for the product list of Waveguide Circuit series
👉 Products Line-up of Milliler wave & Microwave Components / Devices

Model No. and specifications

Model No,
(Please see below)
- Twisting angle : ∠30, ∠45, ∠60, ∠90
*Please consult with KEYCOM representative for your specific requirement.

Frequency (GHz) Waveguide Flange type
(angular)
Model No. Flange type
(Circular)
Model No. Flange type (FXR) Model No. Lmm
18  - 26.5 WR- 42 UG 595 /U TW 42 S UG 425 /U TW 42 R 63.5
26.5 40 28 599 28 381 28 50.80
33 50 22 383 22
40 60 19 383 19
50 75 15 385 15 45.72
60 90 12 387 12
75 110 10 10 38.10
90 140 8 8 FXR TW 8 F 30.48
110 170 6 6 6
140 220 5 5 5 25.40
170 260 4 4 4
220 325 3 3 3
