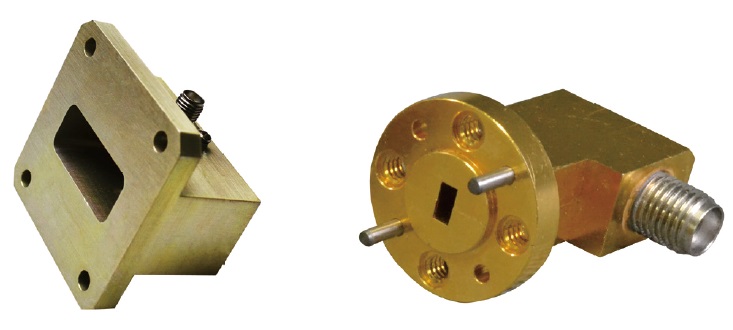

Coaxial-Waveguide Converter

Model No. MWG05
VSWR (maximum) : 1.25 (19.08dB)
  : 1.30 (17.69dB) above 26.5GHz
  : 1.50 (13.98dB) above 40GHz
【Related Contents】
👉Click here for the product list of Waveguide Circuit series

Model No.

Test fixtures

Frequency range Metal waveguide
EIA standard
Flange (cover)
MIL standard
Model No.(Coaxial)
APC-2.9
2.92mm connector
APC-2.4
2.4mm connector
APC-1.8
1.85mm connector
W
1mm connector
Female Male Female Male Female Male Female Male
75-110 WR10 UG-387/u             CW1012 CW1013
60-90 WR12 UG-387/u             CW1212 CW1213
50-75 WR15 UG-385/u             CW1512 CW1513
50-65 WR15 UG-385/u         CW1510 CW1511
40-60 WR19 UG-383/u         CW1910 CW1911
33-50 WR22 UG-383/u     CW228   CW2210
26.50-40.00 WR28 UG-599/u CW-286
22.00-33.00 WR34 UG-599/u CW346
18.00-26.50 WR42 UG-595/u CW426 CW427

Frequency range Metal waveguide
EIA standard
Flange (cover)
MIL standard
Model No. (Coaxial)
SMA connector N connector APC-7 connector
Female Male Female Male
12.40-18.00 WR62 UG-419/u CW621 CW622 CW623 CW624 CW185
9.84-15.00 WR75 UG-WR-75 CW751   CW753
8.20-12.40 WR90 UG-39/u CW901 CW902 CW903 CW904 CW125
7.05-10.00 WR112 UG-51/u CW1121   CW1123
5.85-8.20 WR137 UG-344/u CW1371   CW1373
4.9-7.05 WR159 CMR159 CW1591   CW1593
3.95-5.85 WR187 UG-149A/u CW1871   CW1873
2.60-3.95 WR284 UG-53/u CW2841   CW2843
1.7-2.6 WR430 CPR430F CW4301   CW4303
