PLL-Type VCO (Voltage-Controlled Oscillator)

Model No. PAH03

Voltage-Controlled Oscillator of PLL type.
Various types can be designed according to your equipments such as thin type and small type.
Customization also is available, please let us know your requirements.

【Related Contents】
 👉 Products Line-up of Milliler wave & Microwave Components / Devices

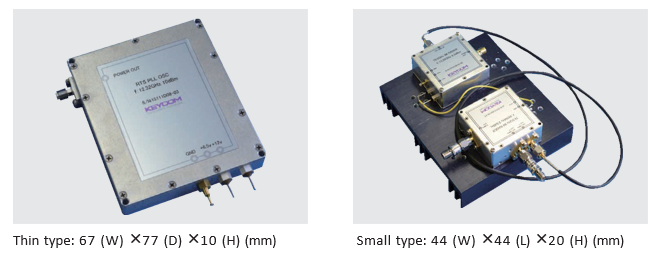

Product photos

Ordering Information(Please inform us of Model No., Part No., and any other requests.)

Part No. Reference Oscillation Frequency
 /Frequency Range
Phase Noise at 6 GHz Spurious Power Supply Output Size(mm)
PLLVCO-500kHz-6GHz-5dBm-10ppm-T 500 kHz ~ 6 GHz –100 dBc or less (at 100 kHz offset) –30 dBc or less +6.5 V, 500 mA or less At least 5 dBm 67 (W) × 77 (L) × 10 (H)
PLLVCO-500kHz-6GHz-5dBm-10ppm-S 500 kHz ~ 6 GHz –100 dBc or less (at 100 kHz offset) –30 dBc or less +6.5 V, 500 mA or less At least 5 dBm 44 (W) × 44 (L) × 20 (H)
PLLVCO-8GHz-15GHz-5dBm-10ppm-T 8 ~ 15 GHz –80 dBc or less (at 100 kHz offset) –30 dBc or less +6.5 V, 500 mA or less;+12 V,15 mA or less 0 ~ 5 dBm 67 (W) × 77 (L) × 10 (H)
PLLVCO-8GHz-15GHz-5dBm-10ppm-S 8 ~ 15 GHz –80 dBc or less (at 100 kHz offset) –30 dBc or less +6.5 V, 500 mA or less;+12 V,15 mA or less 0 ~ 5 dBm 67 (W) × 77 (L) × 20 (H)
