Pulse Doppler Radar

Model No. PAR73
feature
The speed of a moving object can be determined.
  1. Since it is a specified low-power radar, it does not require a radio license in Japan.
  2. It is possible to display received waves in quasi-real time.
  3. Received signals can be imported into a PC in CSV format for detailed data analysis.

Specifications

Frequency 24GHz range
Output 10mW
Detection distance 1m-100m
Distance accuracy ±1m
Speed 0-±100km/h

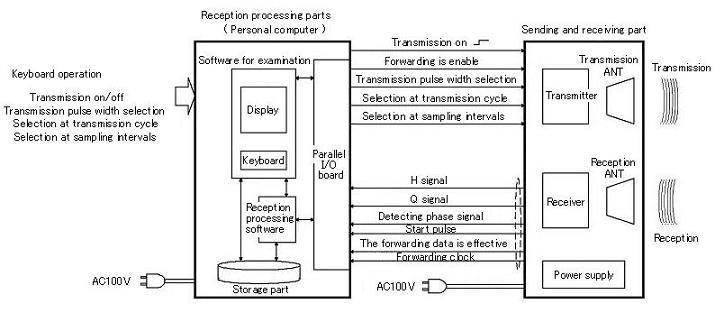

System diagram

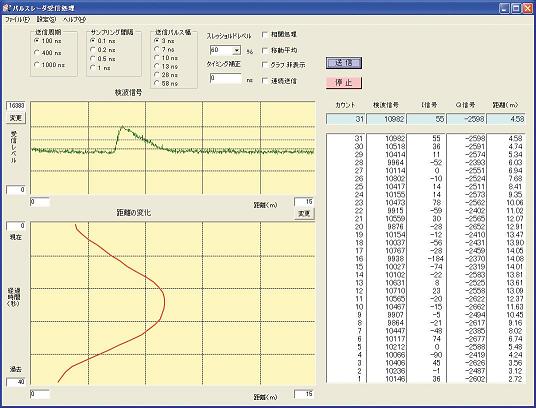

Data Example
