KEYCOM provides solutions in the 300 GHz to 1 μHz frequency range (SHF/EHF/MW/UHF/VHF/ULF).
We undertake designing, manufacturing and measuring. Please feel free to contact us.

Magnetic Property Characteristics (including magnetic permeability)
Measurement System (widely measurable in the range of 100kHz to 30GHz)

Model No. PER01
Wide measurement range from 100 kHz to 30 GHz, Eliminating the effect of dielectric constant to correspond well with simulation results!

1. Seamless and Wide Coverage of Bandwidth

The system seamlessly covers a wide bandwidth from 100 kHz to 30 GHz.

2. Measurable Value

The system can provide a wide range of frequency for measuring complex permeability μr' - jμr" (20~30 GHz is available in our measurement service), half-width ΔH, and ferromagnetic resonance relaxation coefficient α (100 MHz~10 GHz) of magnetic materials.

3. Compact device, Simple measurement

With our system, you can achieve a highly accurate measurement simply by making frequency sweep using a vector network analyzer, after setting a sample on the jig.

1) Clear measurement principle --- Reflection method
2) Simple operation method --- Field method, Remove method
3) Compact device --- free transport
If you need to measure only a small amount of sample or you have some specific requirement in measurement condition(e.g. frequency), please feel free to contact KEYCOM's measurement service center.

The measurement method has been standardized in IEC 60556-2006

【Related Contents】
👉Product Line-up of Magnetic Property / Permeability Measurement System

Acknowledgement

Award at ICF (April,2013)

At the 11th International Ferrite Conference (abbreviation: ICF11), the system have been awarded the ICF11 New Product & Novel Technology Award.

Presentation at international conference (May, 2008)

This method was presented at the following conference:
Inter mag 2008, 4-8 May Madrid, Shigeru Takeda, Hirosuke Suzuki " Measurement System of FMR Line width ΔHw using Shorted Stripline"

Papers

  1. S. Takeda and H. suzuki, "Wideband Measurement System of ΔHω using All Shielded Shorted Microstrip Line", J. Magn. Soc. Jpn., 33, 171-174, (2009)
  2. S. Takeda, S. Motomura, T. Hotchi, and H. Suzuki, “Permeability Measurement System up to 10GHz using All Shielded Shorted Microstrip Line”, Journal of the Japan Society of Powder and Powder Metallurgy, vol.61, (2014), No. S1, ppS303-S307
  3. S.Takeda, T.Hotch, S.Motomura, and H.Suzuki, “Theoretical Consideration on Short-& Open-circuited Transmission Lines for Permeability & Permittivity Measurement” ,Journal of the Magnetics Society of Japan Vol.39, No.3 2015
  4. S.Takeda, T.Hotch, S.Motomura, and H.Suzuki, "Permeability Measurements of Magnetic Thin Films using Shielded Short-Circuited Microstrip Lines“,.Magm.Soc.Jpn., 39, 227-231(2015)

Corresponding Standard

IEC　60556 Ad2・2(2016)
IEC/TR 63307 Ed.1.0:2020(en)

Specifications

Items Details
Frequency ・100kHz-30GHz for permeability
(from 20 - 30GHz - measurement service only)
・100MHz-10GHz for linewidth ΔH
μr' - jμr" Accuracy ±5% *when measured with optimum thickness. **Depending on VNA.
Specimen size see below
Mesurement temperature standard fixture：room temperature

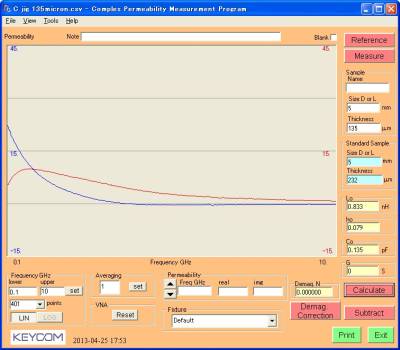

Measurement Display(Example)

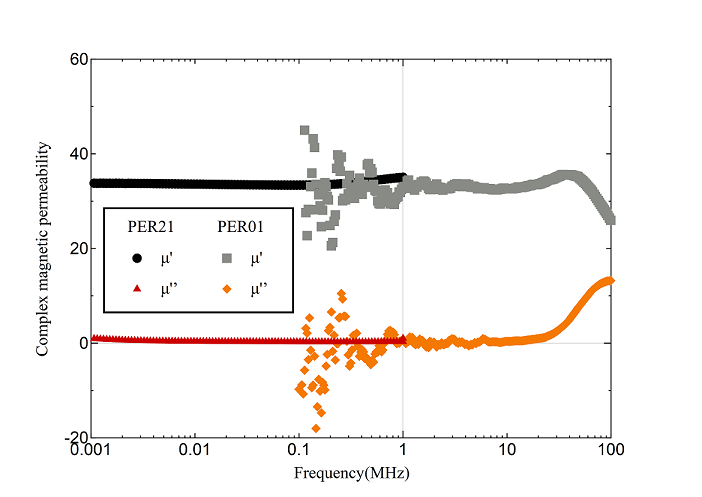

Measurement Data of PER21/PER01

Model number and Option Parts number

Model number

PER01 ( Basic set )

Model Number Name Specifications Frequency Specimen size
BS-01A Fixing stand
 Common fixing stand
M-5000F
 Magnetic field device for zero compensation 5000 Oe fixed

TRO-001D Measurement jig for permeability jig for toroidal specimen 100kHz-10GHz Approx. φ7mm out. diameter, φ3mm in. diameter
※thick specimen - more accurate result in low frequency can be expected, thin specimen - more accurate in high frequency.
CM06A-SMA(m)SMA(m)-
1000		 Cable assembly 18GHz coaxial cable assembly, 1m
GP-01 GPIB interface USB type GPIB interface
SS System Setup manual & training

Option Parts number

For measurement of complex permeability μr'- jμr''

Parts Number Name Specifications Frequency Specimen size Specimen thickness
M-3000F Magnetic field device for zero compensation 3000 Oe fixed
ST-001A Measurement jig for permeability jig for rectangular specimen(M-3000F is required) 100kHz-100MHz 10 x 30mm i.e.) 0.34mm maximum (depend on sample)
※thick specimen - more accurate result in low frequency can be expected, thin specimen - more accurate in high frequency.
ST-002B Measurement jig for permeability jig for rectangular specimen(M-3000F is required) 10MHz-1GHz 10 x 30mm i.e.) 0.34mm maximum (depend on sample)
※thick specimen - more accurate result in low frequency can be expected, thin specimen - more accurate in high frequency.
ST-003C Measurement jig for permeability jig for rectangular specimen(M-5000F is required) 1GHz-10GHz 5 x 16mm i.e.) 0.34mm maximum (depend on sample)
※thick specimen - more accurate result in low frequency can be expected, thin specimen - more accurate in high frequency.
ST-004D Measurement jig for permeability jig for rectangular specimen(M-5000F is required) 10GHz-20GHz 2 x 6mm i.e.) 0.2mm maximum (depend on sample)
※thick specimen - more accurate result in low frequency can be expected, thin specimen - more accurate in high frequency.
ST-005E2 Measurement jig for permeability jig for thin film specimen (M-5000F is required) 1GHz-20GHz
 2 x 6mm i.e.) 0.2mm maximum (depend on sample)
※thick specimen - more accurate result in low frequency can be expected, thin specimen - more accurate in high frequency.
DMP-PER01-01A Software for measurement Complex permeability measurement μr' - jμ"r with demagnetization correction
OP-DMP-PER01-03A OPTION Software for measurement Complex permeability measurement μr' - jμ"r for thin film specimen
VNA Vector network analyzer Available upon request.
Please request the model of your choice.
CP Windows PC

*Magnetic Property has geometric effect. Measurement for geometric effect also available.

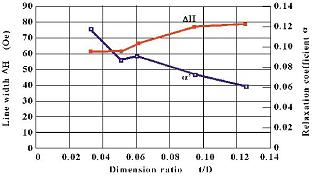

For measurement of ferromagnetic resonance linewidth ΔH, relaxation coefficient α.

Parts Number Name Specifications Frequency Specimen size Specimen thickness
M-130A Static magnetic field applying device 100-130 Oe ±10%
M-690A Static magnetic field applying device 560-690 Oe ±10%
M-1400A Static magnetic field applying device 1200-1400 Oe ±10%
M-2000A Static magnetic field applying device 1700-2000 Oe ±10%
M-2500A Static magnetic field applying device 2100-2500 Oe ±10%
M-4500A Static magnetic field applying device 3600-4500 Oe ±10%
SQ-001A Measurement jig for resonant line width ΔH Measurement jig for resonant line width ΔH 100MHz-10GHz 5 x 5mm i.e.) 0.25mm maximum (depend on sample)
DMP-PER01-02A Softwere for measurement For ferromagnetic resonance linewidth ΔH, relaxation coefficient α

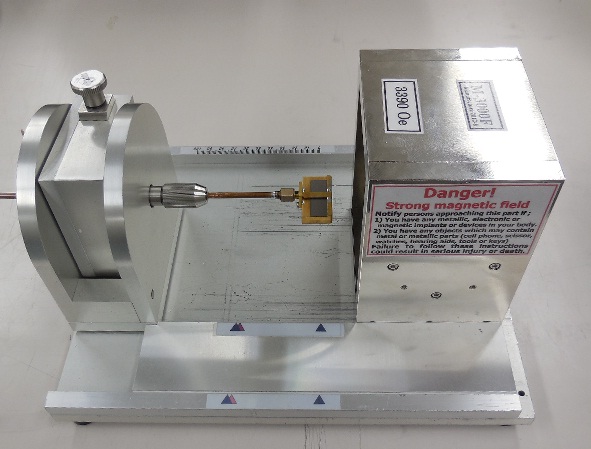

Configurations

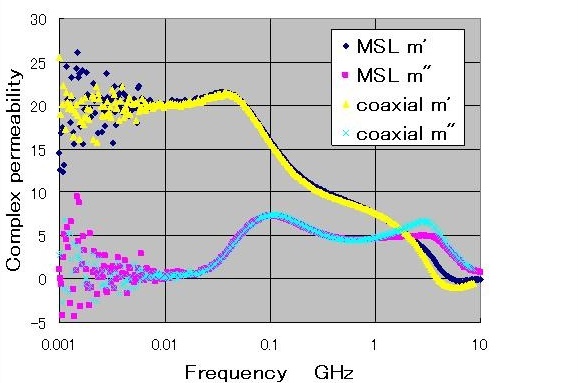

Data sample

Complex permeability of NSS toroidal core with φ7mm x φ3mm

Complex permeability of NSS rectangular core with 5 x 16mm

Permeability comparison between the toroidal core's result and the demagnetization corrected result of rectangular core

Ordering Information

Please send us any questions or requests by email(info@keycom.co.jp)or telephone(+81-3-5950-3101).
Our seles representative will answer to your questions and will propose an optimal system to you.
