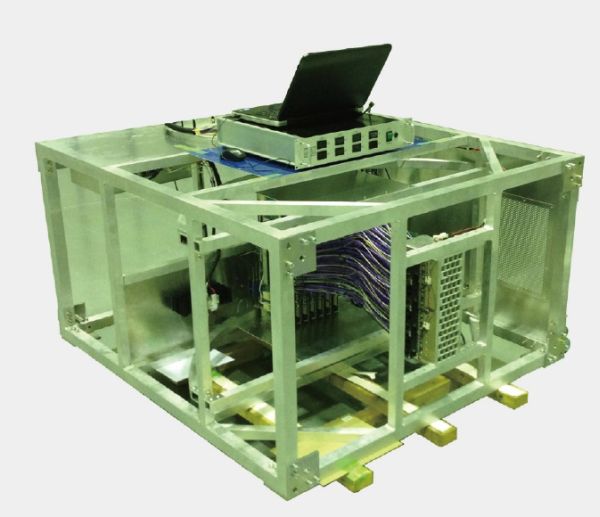

Receiver for 94GHz Phased-Array-Type Weather Radar

Model No. RAD73

Used for the checkup of the cloud radar mounted on satellite EarthCARE
(Earth Clouds, Aerosols, and Radiation Explorer).
Configurable array antenna (e.g., zigzag confi guration)
Phased array receiver for a Millimeter-Wave (94 GHz band) weather radar.
The grating lobe of the electron scanning direction can be mitigated by changing the confi guration.
The gain and phase shifting are accurately adjusted for each RF receiver module so that each RF module does not incur a phase shift.
Therefore, the phase shifter is installed for each fan beam (linear array).

Specifications

Frequency	94.09GHz
Antenna method	Phased array: 16 x 4 (full installatio: 16 x 16)
Polarized wave	Linearly polarized wave
Beam width	0.6° or less
Antenna gain	46dBi or more
Scan range	±4.5° or larger
Side lobe level	–10dB or less (grating lobe exclueded for the 16 x 16 configuration)
Reception dynamic range	60dB or larger

Configuration

Provided for National Institute of Information and Communications Technology
(Independent Administrative Agency)

Ordering information

Please send us any questions or requests by email (info@keycom.co.jp) or telephone (+81 -3 -5950 -3101), Our Sales representative will answer to your questions and will propose an appropriate system to you.
