Bird strike Preservation Radar

Model No. RAD80

To drastically solve bird strikes by rare raptors and other birds of prey (Note 1), which are a serious problem in wind power generation projects,

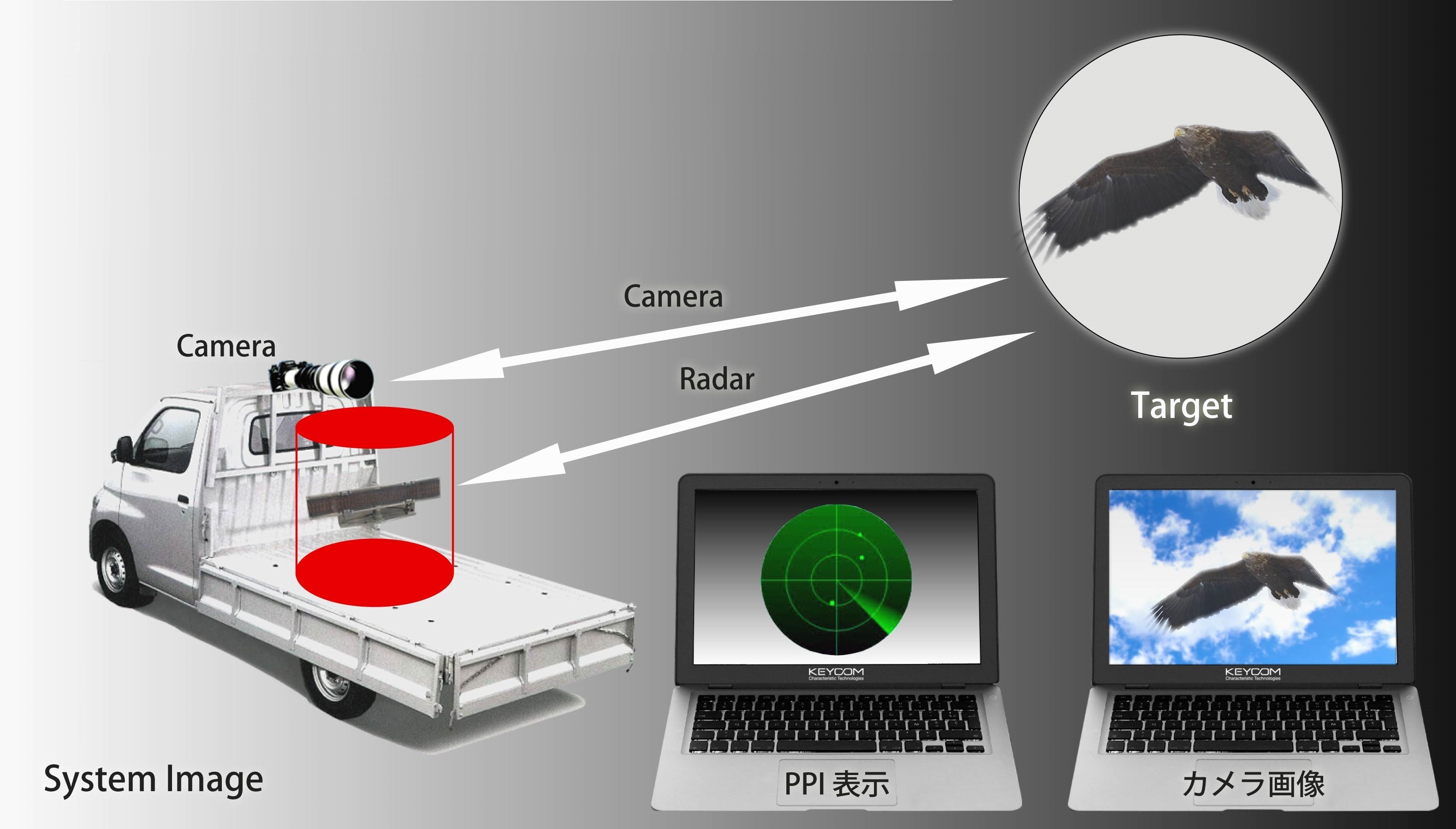

We have developed and demonstrated radar technology that captures the flight coordinates, flight speed, direction, etc. of birds to understand their flight patterns (Note 2).

【Notes】

Note 1 : Rare raptors include white-tailed eagles, Steller's sea eagles, golden eagles, and bear hawks.
Note 2 : This technology was commissioned by the Ministry of the Environment under the "Development and Demonstration Project for Enhanced CO2 Emission Reduction Measures
(Development and demonstration of bird strike countermeasure system using 3D radar technology)" by the Ministry of the Environment of Japan.
Keycom Corporation,X Urban Research Institute Co,X Urban Research Institute, Inc. and Asia Kosoku Corporation, etc., under the commission of the Ministry of the Environment of Japan.
(Assumed three-year period from FY 2014 to FY 2016)

Features

3D radar that can also measure the flight altitude of birds
After supplementation, switch to tracking mode to determine flight patterns. (Used for different types)
Advanced clutter suppression performance
Radar data can be acquired according to the flapping of birds' wings

Specifications

Item	Detail
resolution	Distance resolution : 15 m (bandwidth equivalent) Directional resolution: 2.2 degrees (Angular accuracy: 0.2 degrees rms) Elevation angle resolution: 25 degrees (Angular measurement accuracy: 0.5 degrees rms)
data rate	4 sec/times

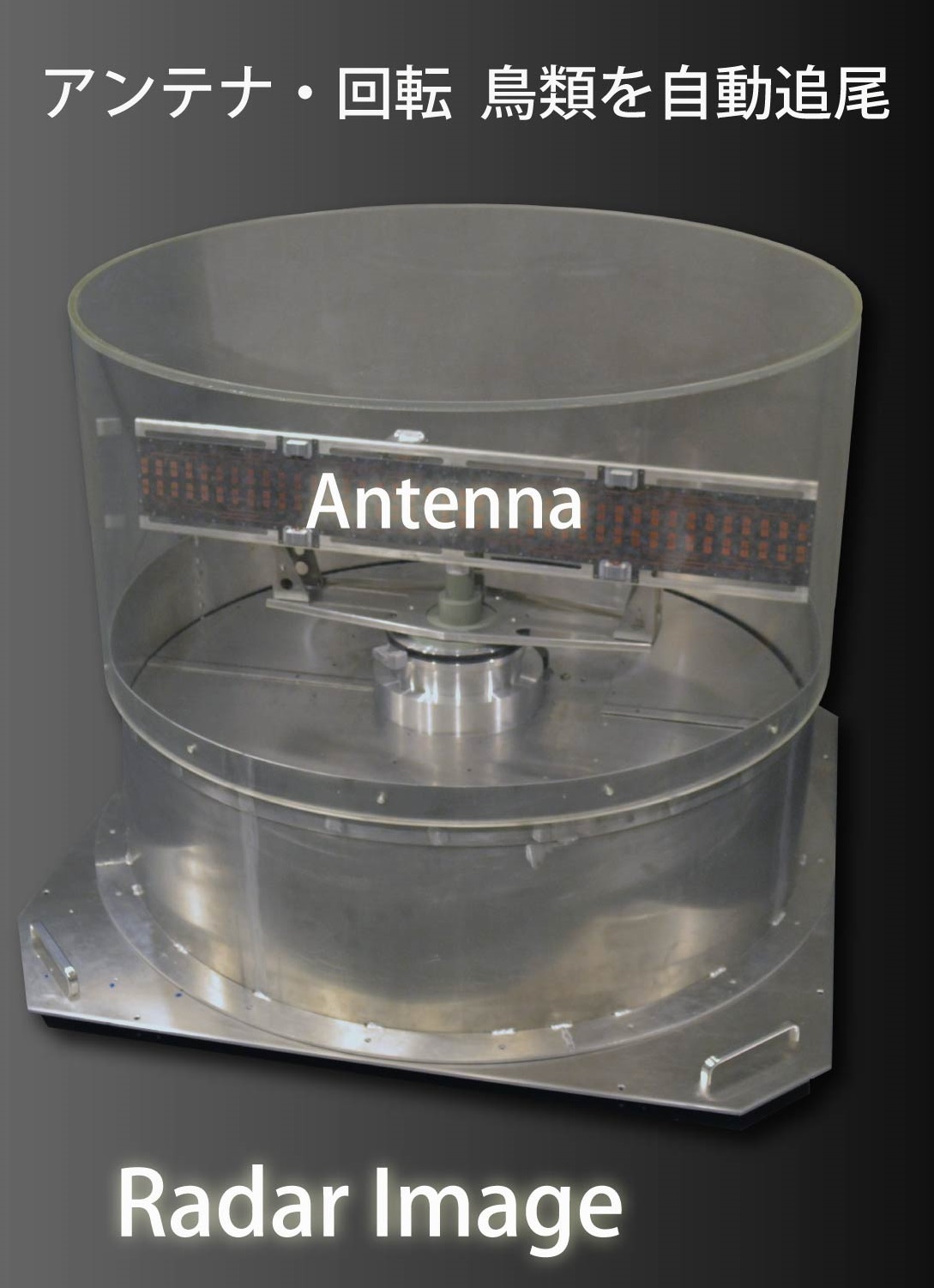

radar method	Pulse Doppler method with mechanical rotating antenna specification
Frequency	X band
Transmission power	320W
Clutter suppression performance	80 dB or more for ground clutter
Acquisition/display data	PPI scoping display of targets Target movement vector Target RCS Rating Map display of observation area (background image) Identification of bird species by mode of identification Save/playback incoming data
